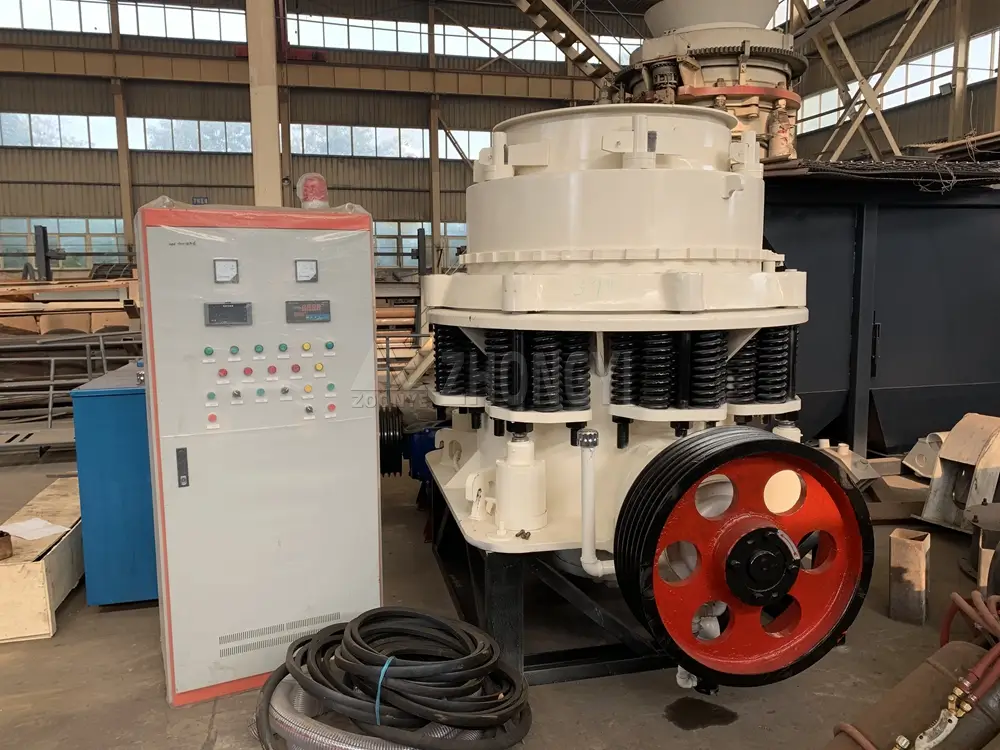

What is a Spring Cone Crusher?
A Spring Cone Crusher, also known as a spring-type cone crusher or cone crushing machine, is a traditional and reliable crushing equipment used for secondary and fine crushing of medium-hard materials in mining, quarrying, and aggregate production. It is commonly installed after jaw crushers and works with vibrating screens, feeders, and belt conveyors in complete crushing plants. With a simple structure, stable operation, and low maintenance requirements, it is widely used for processing materials such as granite, basalt, limestone, and metal ores
Working Principle

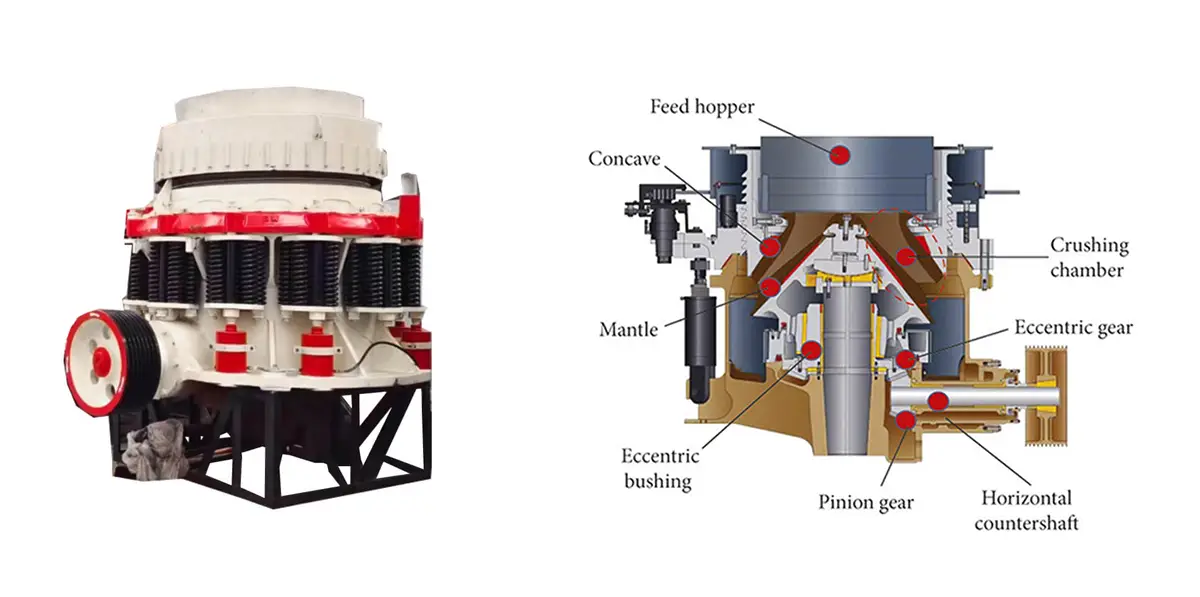

The spring cone crusher operates based on a continuous compressive crushing mechanism driven by an eccentric motion. Understanding how does a spring cone crusher work helps users optimize performance and ensure efficient material processing.
Eccentric shaft drive
The motor drives the eccentric shaft to rotate, causing the mantle (crushing cone) to perform a circular swing motion. This movement creates a continuously changing crushing chamber, enabling efficient material compression and throughput.
Mantle and concave interaction
Materials are fed into the space between the mantle (moving cone) and concave (fixed bowl liner). Through repeated squeezing and bending, the material is gradually reduced in size until it reaches the desired discharge specification.

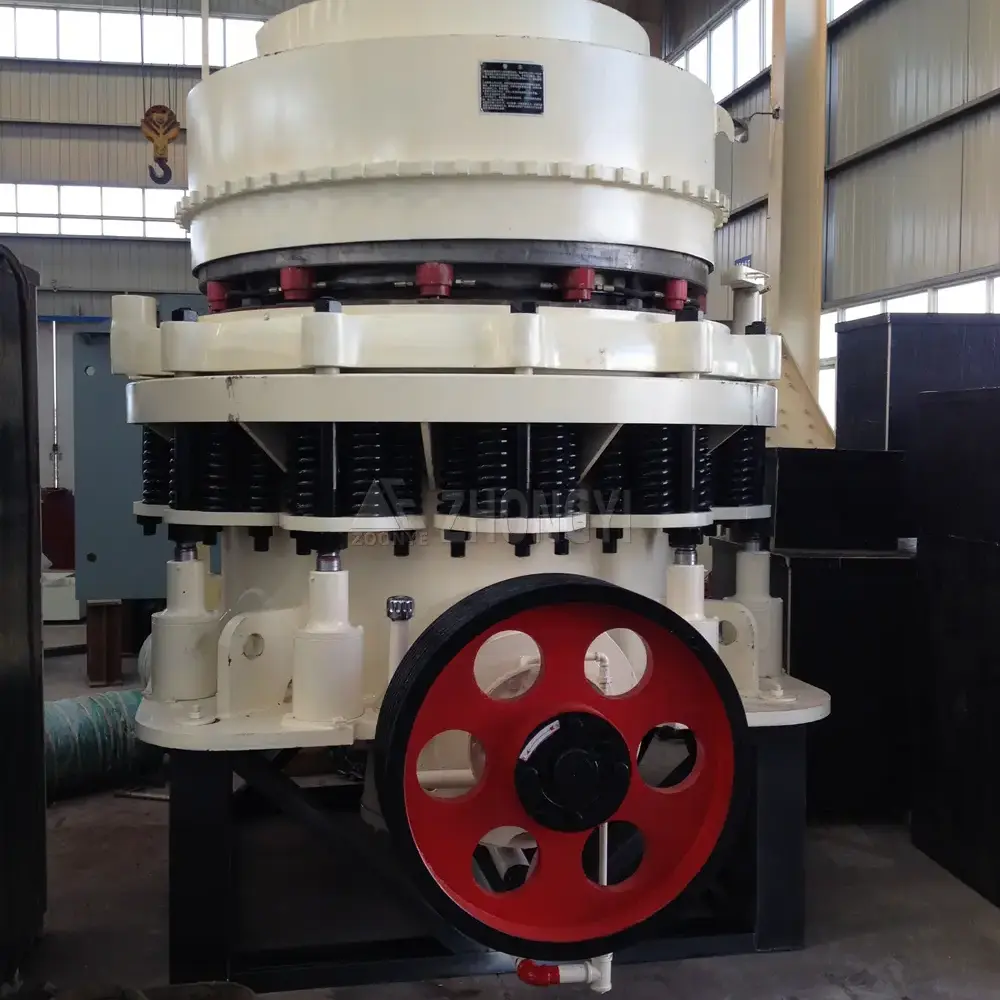

Spring overload protection system
When uncrushable materials enter the chamber, the spring system compresses to enlarge the discharge opening and release excess pressure. This protects the crusher from damage and ensures stable, safe operation.

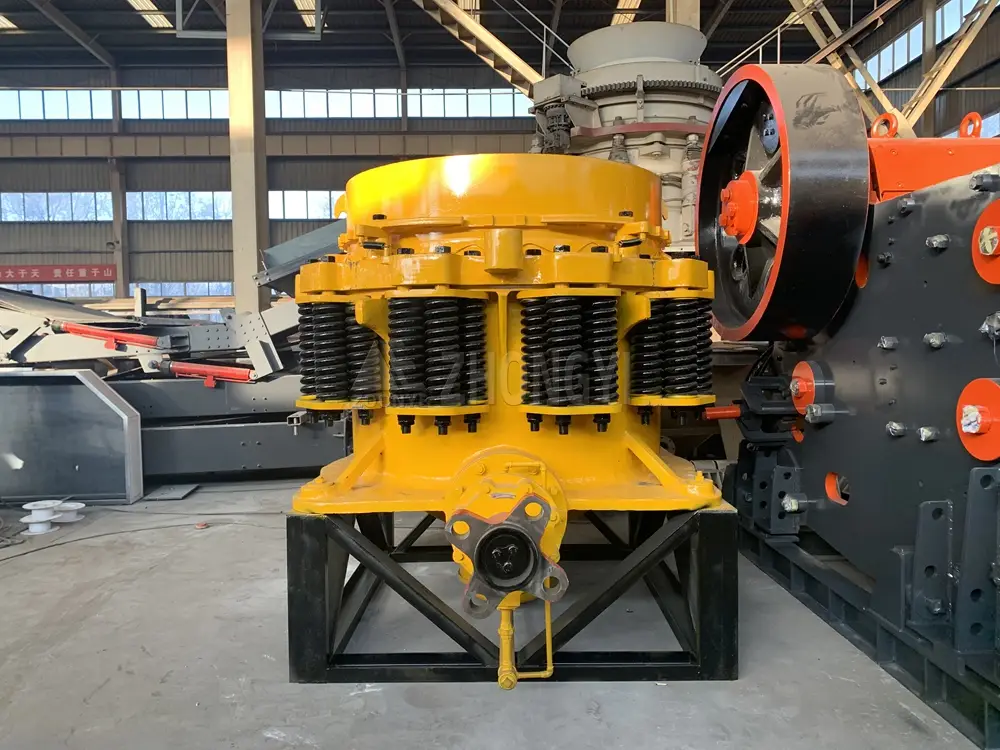

Spring Cone Crusher Specifications
The following specifications outline the typical performance parameters of spring cone crushers. These metrics help users quickly evaluate equipment capacity, size compatibility, and power requirements for different crushing applications.
| Model | Feeding Size (mm / in) | Output Size (mm / in) | Capacity (t/h) | Power (kW / HP) |
| PYB-600 | ≤65 mm / ≤2.6 in | 12–25 mm / 0.5–1 in | 12–25 | 30 kW / 40 HP |
| PYD-900 | ≤50 mm / ≤2 in | 3–13 mm / 0.1–0.5 in | 15–50 | 55 kW / 75 HP |
| PYB-1200 | ≤145 mm / ≤5.7 in | 20–50 mm / 0.8–2 in | 110–168 | 110 kW / 150 HP |
| PYD-1750 | ≤85 mm / ≤3.3 in | 5–15 mm / 0.2–0.6 in | 75–230 | 160 kW / 215 HP |
| PYB-2200 | ≤300 mm / ≤11.8 in | 30–60 mm / 1.2–2.4 in | 280–700 | 280 kW / 375 HP |
Flexible configuration: Different models are available to match varying feeding sizes, discharge requirements, and production capacities.
Standardized global units: All specifications are provided in both metric (mm, kW) and international units (inches, horsepower) to support global project planning and equipment selection.
Scalable performance: From small-scale operations to large industrial production lines, users can select the appropriate model to optimize efficiency and investment return.

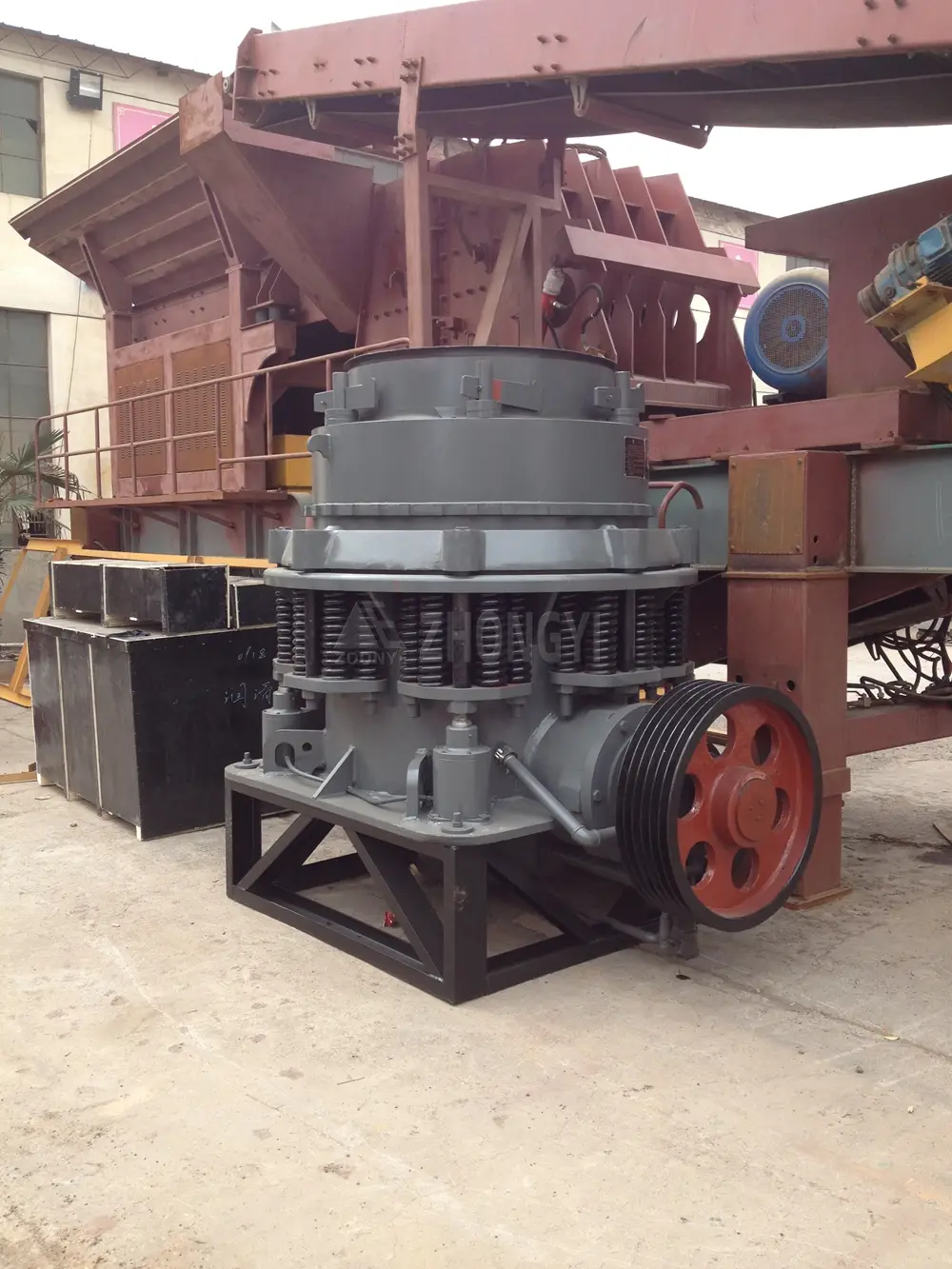

Advantages of Spring Cone Crusher
The spring cone crusher delivers efficient and cost-effective performance, combining a robust structure, reliable protection system, and flexible operation for medium to hard material processing across industries.
Applications
Spring cone crushers are used in various industries for efficiently crushing medium to hard materials. Their versatility, stable performance, and economy make them a reliable choice for primary and secondary processing stages.
Overseas Aggregate Plant Case

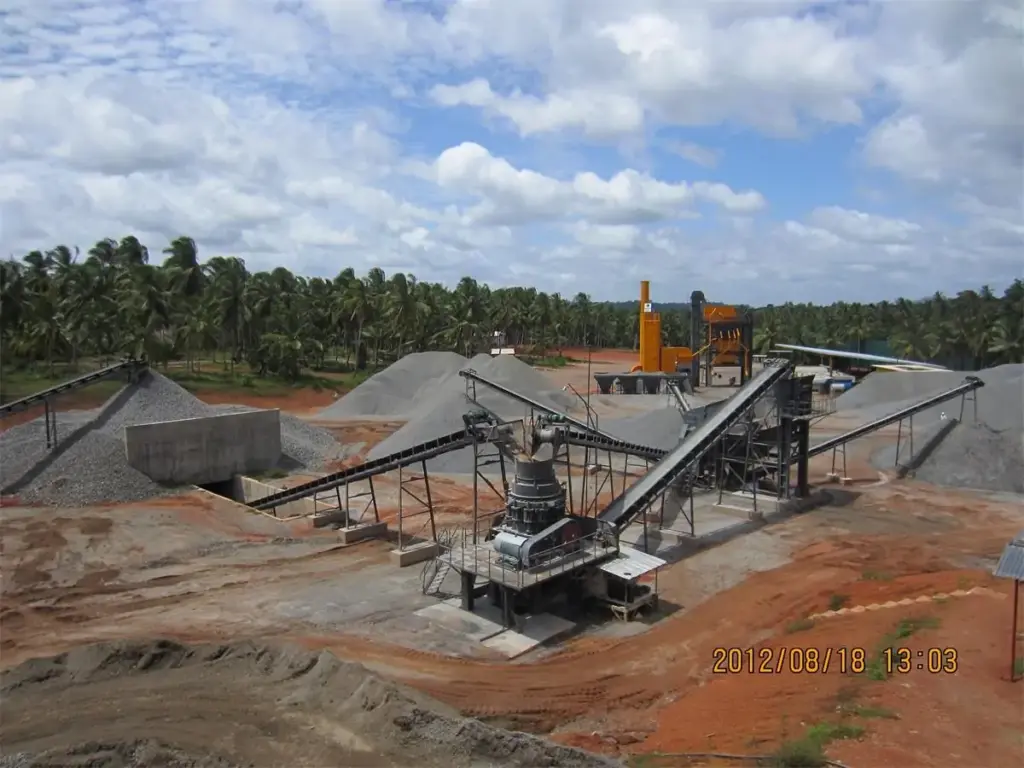

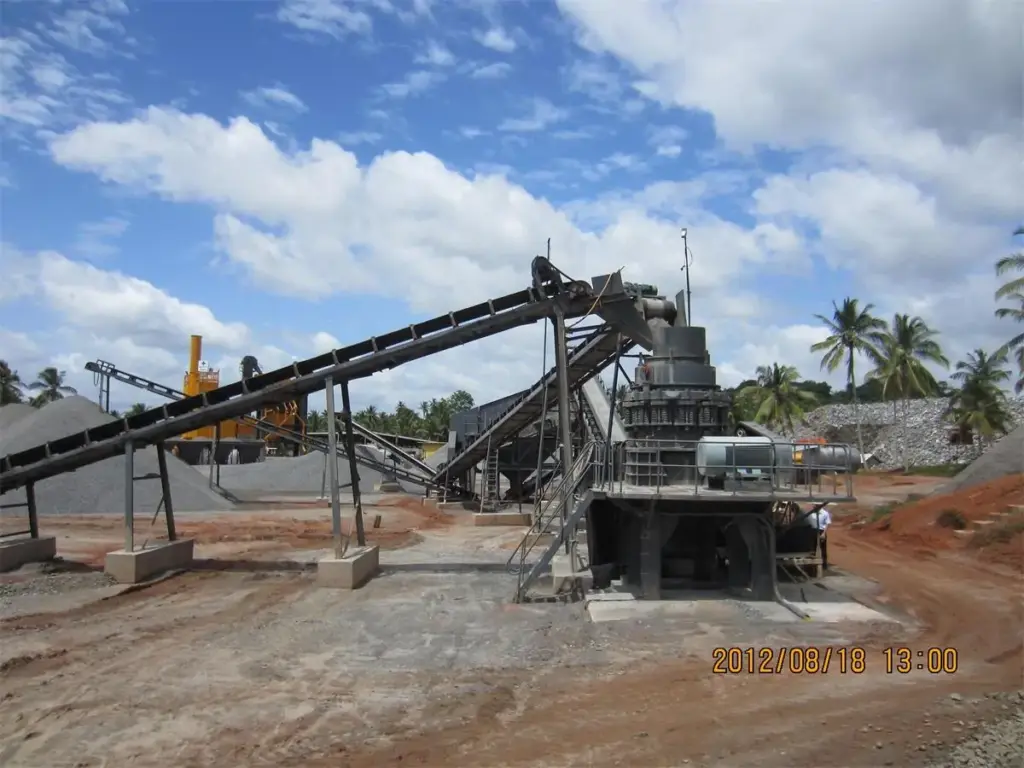

For this tropical quarry project, we provided customized configuration suggestions and supplied Zhongyi spring cone crushers as the core fine-crushing equipment of the whole production line. Matched with primary heavy hammer crushers, belt conveyors and vibrating screens, a closed-loop aggregate crushing system was built.
Equipped with reliable spring overload protection, Zhongyi cone crushers stably process hard stones under high-temperature, dusty tropical conditions. The adjustable discharge size meets diverse aggregate specifications for local infrastructure construction. The entire production line runs steadily with an hourly output of 350 tons, featuring low maintenance cost and uniform finished grain shape, bringing lasting economic benefits for this overseas customer.

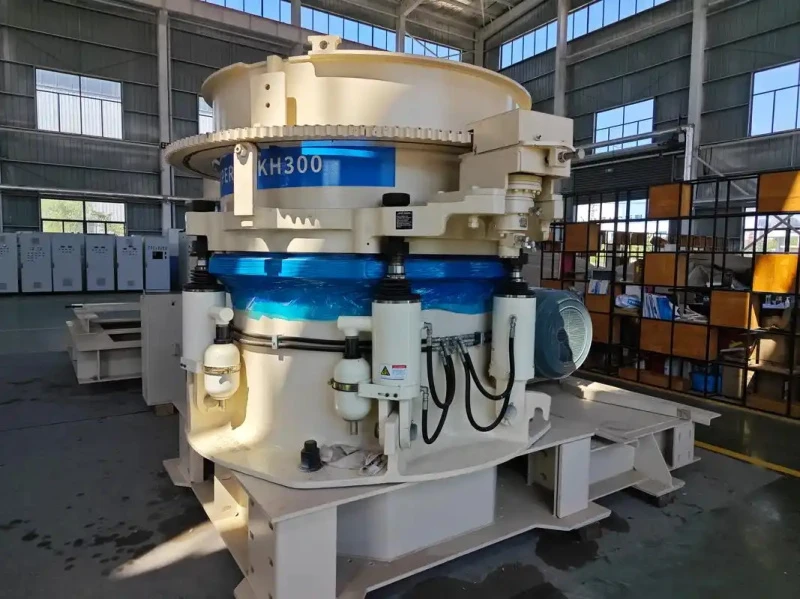

Spring Cone Crusher vs Hydraulic Cone Crusher
Spring Cone Crusher and Hydraulic Cone Crusher have similar crushing principles, but they differ significantly in structural design, adjustment methods, automation, and operating efficiency. Spring cone crushers feature a simpler structure with lower investment costs, making them suitable for small and medium-scale crushing plants. Hydraulic cone crushers adopt advanced hydraulic systems, offering automatic adjustment, overload protection, higher crushing efficiency, and better adaptability for large-scale mining and aggregate production.
| Comparison Item | Spring Cone Crusher | Hydraulic Cone Crusher |
| Structure Design | Simple structure with spring overload protection system | Advanced hydraulic system with integrated control and protection functions |
| Adjustment Method | Manual adjustment of discharge opening | Hydraulic adjustment for faster and more precise control |
| Overload Protection | Spring system provides basic protection against uncrushable materials | Hydraulic system automatically releases and resets during overload |
| Crushing Efficiency | Suitable for general crushing applications with moderate capacity requirements | Higher efficiency with improved crushing capacity and particle shape |
| Automation Level | Lower automation, requires more manual operation | Higher automation with intelligent control options |
| Maintenance | Simple maintenance and lower replacement costs | Easier operation but requires hydraulic system maintenance |
| Operating Cost | Lower initial investment and economical operation | Higher initial investment but better long-term efficiency |
| Application Scale | Small and medium crushing plants, quarrying, secondary crushing | Large mines, high-capacity aggregate plants, complex crushing operations |
| Feed Size & Capacity | Suitable for medium feed sizes and standard production requirements | Handles larger feed sizes and higher production demands |
| Product Advantages | Reliable, durable, and cost-effective | High efficiency, stable performance, and advanced protection |
