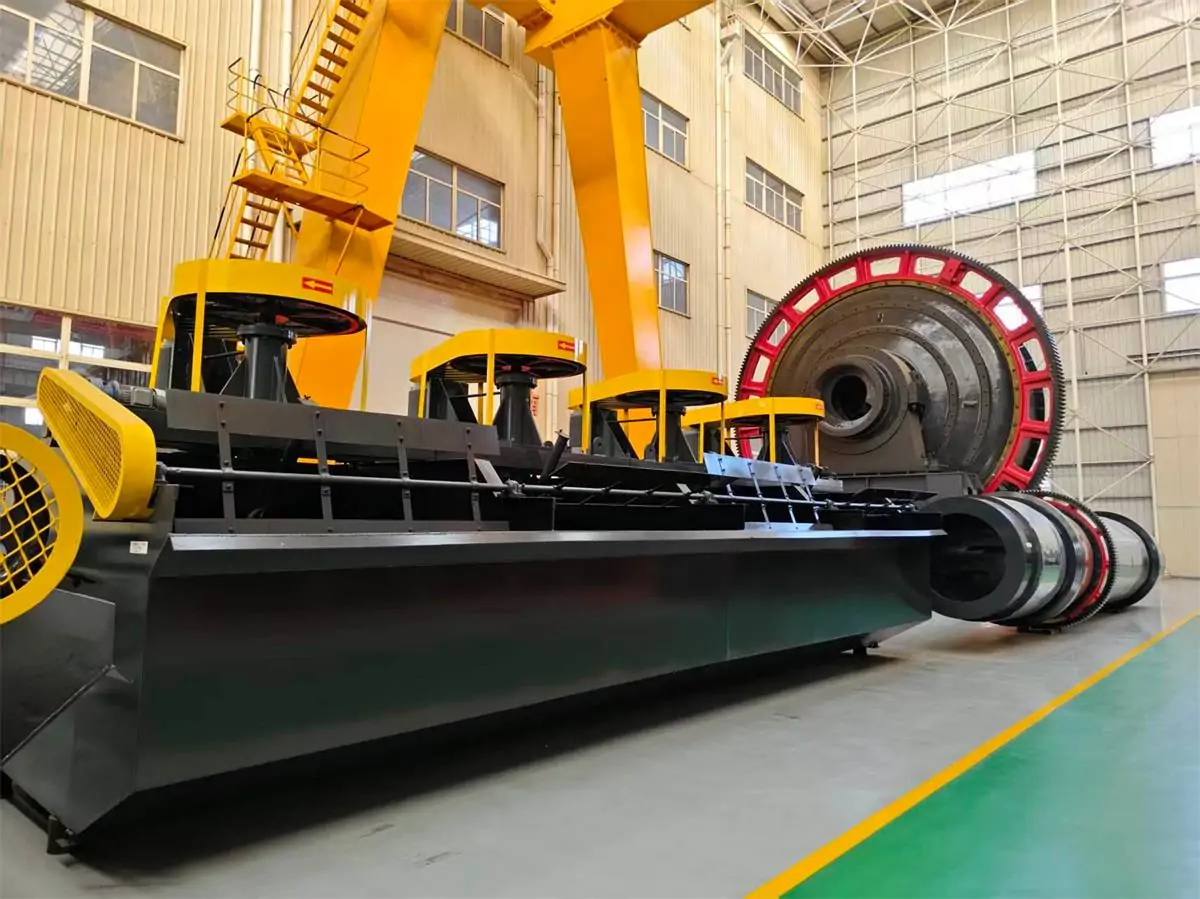

What Is a BF Flotation Cell?
A BF Flotation Cell (BF Flotation Machine) is a self-aspirated mechanical flotation machine used for mineral separation through froth flotation. It consists of a tank body, impeller, stator, transmission system and air intake system. During operation, the rotating impeller generates negative pressure, drawing air and slurry into the mixing chamber to create a uniform air-slurry mixture.
The fine bubbles produced during mixing attach to target mineral particles and rise to the surface to form froth, while unwanted materials remain in the slurry. By combining air suction, slurry agitation and flotation functions in one unit, the BF flotation cell enables stable operation in various mineral beneficiation processes.If you’d like to learn more, click on “Types of Flotation Cells for Mineral Processing.”
How Does BF Flotation Cell Work?
A BF Flotation Cell works by using impeller-driven mixing to combine slurry, air and flotation reagents, allowing valuable minerals to attach to bubbles and separate from the slurry. The flotation process mainly includes slurry mixing, bubble mineralization and froth recovery.If you want to learn more, click “What is a Flotation Cell?”
Slurry Mixing and Air Intake
The impeller creates a suction effect during rotation, drawing air through the air intake system and mixing it with the slurry inside the cell. The strong agitation ensures uniform contact between air, slurry and flotation reagents.
Bubble Generation and Mineral Attachment
The air is dispersed into fine bubbles by the impeller. Target mineral particles attach to the bubbles under the action of flotation reagents and rise with the bubbles to the froth layer, while gangue particles remain in the slurry.
Froth Collection and Mineral Recovery
The mineralized froth overflows or is removed from the surface as concentrate, while the remaining slurry is discharged as tailings. This continuous process enables the recovery of valuable minerals in flotation circuits.
Main Components of BF Flotation Cell
A BF Flotation Cell is composed of several key components designed for slurry circulation, air dispersion and flotation operation. The main components include the impeller and stator system, tank body, transmission system and air intake system.
Specifications
BF Flotation Cell is available in multiple models with different capacities to suit various mineral processing requirements. The following table provides key technical specifications, including effective volume, dimensions, impeller parameters, motor power and processing capacity for equipment selection and project planning.
| Model | Effective Volume (m³) | Dimensions L×W×H (mm) | Impeller Diameter (mm) | Impeller Peripheral Speed (m/s) | Air Intake Volume (m³/m²·min) | Motor Model | Motor Power (kW) | Processing Capacity (m³/min) | Single Cell Weight (t) |
| BF-0.37 | 0.37 | 740×740×750 | 286 | 7.2 | 0.9–1.05 | Y90L-4 | 1.5 | 0.2–0.4 | 0.47 |
| BF-0.65 | 0.65 | 850×950×900 | 300 | 7.35 | 0.9–1.10 | Y132S-6 | 3 | 0.3–0.7 | 0.932 |
| BF-1.2 | 1.2 | 1050×1150×1100 | 450 | 7.02 | 0.9–1.10 | Y132M2-6 | 5.5 | 0.6–1.2 | 1.37 |
| BF-2.0 | 2 | 1400×1450×1120 | 500 | 7.5 | 0.9–1.10 | Y160M-6 | 7.5 | 1.0–2.0 | 1.75 |
| BF-2.8 | 2.8 | 1650×1650×1150 | 550 | 8.06 | 0.9–1.10 | Y180L-8 | 11 | 1.4–3.0 | 2.13 |
| BF-4.0 | 4 | 1900×2000×1200 | 650 | 8 | 0.9–1.10 | Y200L-8 | 15 | 2.4–4.0 | 2.585 |
| BF-6.0 | 6 | 2200×2350×1300 | 700 | 7.5 | 0.9–1.10 | Y225S-8 | 18.5 | 3.0–6.0 | 3.3 |
| BF-8.0 | 8 | 2250×2850×1400 | 760 | 7.5 | 0.9–1.10 | Y225M-8 | 22 | 4.0–8.0 | 4.13 |
| BF-10 | 10 | 2250×2850×1700 | 760 | 7.52 | 0.9–1.10 | Y225M-8 | 22 | 5.0–10 | 4.5 |
| BF-16 | 16 | 2850×3800×1700 | 850 | 8.7 | 0.9–1.10 | Y280S-8 | 37 | 8.0–16 | 8.32 |
| BF-20 | 20 | 2850×3800×2000 | 850 | 8.7 | 0.9–1.10 | Y280M-8 | 45 | 10.0–20 | 8.67 |
| BF-24 | 24 | 3150×4150×2000 | 920 | 8.7 | 0.9–1.10 | Y280M-8 | 45 | 12.0–24 | 8.97 |
Advantages
BF Flotation Cell offers reliable flotation performance, energy-efficient operation and flexible application for various mineral processing plants. Its main advantages include high recovery efficiency, stable operation and easy maintenance.
Applications
BF Flotation Cell is widely applied in metal and non-metal mineral processing plants for roughing, scavenging and cleaning stages. Its optimized slurry circulation, air dispersion capability and flexible model selection allow it to adapt to different ore characteristics and flotation processes.
BF Flotation Cell vs Other Flotation Machines
Selecting the right flotation equipment depends on ore characteristics, processing capacity and plant conditions. The following comparison shows how BF Flotation Cell differs from other flotation machines in structure, operating performance and application suitability.
Practical Equipment Comparison
| Comparison Feature | BF Flotation Cell | SF Flotation Cell | XCF/KYF Flotation Cell | Flotation Column |
| Air Intake | Self-air-suction | Self-air-suction | External air supply | External air supply |
| Impeller / Structure | Closed double-cone impeller | Double-sided impeller | Impeller and stator system | No mechanical impeller |
| Energy Consumption | Low | Medium | Low | Lowest |
| Slurry Circulation | Strong | Moderate | Good | Suitable for fine particles |
| Maintenance | Easy | Moderate | Requires air system maintenance | Requires sparger maintenance |
| Installation Layout | Horizontal arrangement | Flexible layout | Large flotation circuits | Cleaner flotation circuits |
| Typical Applications | Copper, gold, lead-zinc, non-metallic minerals | General mineral processing | Large-scale flotation plants | Fine particle separation |
How to Select the Right BF Flotation Cell?
Selecting the right BF Flotation Cell depends on ore properties, processing capacity and flotation circuit requirements. Zhongyi Mining provides customized flotation solutions to match different mineral processing conditions and plant requirements.
Ore Characteristics
Mineral composition, liberation size, particle size distribution and ore grade are critical factors in BF Flotation Cell selection. The equipment should be configured according to feed characteristics, mineral floatability and separation objectives to achieve optimal flotation performance.
Processing Capacity
Processing capacity is a key factor in determining flotation cell volume, the number of cells and circuit configuration. The BF Flotation Cell should be selected according to plant throughput, slurry flow rate and flotation residence time to ensure proper mineral recovery and stable operation.
Flotation Process Requirements
The selection of BF Flotation Cell should consider the role of each flotation stage, including roughing, cleaning and scavenging operations. Factors such as recovery objectives, concentrate quality requirements and flotation circuit configuration should be evaluated to determine the appropriate cell volume, quantity and arrangement.
Operating Cost and Maintenance Requirements
Selection should also consider energy consumption, wear parts, maintenance requirements, and spare parts supply. Easy inspection and replacement of key components help reduce downtime and improve long-term operating efficiency.
Why Choose Zhongyi?
Since 2010, Zhongyi Mining has focused on the manufacturing of mining and mineral processing equipment, supporting metal and non-metal beneficiation projects worldwide. With practical experience in flotation applications, our engineering team helps customers select suitable BF Flotation Cell models and develop configurations based on ore characteristics, processing capacity and plant conditions.
Backed by three manufacturing bases and advanced production facilities, we ensure reliable equipment manufacturing through strict quality control and professional production processes. We support customers throughout the project lifecycle, including equipment delivery, installation guidance and technical service, helping achieve stable and efficient operation in mineral processing plants.
Request a Customized Solution
Partner with Zhongyi for BF Flotation Cell solutions featuring efficient air dispersion, stable mineral recovery and flexible configuration for various beneficiation plants, including copper, gold, lead-zinc and non-metallic mineral processing projects.

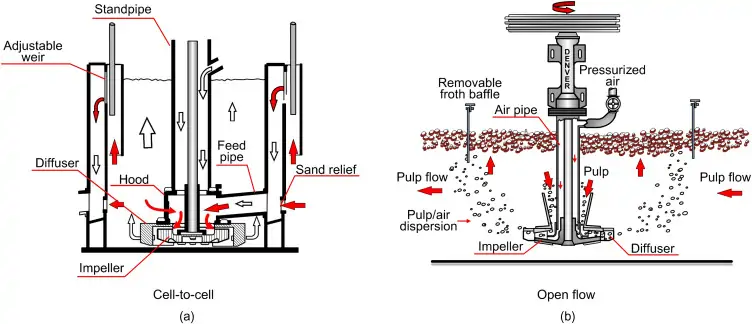

Custom Flotation Cell Solutions
Each mineral processing project has unique requirements depending on ore characteristics, production capacity and flotation circuit design. We provide customized BF Flotation Cell solutions covering equipment selection, circuit configuration and process optimization. Whether for a single flotation unit or a complete beneficiation project, our engineering team can recommend suitable equipment configurations based on actual operating conditions.
For complete plant planning, explore our [Mineral Processing Plant Solutions] to learn more about integrated equipment configurations and project support. Contact us to discuss your ore properties, processing requirements and plant conditions, and our team will provide a suitable flotation solution for your application.
Please Provide the Following Information:
FAQs
What is a BF Flotation Cell?
A BF Flotation Cell is a self-aspirated mechanical flotation machine designed for mineral separation in beneficiation plants. It uses an impeller-driven mixing system to generate negative pressure, draw air and slurry into the chamber, and produce mineralized bubbles. The equipment is widely used for recovering valuable minerals from metal and non-metal ores through froth flotation processes.
How does a BF Flotation Cell work?
The BF Flotation Cell works by combining slurry circulation, air intake and froth separation. During operation, the rotating impeller creates negative pressure to automatically draw air and slurry into the mixing zone. The air is dispersed into fine bubbles, which attach to valuable mineral particles and rise to the surface for concentrate recovery.
What minerals can be processed by a BF Flotation Cell?
BF Flotation Cells are suitable for a wide range of mineral processing applications, including copper, gold, lead-zinc, sulfide minerals and non-metallic minerals such as graphite and fluorite. They can be applied in roughing, cleaning and scavenging stages to improve mineral recovery and concentrate quality in different beneficiation circuits.
How do I choose the right BF Flotation Cell model?
Selecting the right BF Flotation Cell requires consideration of ore characteristics, processing capacity and flotation circuit requirements. Key factors include mineral composition, feed particle size, slurry flow rate, flotation stage and required recovery targets. Proper model selection helps ensure stable operation, effective mineral separation and suitable performance for the specific beneficiation process.
What are the advantages of a BF Flotation Cell?
The BF Flotation Cell features self-aspirated operation, strong slurry circulation and flexible installation. Its optimized impeller and stator design improves air dispersion and mineral-bubble contact while maintaining stable slurry suspension. Compared with traditional flotation equipment, it offers reliable operation, lower maintenance requirements and efficient performance for various mineral processing applications.
Can BF Flotation Cells be customized for different beneficiation plants?
Yes. BF Flotation Cells can be customized according to different ore properties, production capacities and plant layouts. Custom solutions may include flotation cell model selection, quantity configuration, circuit arrangement and integration with existing processing equipment. This helps ensure the flotation system matches actual operating conditions and production requirements.
What information is needed to select a BF Flotation Cell?
To recommend a suitable BF Flotation Cell, customers should provide basic project information, including ore type, mineral composition, feed particle size, ore grade and required processing capacity. Details about flotation stages, existing equipment and plant layout are also helpful for selecting the proper model and developing an optimized flotation solution.
What is the difference between a BF Flotation Cell and other flotation machines?
BF Flotation Cells differ from other flotation machines mainly in their self-aspirated design, impeller structure and slurry circulation performance. They combine air intake, slurry mixing and flotation functions in one unit, providing flexible installation and stable operation. The suitable flotation equipment depends on ore properties, plant scale and specific separation requirements.
