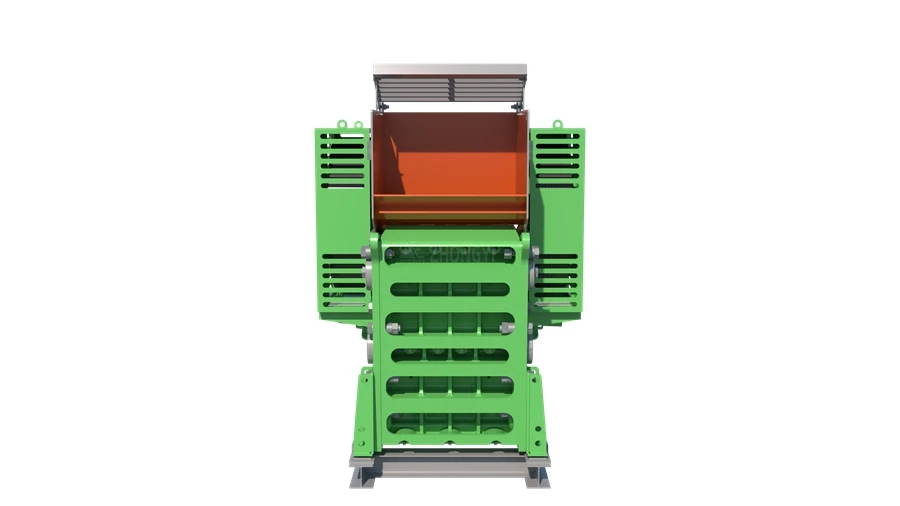

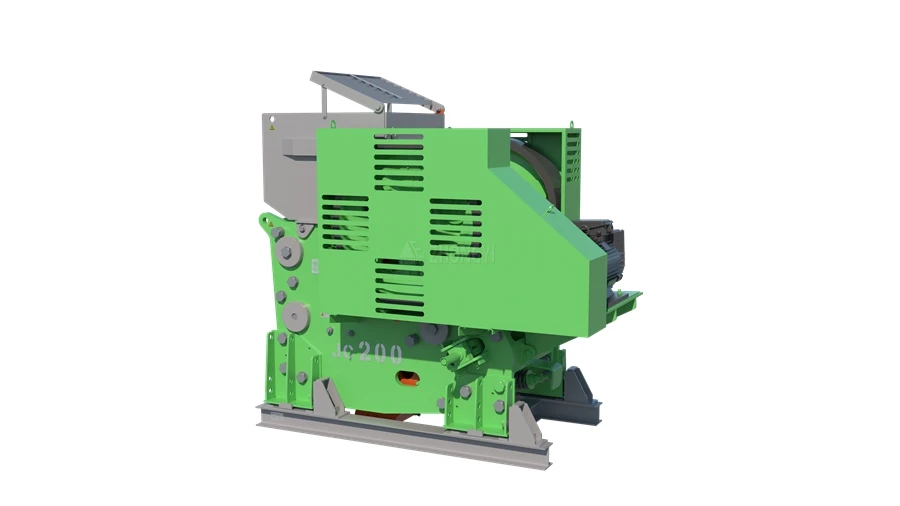

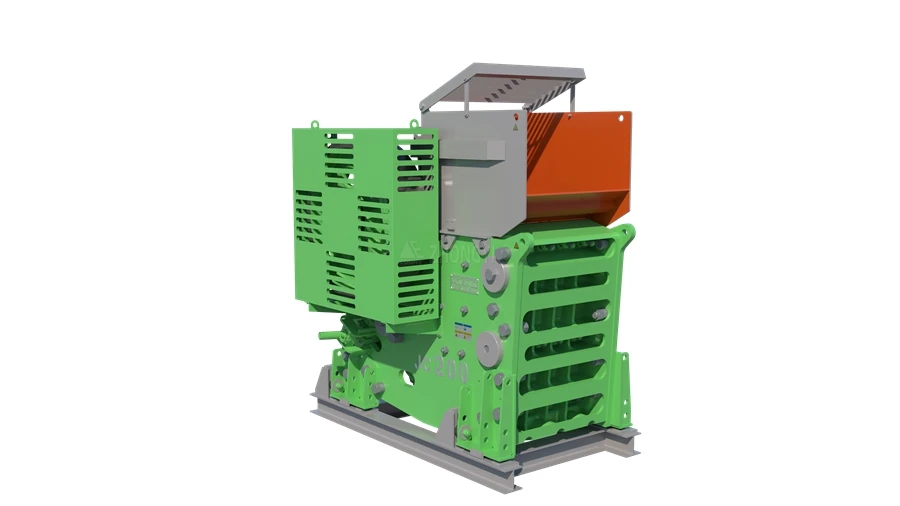

What Is a European Version Jaw Rock Crusher?
A European Version Jaw Crusher, also known as a European jaw rock crusher, is a heavy-duty primary crushing machine used to process large, hard rocks in mining, quarrying, aggregate production, and construction waste recycling. Compared with conventional jaw crushers, it features a deeper V-shaped crushing chamber, higher crushing efficiency, and larger feed capacity, with models capable of handling materials up to 850 mm.
Installed at the front of a crushing plant, it receives run-of-mine (ROM) material directly from excavators or dump trucks before feeding secondary crushers. The optimized crushing chamber, larger eccentric stroke, and hydraulic or wedge-type discharge adjustment improve throughput, reduce flaky particles, and allow fast discharge size adjustment for reliable, continuous operation.
How a European Version Jaw Rock Crusher Works?
A European version jaw crusher uses compression crushing — two jaw plates, one fixed and one movable, fracture material under high pressure. The movable jaw, driven by an eccentric shaft, moves in an elliptical path to apply concentrated force against the fixed plate.
Step 1: Material Feeding
Large rocks enter the deep V-shaped crushing chamber through the feed opening.
Step 2: Primary Crushing
The movable jaw compresses the material against the fixed jaw plate, breaking it into smaller pieces.
Step 3: Progressive Crushing
The crushed material moves downward and is repeatedly compressed until it reaches the required particle size.
Step 4: Material Discharge
Finished material passes through the adjustable discharge opening and is conveyed to the next crushing or screening stage.
Specifications
The European Version Jaw Rock Crusher is available in multiple models to meet different feed sizes, capacity requirements, and crushing applications. The specifications below provide key technical parameters to help you compare models and select the most suitable equipment for your production requirements.
| Model | Max Feed (mm) | Discharge Range (mm) | Capacity (t/h) | Power (kW) | Weight (t) |
| PEV680×980 | ≤580 | 65–180 | 100–220 | 75–90 | 12.5 |
| PEV750×1060 | ≤630 | 70–190 | 150–300 | 90–110 | 16.8 |
| PEV870×1100 | ≤680 | 75–200 | 200–380 | 110–132 | 22.3 |
| PEV950×1250 | ≤720 | 80–200 | 260–500 | 132–160 | 29.6 |
| PEV1100×1400 | ≤800 | 85–220 | 350–650 | 160–200 | 38.5 |
| PEV1200×1500 | ≤850 | 95–230 | 450–800 | 200–250 | 48.2 |
Note: These figures are a starting point only. Final selection should match the actual material characteristics, feed gradation, and process route.

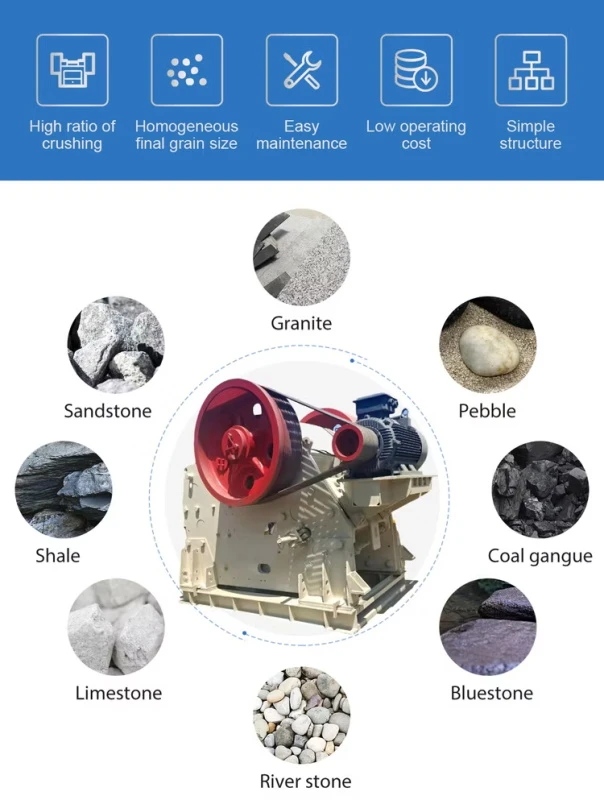

Suitable Materials
European Version vs Traditional Jaw Crusher
Both perform primary crushing, but the European version addresses long-standing limitations of traditional cast-frame designs.If you are interested in “Stone Crusher Types: Working Principle, Uses, and Selection Guide,” please click here.
| Parameter | European Version Jaw Crusher | Traditional Jaw Crusher |
| Chamber Shape | Deep V-shape (no dead zone) | Shallow straight or partial V |
| Crushing Ratio | 6:1 – 8:1 | 4:1 – 6:1 |
| Bearing Type | Large spherical roller bearings | Plain or smaller roller bearings |
| Eccentric Stroke | Larger (28–40 mm) | Smaller (18–25 mm) |
| Adjustment System | Hydraulic wedge (minutes) | Shim plates (hours) |
| Wear Parts | Bolt-on plates, easy toggle access | Wedge-retained, labor-intensive |
| Efficiency | Higher (more tons per kW) | Standard |
Quick guide: High-abrasion hard rock (granite, basalt) or frequent discharge changes → choose European version. Low-budget, low-tonnage limestone → traditional may suffice.
Applications
The European version jaw rock crusher handles primary crushing of hard and abrasive materials across mining, quarrying, and recycling. Its deep V-chamber and large stroke make it especially effective where traditional jaw crushers struggle with throughput or wear life.
Processes hard quartz and sulfide ores, producing feed material for secondary cone crushers and grinding circuits.
Crushes magnetite and hematite for downstream beneficiation, magnetic separation, and pelletizing plants.
Handles highly abrasive rock for the production of high-quality aggregates used in roads, railways, and concrete.
Provides primary crushing for limestone used in cement manufacturing and aggregate production with high throughput and stable operation.
Reduces hard river pebbles for secondary crushing and sand-making lines used in concrete aggregate production.

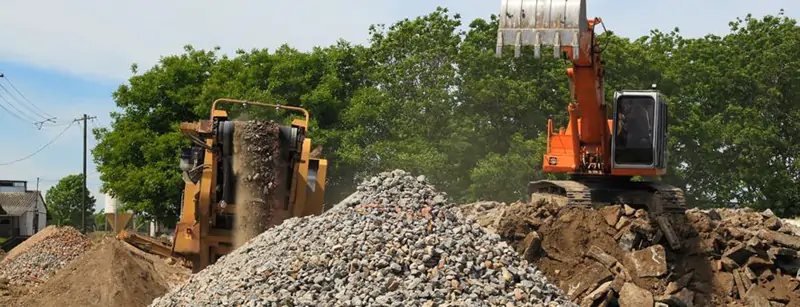

Crushes concrete, bricks, and masonry into reusable aggregates after metal separation, supporting recycling and resource recovery.
How to Choose the Right European Version Jaw Crusher?
Selecting the right European Version Jaw Rock Crusher requires more than comparing model specifications. Material characteristics, feed size, required capacity, and discharge size all affect crusher performance, equipment life, and the overall efficiency of the crushing circuit.

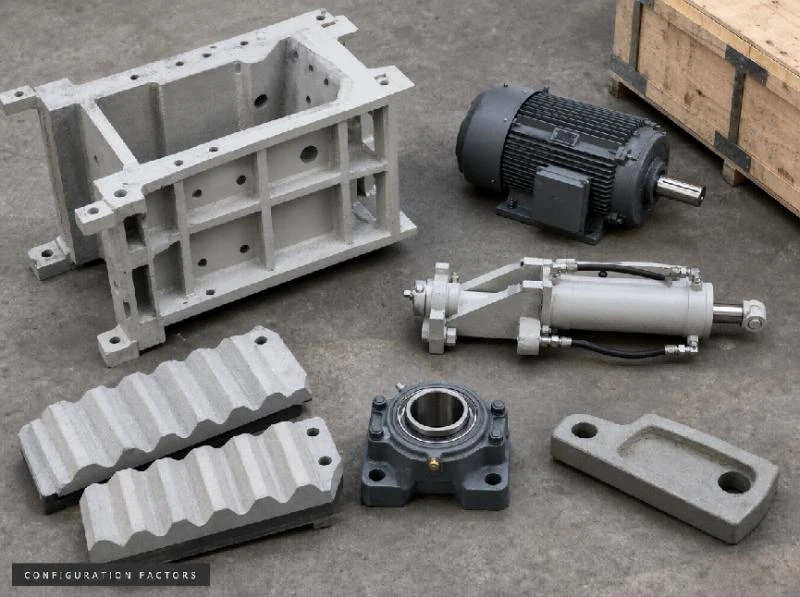

European Version Jaw Crusher Price Factors
The price of a European version jaw crusher varies by model size, configuration, and material specifications. Key factors include:
Why Work With Zhongyi Mining?

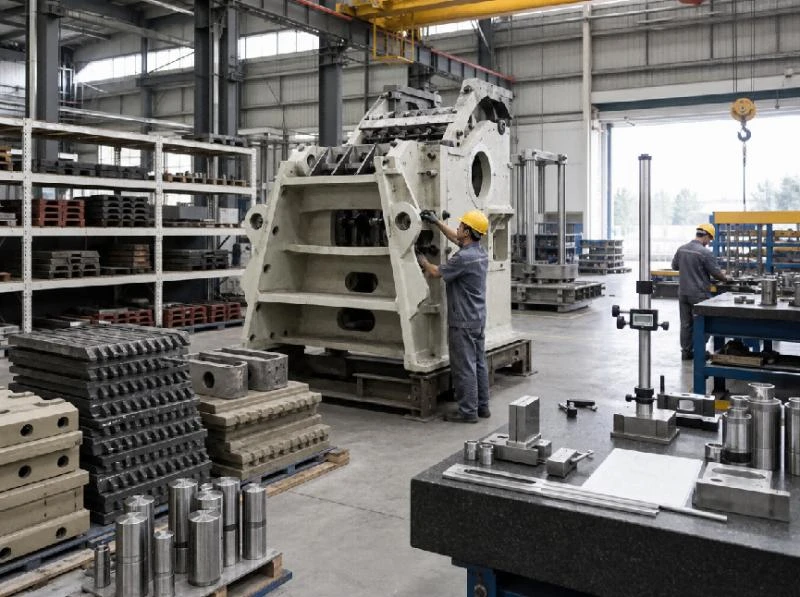

Zhongyi Mining is a professional manufacturer of European Version Jaw Crushers for mining, quarrying, and aggregate production. With over 20 years of engineering and manufacturing experience, we provide complete solutions covering equipment selection, process flow design, equipment manufacturing, foundation drawings, installation guidance, and operator training.
All European Version Jaw Crushers are manufactured under an ISO 9001:2015 quality management system and comply with CE standards. A dedicated inventory of jaw plates, toggle plates, bearings, and other critical spare parts supports fast replacement, helping reduce downtime and ensure reliable long-term operation.
Request a Customized Solution
Partner with Zhongyi for a European Version Jaw Crusher built for reliable primary crushing in mining, quarrying, and aggregate production.

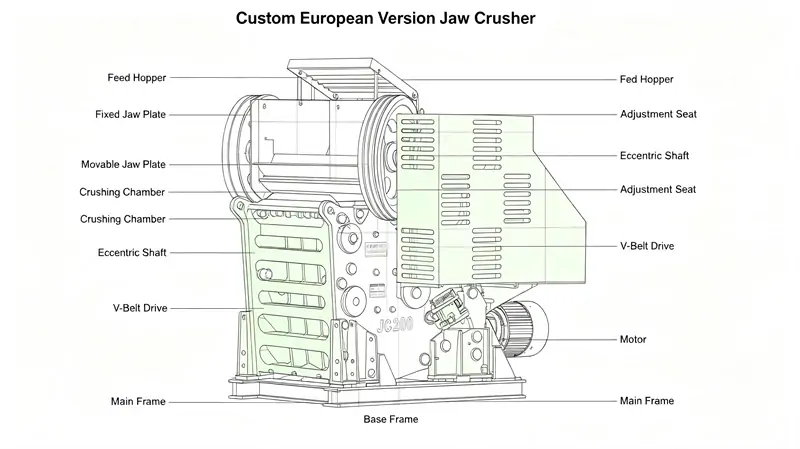

Custom European Version Jaw Crusher Solution
Every crushing project has different requirements depending on rock properties, feed size, production capacity, and final product specifications. Zhongyi provides customized European Version Jaw Crusher solutions, including model selection, configuration optimization, and complete crushing production line solutions to match different mining, quarrying, and aggregate applications. Share your project details with our engineers, and we will recommend the suitable crusher configuration and process design for your operation.
Please Provide the Following Information:
FAQs
What is a European Version Jaw Crusher used for?
A European Version Jaw Crusher is primarily used for crushing hard and abrasive materials such as granite, basalt, iron ore, quartzite, and limestone. It is widely used in mining, quarrying, and aggregate production as the first-stage crusher, reducing large rocks into a suitable size for secondary crushing, screening, or further mineral processing.
How is a European Version Jaw Crusher different from a traditional jaw crusher?
Compared with conventional jaw crushers, the European version features a deeper V-shaped crushing chamber, a larger eccentric stroke, reinforced frame construction, and a hydraulic or wedge-type discharge adjustment system. These improvements increase crushing efficiency, handling capacity, and maintenance convenience while providing more consistent product size.
What feed size can a European Version Jaw Crusher handle?
Maximum feed size depends on the crusher model and feed opening, with larger models accepting materials up to 850 mm. For stable operation and consistent throughput, the maximum feed size is generally recommended to remain within 80–85% of the feed opening.
What discharge size can a European Version Jaw Crusher produce?
The discharge opening is adjustable according to the selected model and production requirements, typically producing finished material from 60 mm to 230 mm. The final setting should also match the feed requirements of downstream equipment such as cone crushers or vibrating screens.
What factors affect jaw plate service life?
Jaw plate life depends on rock hardness, abrasiveness, feed size, operating conditions, and jaw plate material. Selecting the appropriate wear material and maintaining a consistent feed distribution helps reduce wear, extend service life, and lower operating costs.
What affects the price of a European Version Jaw Crusher?
Equipment price is mainly influenced by the crusher model, processing capacity, feed opening, motor power, equipment configuration, and the quality of key components such as jaw plates, bearings, and the frame. Project scope and optional features may also affect the final quotation.
Does Zhongyi provide installation and technical support?
Yes. Zhongyi provides equipment selection, process flow design, foundation drawings, installation guidance, commissioning support, operator training, and technica
What are the main wear parts of a European Version Jaw Crusher?
The primary wear parts include jaw plates, toggle plates, and bearings. Regular inspection and timely replacement help maintain crushing efficiency and reduce unexpected downtime. Spare parts should always be selected according to the crusher model and application.
