Mineral Processing Equipment

Flash Flotation Cell is a specialized flotation equipment designed for early recovery of liberated and fast-floating minerals from grinding circuit slurry. Installed on cyclone underflow streams, it handles high-density slurry and coarse particles to reduce overgrinding losses and improve mineral recovery. With applications in gold, copper, sulfide ore, and graphite processing, it provides reliable performance for efficient mineral separation in modern beneficiation plants.

Pneumatic Flotation Cell is a mineral processing equipment designed for separating valuable minerals from gangue minerals through external air supply and controlled bubble generation. It is widely used in copper, gold, lead-zinc, iron ore, and non-metallic mineral beneficiation plants for rougher, cleaner, and scavenger flotation operations.

With optimized air dispersion, stable slurry circulation, and low-wear structural design, the Pneumatic Flotation Cell provides reliable flotation performance and consistent mineral recovery. Zhongyi offers customized flotation equipment configurations based on ore characteristics, processing capacity, and beneficiation plant requirements to support efficient mineral separation projects.

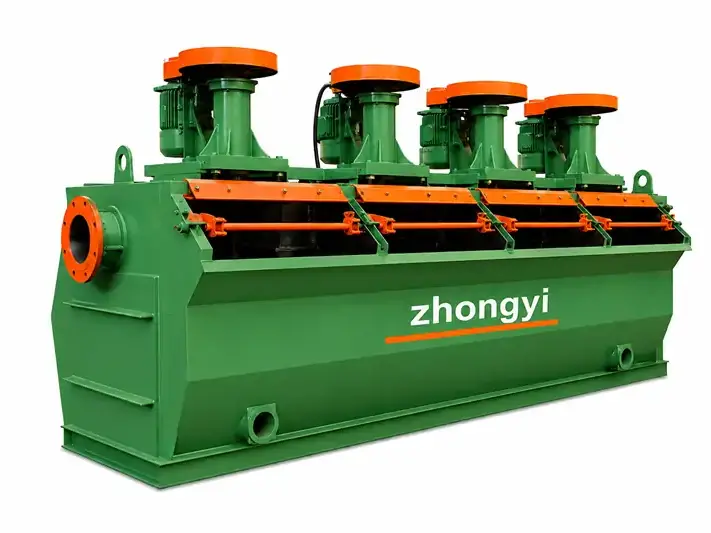

Froth Flotation Cell is a core mineral processing equipment designed for efficient separation of valuable minerals from gangue through controlled air dispersion, slurry mixing, and froth recovery. Zhongyi provides various flotation cell solutions, including mechanical, forced air, and customized flotation systems, suitable for copper, gold, zinc, nickel, sulfide ores, and non-metallic mineral processing applications. With optimized impeller design, stable bubble generation, and flexible configuration, our flotation cells help improve mineral recovery, concentrate grade, and overall plant performance.

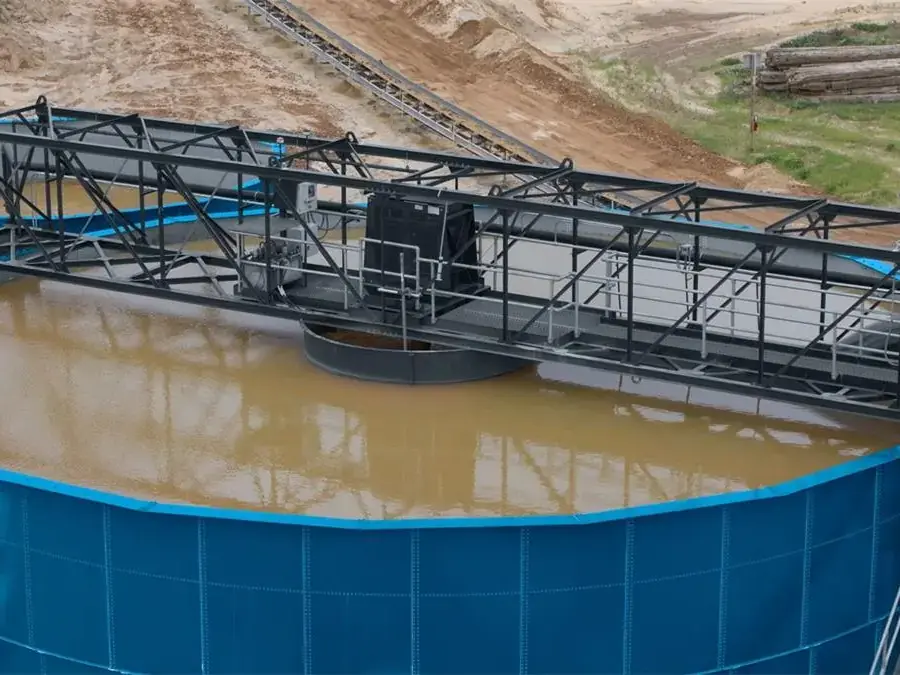

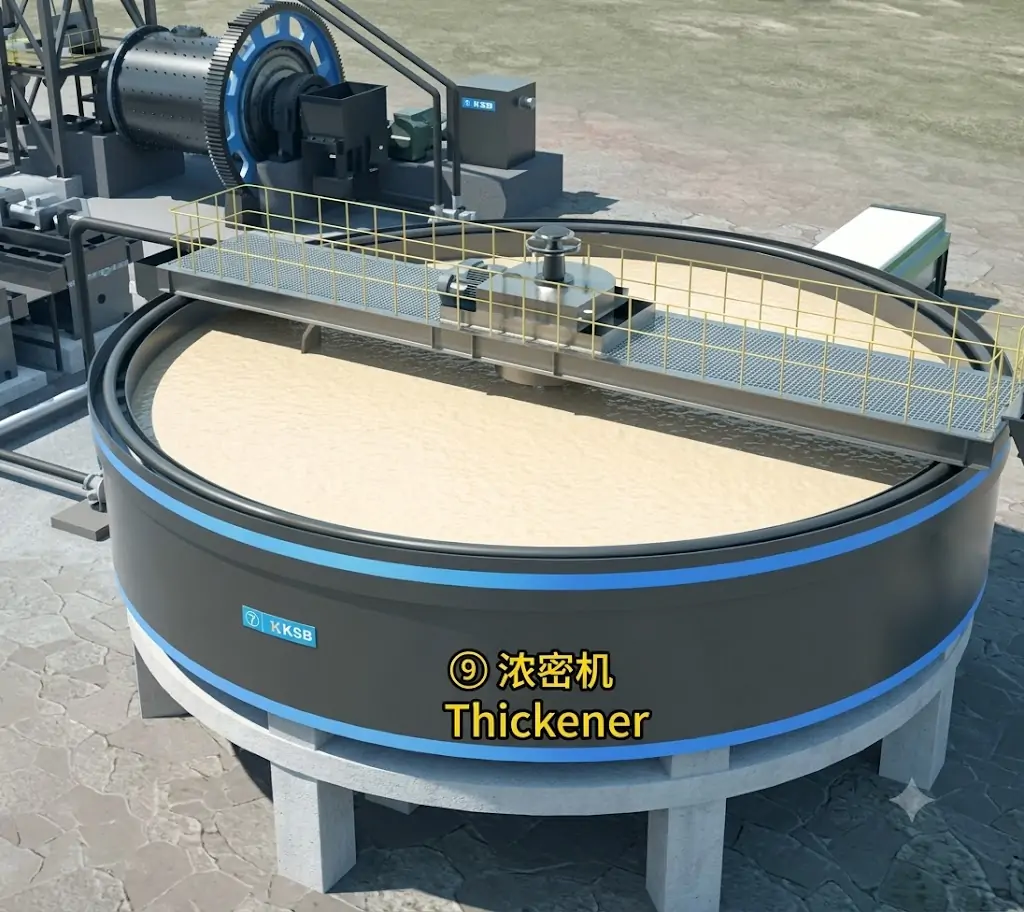

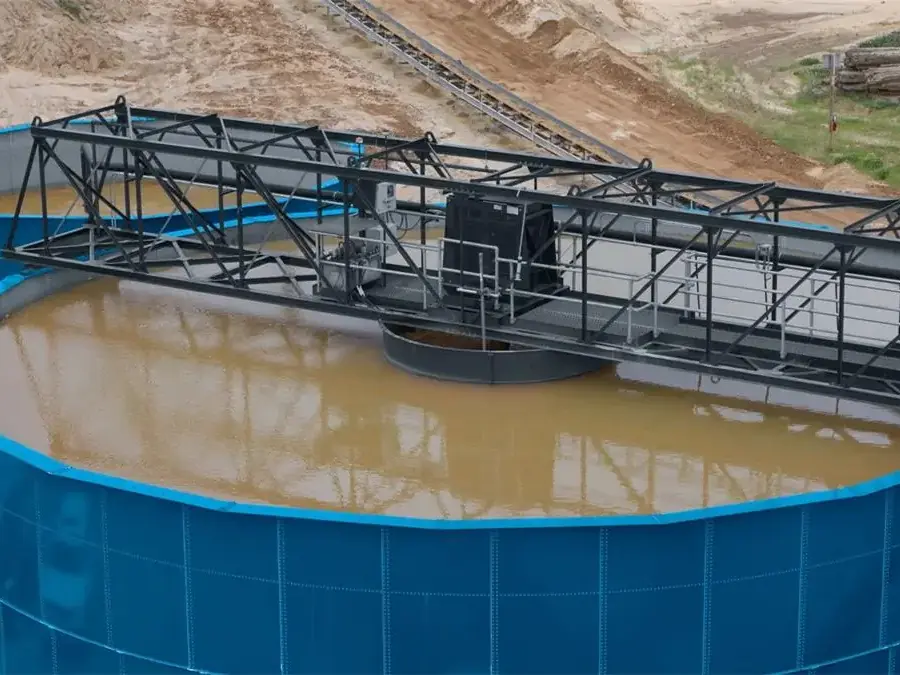

Our mining thickeners are engineered for efficient slurry settling and water recovery in mineral processing plants. From concentrate thickening to tailings management, the equipment provides reliable performance under different ore conditions, including gold, copper, iron, and other mineral applications.

Zhongyi Mining provides customized thickener solutions based on feed concentration, processing capacity, material characteristics, and plant layout requirements. With professional mining equipment manufacturing experience, we design and supply reliable mineral processing thickeners for various beneficiation projects.

Rake Thickener is used for continuous slurry thickening and solid-liquid separation in mining, mineral processing, tailings treatment, and industrial applications. It combines a large circular settling tank with a mechanical rake system to collect settled solids, increase underflow concentration, and recover clarified water during continuous operation.

Rotary Vacuum Drum Filter is a continuous solid-liquid separation equipment designed for slurry dewatering and filtration. Using vacuum pressure and a rotating drum covered with filter cloth, it continuously performs filtration, cake formation, drying, and discharge. It is widely used for mineral concentrate dewatering, tailings treatment, and industrial slurry filtration.

BF Flotation Cell is a self-aspirated mechanical flotation machine designed for efficient mineral separation in mining and mineral processing plants. Featuring self-air suction, self-slurry circulation and strong mixing performance, it creates stable mineralized bubbles to improve the separation of valuable minerals from gangue.
With excellent air dispersion, reliable slurry circulation, low energy consumption and reduced wear, BF flotation cells are widely used for copper, gold, lead-zinc, molybdenum, iron ore and other mineral beneficiation applications. Customized configurations are available according to ore characteristics, processing capacity and flotation process requirements.

Air flotation cell separator machine is designed for mineral separation by combining external air supply, mechanical agitation, and effective bubble-particle contact. It provides stable aeration, strong slurry circulation, and reliable flotation performance for copper, gold, lead-zinc, and other mineral processing applications.

The XCF flotation machine is a typical air inflation flotation cell with self-suction slurry capability, commonly used with KYF flotation machines in roughing and scavenging circuits of medium and large-scale beneficiation plants.

SF Type Self Suction Flotation Cell is a mechanical agitation flotation machine widely used for separating and recovering valuable minerals from ore. It integrates automatic air suction, slurry suction and flotation functions in one unit, ensuring stable pulp circulation and efficient mineral recovery.

Widely applied in copper, gold, lead-zinc and other mineral beneficiation plants, the SF flotation cell is suitable for roughing, scavenging and cleaning operations. With a compact structure, reliable performance and flexible configuration, Zhongyi Mining provides customized flotation solutions for different processing requirements.

XJK Flotation Machine is a mechanical flotation machine designed for mineral beneficiation. It uses an impeller-driven mixing system to combine slurry, air, and flotation reagents, enabling valuable minerals to attach to bubbles and separate from waste materials through froth recovery.

Widely used in mineral processing plants, the XJK Flotation Cell is suitable for the separation of copper, gold, lead-zinc, and other metal ores. Zhongyi Mining supplies XJK flotation machines with reliable performance, simple operation, flexible configuration, and durable design to meet the requirements of different mining projects.

A Spiral Sand Washer is designed for cleaning, dewatering, and classifying sand and fine materials in a continuous process. It removes mud, clay, and light impurities, improving material quality for downstream applications.
It is widely used for sand, gravel, silica sand, tailings, and construction waste, especially in projects where material purity and stable output are required.

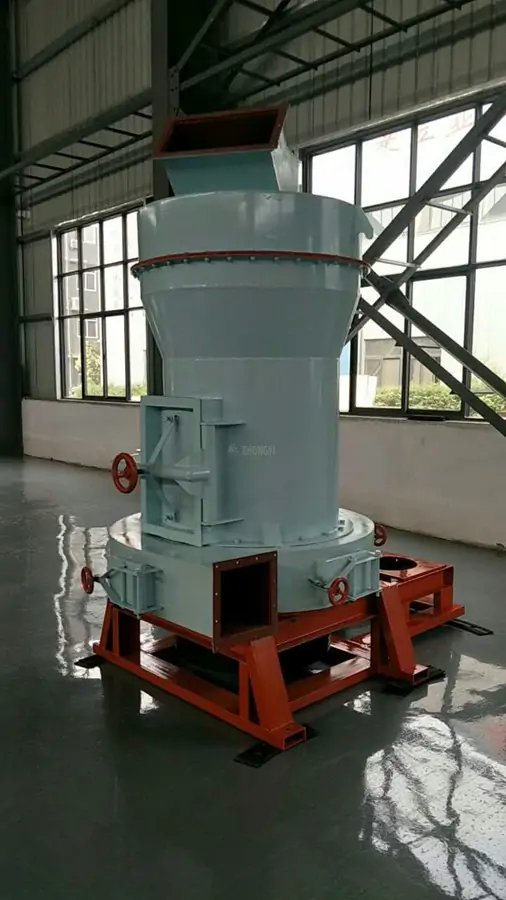

The Raymond Mill is a dry grinding machine for producing controlled-fineness powder from limestone, barite, dolomite, gypsum, and other suitable minerals. Its roller-and-ring grinding system reduces the feed material, while an air classifier separates fine powder from coarse particles for further grinding.

The mill integrates grinding, air classification, and powder collection in a closed-circuit system for continuous mineral powder production. Zhongyi Mining’s current reference range is 0.8–20 TPH capacity, ≤30 mm feed size, and 80–325 mesh output fineness, with the actual configuration determined by material properties and product requirements.

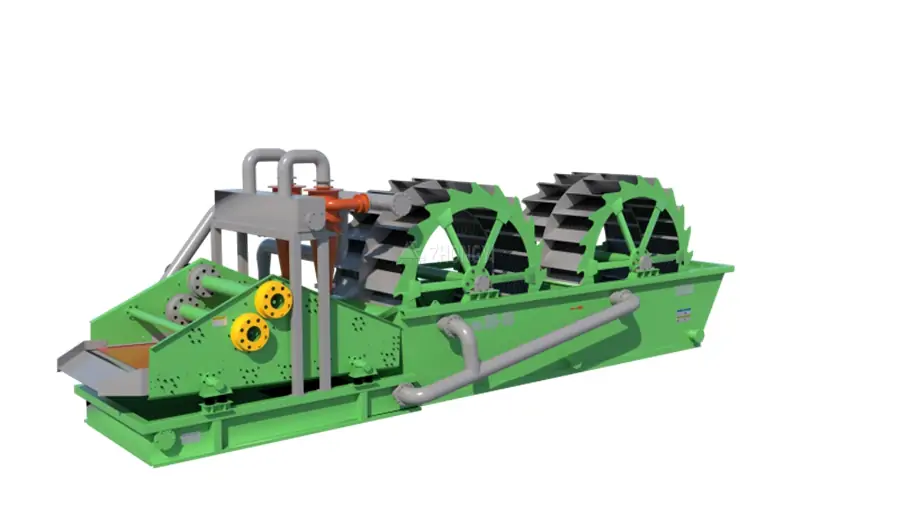

The Bucket Wheel Sand Washing and Recycling Machine combines sand washing with fine-sand recovery for wet aggregate and manufactured-sand processing. The bucket wheel removes mud, clay, and other impurities, while the recovery system separates usable fine sand from the washing slurry to reduce fines loss.

It is suitable for sand and aggregate plants where both finished-sand cleanliness and material recovery are important. The system can be configured according to feed size, mud content, fines proportion, required capacity, product grading, and process water conditions.

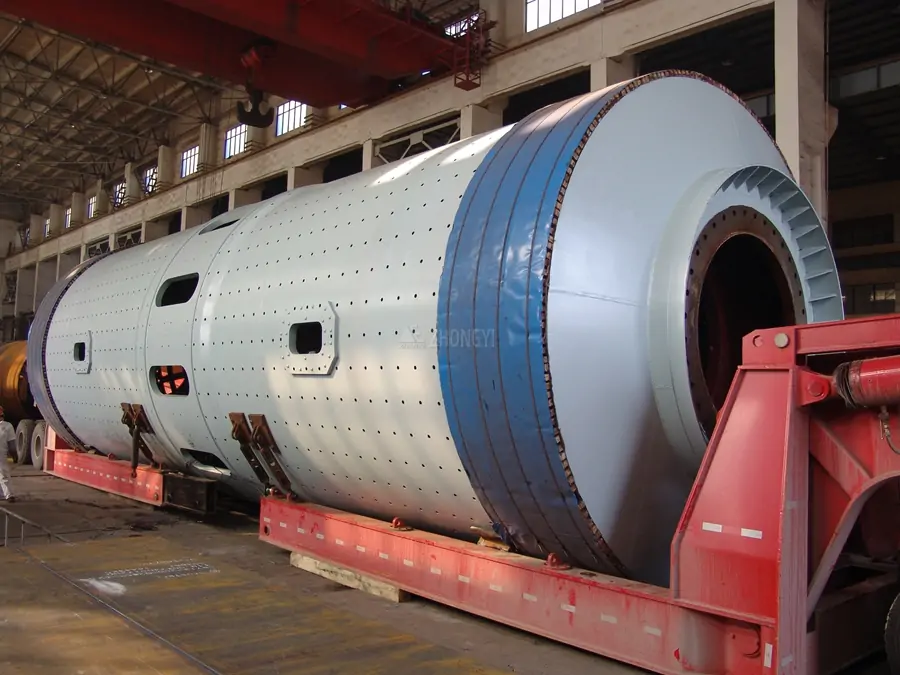

The Cement Clinker Grinding Unit is designed to grind cooled cement clinker to the required fineness for cement production. It combines clinker grinding with material conveying, classification, and powder collection to support continuous production.

The unit can be configured for clinker hardness, feed size, target fineness, and required capacity, with gypsum, limestone, slag, or other additives incorporated according to the cement formulation.

The Vertical Dryer is a compact drying machine designed to reduce moisture in bulk materials where available installation space is limited. Its vertical structure uses gravity to move material downward while hot air circulates through the drying chamber, providing continuous heat and moisture transfer.

The compact layout is suitable for mineral, aggregate, and other industrial drying applications requiring a smaller equipment footprint. The drying capacity, feed moisture, drying temperature, airflow arrangement, and discharge configuration can be matched to the material characteristics and process requirements.

The Mining Agitation Tank is a mechanical mixing vessel used to homogenize and condition mineral slurry before downstream processing. The rotating impeller keeps solid particles suspended and promotes consistent pulp circulation, helping maintain stable slurry conditions during continuous operation.

Designed for general mineral processing applications, the tank can handle different slurry concentrations and material characteristics. Tank volume, impeller diameter, rotation speed, and motor power can be configured according to slurry flow rate, solids concentration, particle size, pulp density, conditioning time, and plant layout.

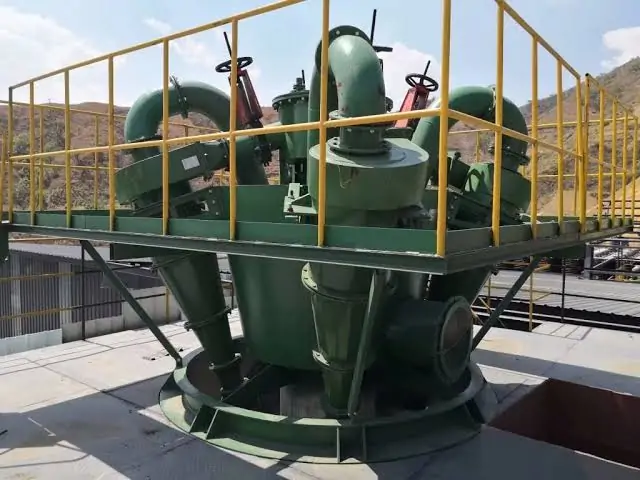

The Hydrocyclone Cluster integrates multiple hydrocyclones into a common classification system for continuous mineral slurry separation. The parallel cyclone arrangement distributes feed across multiple units, increasing overall throughput while maintaining efficient particle-size classification.

It is widely used in grinding circuits, desliming, classification, and tailings treatment where higher slurry capacity is required. The number and diameter of hydrocyclones, feed pressure, slurry flow rate, solids concentration, and target separation size can be configured according to the required process duty.

The Triple Shaft Horizontal Vibrating Screen is designed for high-capacity sizing of aggregates, ores, and other bulk materials. Its three-shaft drive generates controlled horizontal vibration, helping transport material across the screen deck while separating particles by size.

The horizontal screen layout is suitable for processing lines where screening capacity and limited installation height are important considerations. Screen deck configuration, aperture size, drive arrangement, and screening stages can be selected according to material type, feed size, required capacity, and target separation sizes.

The Bucket Wheel Sand Washer is designed to remove mud, clay, dust, and other light impurities from sand and fine aggregates. Its bucket wheel continuously scoops and discharges the washed material, making it suitable for wet sand and aggregate processing.

It is commonly integrated into sand washing and aggregate production lines where cleaner finished material is required before further use or processing. The washing capacity, feed size, material condition, water supply, and discharge configuration can be matched to the required product quality and plant layout.

The Slurry Lifting Agitator Tank combines slurry agitation and lifting in one unit, providing continuous mixing while raising slurry to the required process level. The agitator keeps solids evenly suspended and helps prevent settling during slurry transfer.

It is designed for mineral processing circuits where slurry needs both continuous agitation and controlled elevation between process stages. Tank volume, lifting height, impeller configuration, motor power, and discharge arrangement can be selected according to slurry flow rate, solids concentration, particle size, and plant layout.

The Cone Bottom Agitation Tank is designed for conditioning mineral slurry before flotation. Its conical bottom directs settled solids toward the discharge area, while the agitator keeps particles suspended and promotes uniform mixing of ore pulp and flotation reagents.

It is suitable for mineral processing circuits that require controlled slurry conditioning before separation. The tank can be configured according to slurry flow rate, solids concentration, particle size, pulp density, conditioning time, and plant layout, with the impeller and drive system selected for the required mixing conditions.

The GBJ Double-Impeller Leaching Agitation Tank is designed for mineral slurry leaching, providing intensive agitation to improve contact between ore particles and the leaching solution. Its double-impeller arrangement promotes circulation through the tank and helps maintain a consistent slurry condition during the required residence time.

It is suitable for hydrometallurgical processes where continuous slurry agitation and stable solid-liquid contact are required. The tank volume, impeller arrangement, agitation speed, and motor power can be selected according to slurry concentration, particle size, ore density, leaching conditions, and process capacity.

The High Density Agitation Tank is designed for continuous mixing of high-solids mineral slurry where conventional agitation may be affected by high pulp density. Its optimized impeller system promotes slurry circulation and helps maintain a consistent pulp condition throughout the tank.

It is used in mineral processing circuits for dense pulp mixing, conditioning, and preparation before downstream treatment. The tank volume, impeller design, agitation speed, and drive power can be selected according to solids concentration, pulp density, particle size, slurry flow rate, and required residence time.

A magnetic separator uses magnetic force to recover magnetic minerals or remove iron contamination. It comes with permanent magnet or electromagnetic circuits, wet or dry configurations, and wear-resistant tanks and drums. It handles roughing, cleaning, and scavenging to boost recovery and grade. Zhongyi supplies the right separator type and size—LIMS, MIMS, or HGMS—with ore testing, process design, and on-site commissioning for your plant.

Rod Mill for Mining Grinding is a grinding machine designed for coarse material reduction in mineral processing. Using steel rods as grinding media, it helps produce a more uniform particle size, reduces overgrinding, and supports stable operation in demanding mining environments. It is widely used in ore beneficiation plants for grinding various minerals and preparing materials for the next processing stage.

At Zhongyi Mining, we provide rod mill solutions for different mining grinding requirements, with reliable equipment structure, stable performance, and flexible configuration options. Our rod mills can be customized according to ore type, feed size, discharge size, and capacity demand, helping customers improve grinding efficiency and match plant-specific processing conditions.
