Introduction

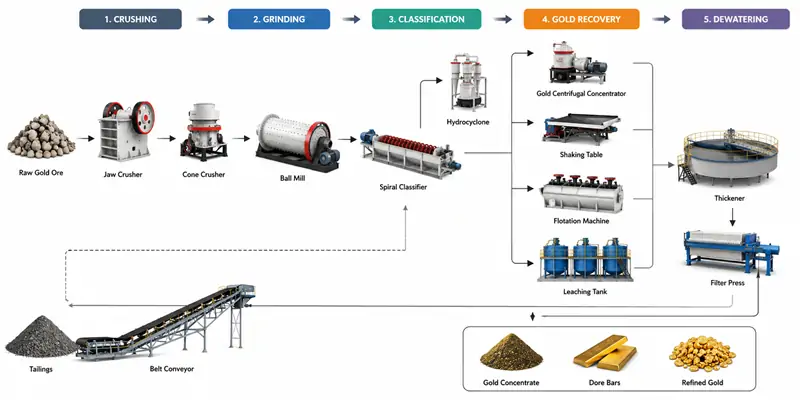

A Gold Mine Processing Plant is used to extract and recover gold from rock gold ore, placer gold ore, oxide ore, and sulfide ore. Depending on the ore type and recovery target, the process may include gravity separation, flotation, CIP, or CIL. A typical plant consists of crushing, grinding, classification, gold recovery, and dewatering systems, using equipment such as jaw crushers, ball mills, classifiers, gold concentrators, flotation machines, leaching tanks, and filter presses.
The production line can be designed for different ore characteristics and processing capacities. By combining the right process and equipment, it helps improve gold recovery and make better use of mineral resources. Zhongyi Mining Machinery provides complete gold mine processing plant solutions, including process design, equipment manufacturing, installation, and commissioning.
Zhongyi Solution
Every gold deposit has different ore characteristics, grade, particle size, and recovery requirements. Zhongyi Mining Machinery provides customized gold processing plant solutions based on ore test results and project conditions.
Rock Gold Ore
Hard rock, usually quartz vein type. High hardness, gold embedded in rock, needs fine grinding to liberate.
- Recommended Configuration：Jaw Crusher + Ball Mill + Spiral Classifier + Centrifugal Concentrator + Shaking Table
- Optional: Thickener
- Advantages：Stable crushing and grinding process. Gravity separation recovers free gold without chemicals. Suitable for small to medium rock gold plants.
Placer Gold Ore
Loose sand or river deposits. Low hardness, contains clay and gravel. Most gold exists as free particles.

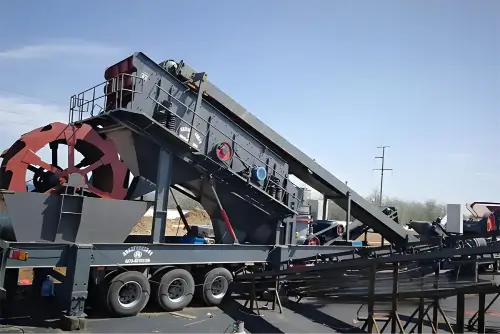

- Recommended configuration: Trommel Screen + Centrifugal Concentrator + Sluice Box + Shaking Table
- Optional: Washing System
- Advantages: Simple flow. Strong removal of clay and impurities. High recovery rate for free gold. Easy to move and operate.
Sulfide Gold Ore
Gold is locked in sulfide minerals. Fine particles. Hard to recover by gravity alone.
- Recommended configuration:Jaw Crusher + Ball Mill + Hydrocyclone + Flotation Machine + Thickener + Filter Press
- Optional: Regrinding System
- Advantages: Flotation improves recovery of fine gold. Stable concentrate production. Suitable for medium to complex ore types.
Gold CIL Process
Low-grade ore with fine gold particles. Common in medium and large gold mines where gravity recovery alone is insufficient.
- Recommended configuration:Crushing System + Grinding System + CIL Tank + Carbon Recovery System + Smelting System
- Optional: Thickener
- Advantages:Leaching and adsorption take place in the same circuit. Fewer process steps, compact layout, and high overall gold recovery.
Recommended Equipment
Different gold ores require different processing methods and equipment combinations. From primary crushing to final gold recovery, equipment selection directly affects plant performance and recovery results.
Zhongyi Mining Machinery supplies the key equipment used in rock gold, placer gold, sulfide gold, and cyanidation processing plants.
Jaw Crusher (Primary Crushing)
The jaw crusher is used for coarse crushing, breaking large rocks into manageable sizes.
- Strong crushing force
- Simple structure and easy maintenance
- Suitable for all hardness levels
Parameters:
Feed size: ≤1000 mm
Output size: 100–300 mm
Capacity: 50–800 TPH

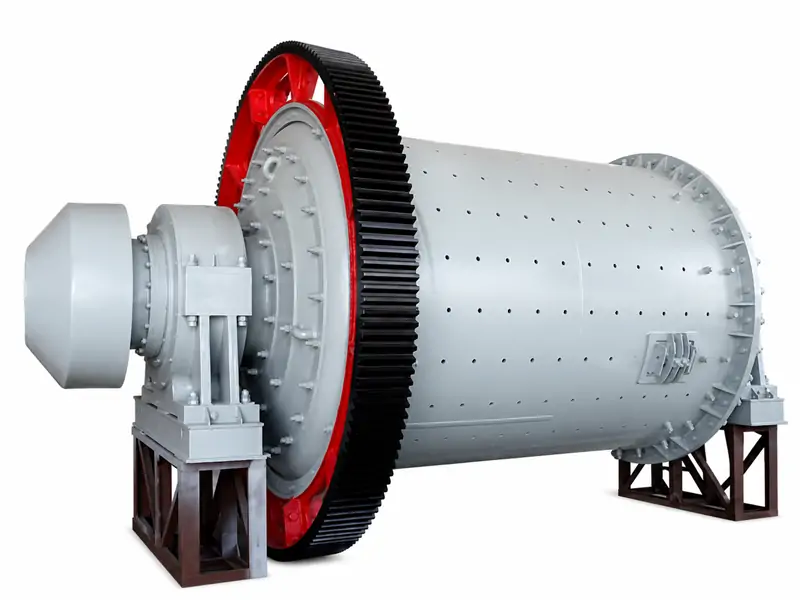

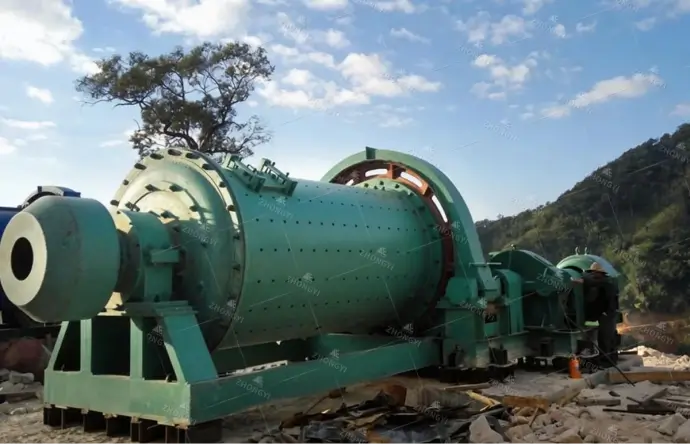

Ball Mill (Grinding)
Ball mills grind crushed ore to the particle size required for gravity separation, flotation, and leaching processes.
- Suitable for fine grinding
- Stable continuous operation
- Wide application range
Parameters:
Feed Size: ≤25 mm
Discharge Size: 0.074–0.4 mm
Capacity: 0.65–615 t/h
Gold Centrifugal Concentrator
Gold centrifugal concentrators recover free gold through gravity separation without chemical reagents.
- High free gold recovery
- Low operating cost
- Compact equipment design
Parameters:
Feed Size: 0–6 mm
Recovery Rate: Up to 90%
Capacity: 1–200 t/h

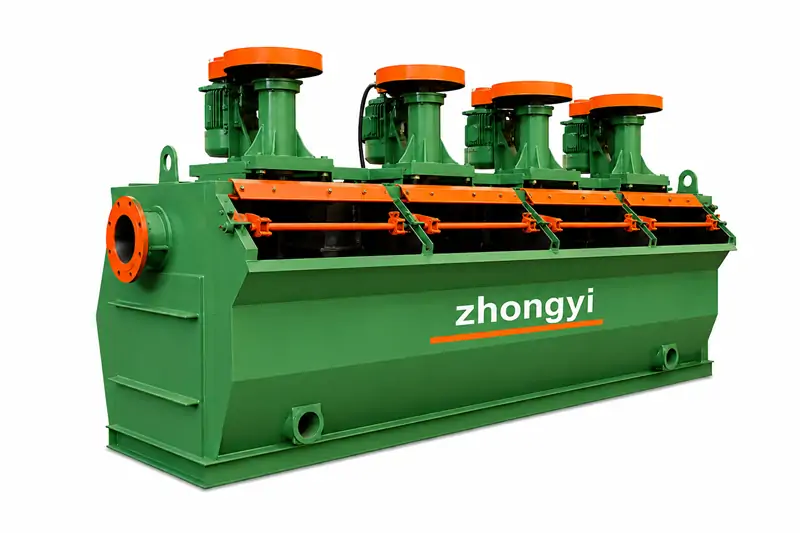

Flotation Machine
Flotation machines recover gold associated with sulfide minerals and improve concentrate grade.
- Suitable for fine gold particles
- High concentrate recovery
- Stable flotation performance
Parameters:
Cell Volume: 0.35–20 m³
Processing Capacity: 0.2–24 m³/min
Application: Sulfide Gold Ore

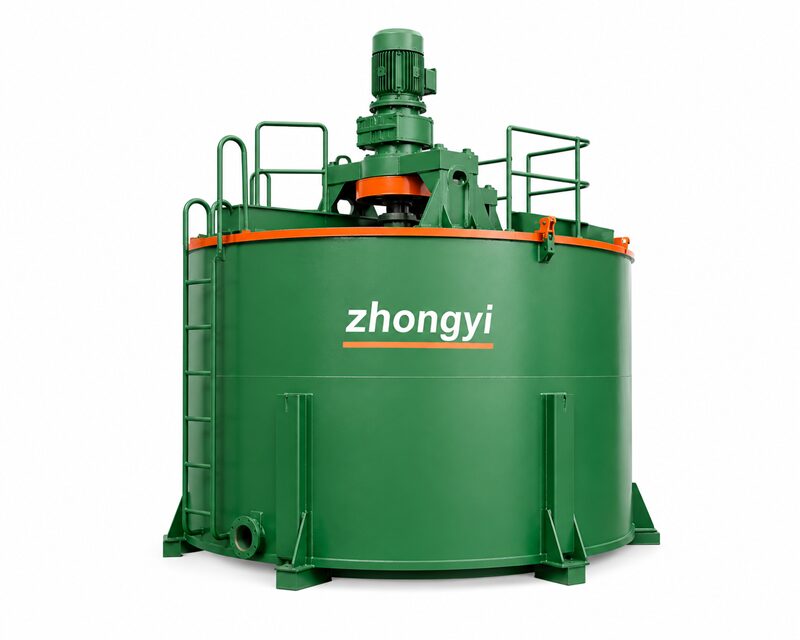

Leaching Tank
Leaching tanks are used in CIP and CIL plants to dissolve and recover gold from fine ore particles.
- Suitable for low-grade ore
- Continuous processing operation
- Efficient gold extraction
Parameters:
Tank Volume: 8–500 m³
Slurry Density: 35–50%
Application: Gold CIP/CIL Process
Project Cases
Zhongyi Mining Machinery provides customized gold processing plant solutions based on ore conditions, production capacity, and site requirements.

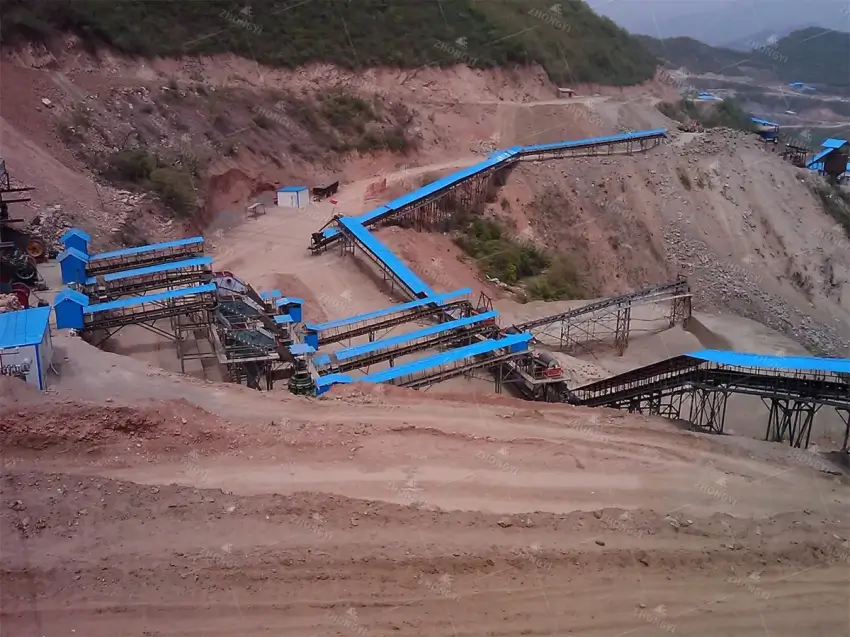

50 TPH Rock Gold Processing Plant (West Africa)
The project processes quartz vein rock gold with medium hardness. The production line uses a gravity separation process to recover free gold without chemical leaching, suitable for small and medium-scale mining operations.
Capacity: 50 TPH
Ore type: Quartz vein rock gold
Final product: Gold concentrate
Overview:
The plant operates with stable feed and consistent recovery performance. The process is simple, easy to operate, and suitable for regions with limited infrastructure. It delivers steady gold recovery from hard rock ore and supports continuous production.
Contact Zhongyi Mining Team
Zhongyi Mining Machinery designs customized gold processing plant solutions based on ore type, production capacity, and project objectives. Contact our team for free process design, equipment selection, plant layout planning, and project quotations. We will recommend the most suitable solution for your gold processing project.
FAQ
1. How do I choose the right gold processing method for my ore?
The process depends on ore type, gold grade, particle size, and mineral composition. Rock gold, placer gold, sulfide gold, and low-grade gold usually require different methods such as gravity separation, flotation, or cyanidation. Ore testing is recommended before selecting the final process.
2. What information is needed to design a gold processing plant?
We need ore type, processing capacity, feed size, target recovery rate, and site conditions. If available, ore analysis data will help us design a more suitable and accurate processing solution.
3. What gold recovery rate can I expect?
Recovery rate depends on ore conditions and process design. Gravity separation usually recovers most free gold. Flotation and cyanidation can recover fine and associated gold and achieve higher total recovery when the process is properly designed.
4. How much does a gold processing plant cost?
Cost depends on capacity, process type, and equipment configuration. Small plants require lower investment, while large plants need more equipment and infrastructure. We can provide a detailed quotation based on your project requirements.
5. Can the equipment be customized?
Yes. We can customize capacity, layout, material, and control system based on your ore conditions and production requirements. We also adjust the configuration for different site and installation conditions.
6. Do you provide installation and commissioning support?
Yes. We can send engineers for installation guidance, commissioning, and operator training. Remote support is also available during installation and early operation.
7. How long does it take to build a gold processing plant?
Delivery time depends on equipment type and project size. Standard equipment is faster. Complete production lines need more time for manufacturing, layout design, and testing before shipment.
8. Do you provide complete gold processing plant solutions?
Yes. Zhongyi Mining Machinery provides full gold processing plant solutions, including process design, equipment supply, plant layout, installation, commissioning, and technical support. We support both single equipment supply and complete production line projects.
