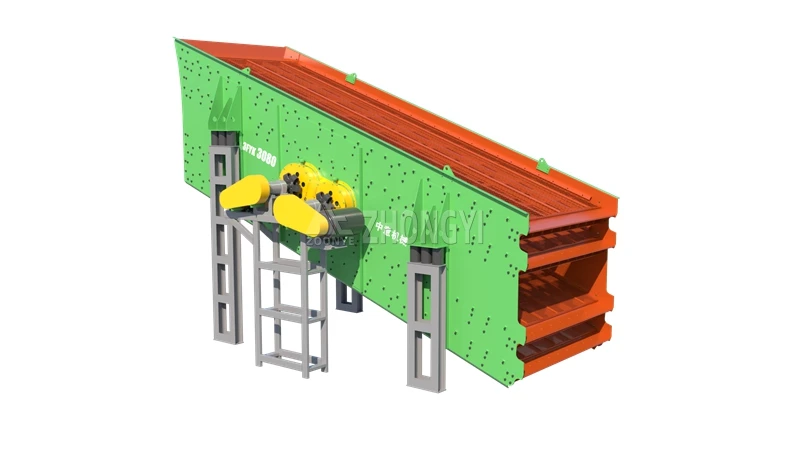

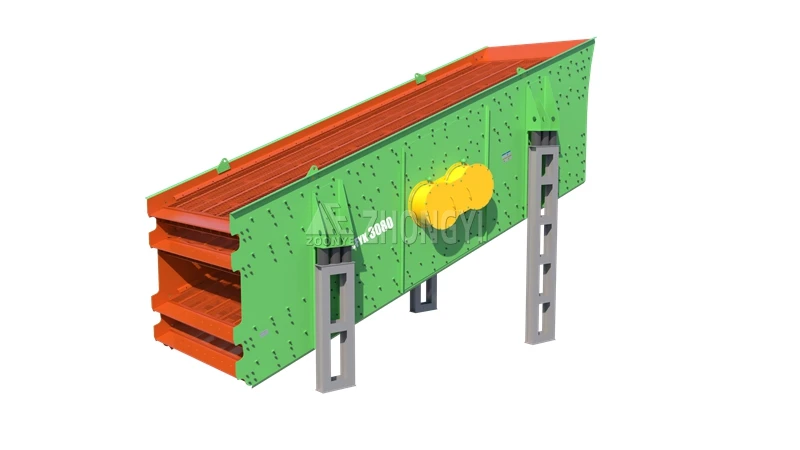

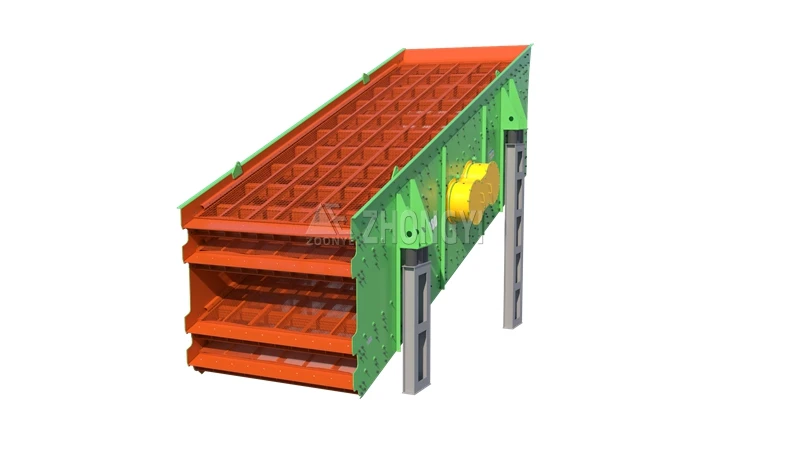

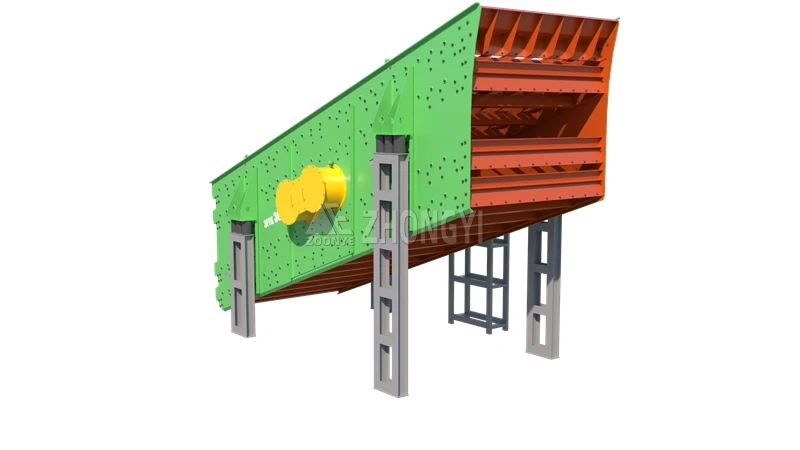

What Is an Oil Lubricated Vibrating Screen?
FYK Oil Lubricated Mining Vibrating Screen is a high-performance circular vibrating screen designed for screening stone, ore, coal, and other bulk materials in mining, quarrying, and aggregate production plants. It is suitable for high capacity operations and continuous production environments where stable material classification is required. For processing heavily contaminated run-of-mine materials with high clay content, this screening stage is commonly preceded by an intensive rotary heavy duty trommel screen machine to achieve thorough material washing and prevent fine mesh blinding.
The bearings are lubricated by a circulating oil system instead of grease. Oil continuously flows through the bearings and carries away heat during operation, helping maintain a lower bearing temperature. This reduces bearing wear during long running hours and makes the screen suitable for heavy duty crushing and screening lines with continuous production demands.
How an Oil Lubricated Vibrating Screen Works

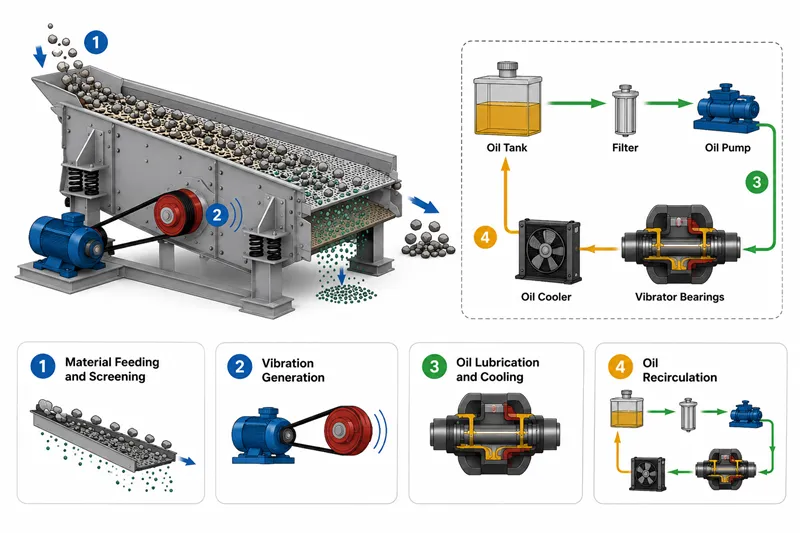

The Oil-Lubricated Mining Vibrating Screen separates materials by size through continuous circular vibration. During operation, the oil circulation system lubricates and cools the vibrator bearings to support continuous operation in mining and aggregate plants.
- Material Feeding and Screening
Material is fed onto the screen deck and moves forward under vibration. Fine material passes through the screen openings, while oversized material moves to the discharge end. This continuous sorting stage is standardly configured to receive the multi-size discharged rock fractions straight from primary mining jaw crusher units.
- Vibration Generation
The motor drives the vibrator through a V belt. The rotating eccentric block generates circular vibration across the entire screen surface.
- Oil Lubrication and Cooling
Oil is continuously supplied to the vibrator bearings during operation. As it flows through the bearings, it reduces friction and removes heat generated by vibration.
- Oil Recirculation
The oil returns to the lubrication unit after passing through the bearings. After filtration and cooling, it is circulated back into the system.
Features
FYK Oil Lubricated Mining Vibrating Screen uses an oil circulation lubrication system to reduce bearing heat and wear during screening. It features stable operation, lower maintenance frequency and reliable performance for heavy-duty aggregate and mining production lines.
High Capacity Screening Performance
Multi-layer screen design supports large processing capacity and stable material grading. Suitable for quarry, mining and large aggregate crushing plants with continuous high-load screening.
Oil Lubrication System
Circulating oil continuously removes friction heat from bearings and vibrators. Compared with grease lubrication, it reduces temperature rise, lowers failure rate and extends bearing service life.
Integrated Vibrator Structure for Easy Maintenance
The vibrator adopts an integrated structure for faster disassembly and replacement. Maintenance time is shortened, reducing production downtime and improving operating efficiency.
Heavy Duty Weld-Free Screen Structure
Side plates use cold-formed steel plate without welding to avoid cracking risks. High-strength bolted structure improves machine durability and supports long-term stable operation.
Specifications
FYK Oil Lubricated Mining Vibrating Screen is available in multiple models for aggregate, mining and coal screening applications. Different screen sizes, layers and capacities can match various production line requirements and material grading demands.
| Model | Layers | Screen Area (㎡) | Inclination (°) | Frequency (r/min) | Double Amplitude (mm) | Capacity (m³/h) | Motor Power (kW) |
| F5YK1548-2P | 2 | 7.2 | 17.5 | 970 | 6–8 | 28–270 | 15 |
| F5YK1860-3P | 3 | 10.8 | 20 | 970 | 6–8 | 32–350 | 18.5 |
| F5YK2160-4P | 4 | 12.6 | 20 | 970 | 6–8 | 40–720 | 30 |
| P5YK2475-3P | 3 | 18 | 20 | 840 | 6–8 | 60–850 | 37 |
| F5YK3072-4P | 4 | 21.6 | 20 | 840 | 6–8 | 80–1080 | 45 |
| F5YK3280-3P | 3 | 25.6 | 20 | 840 | 6–8 | 100–1200 | 2×37 |
| F5YK3680-3P | 3 | 28.8 | 20 | 800 | 8–10 | 149–1620 | 2×45 |
| F5YK4095-3P | 3 | 38 | 20 | 840 | 8–10 | 200–1800 | 2×75 |
Specifications are for reference only. Final equipment selection should be based on material characteristics, processing capacity, and operating conditions. Contact Zhongyi for customized screening solutions and technical support.
Applications
The FYK vibrating screen is used to separate and classify bulk materials by size.It is widely used in quarry, mining, coal, and building material plants with capacities ranging from less than 100 T/H to more than 1,000 T/H. The oil circulation system supports continuous operation in production lines running 16–24 hours per day.
Oil Lubricated vs Grease Lubricated Vibrating Screens
Oil and grease lubrication are the two most common lubrication methods used in mining vibrating screens. Oil lubrication is typically used in large-scale screening plants with long operating hours, while grease lubrication is more common in smaller production lines. The table below highlights the main differences between the two systems.
| Item | Oil-Lubricated Screen | Grease-Lubricated Screen |
|---|
| Lubrication Method | Circulating oil system | Grease lubrication |
| Bearing Cooling | Continuous cooling during operation | Limited cooling effect |
| Bearing Temperature | Lower during long running hours | Higher under heavy loads |
| Maintenance Frequency | Longer service intervals | More frequent lubrication required |
| Bearing Wear | Reduced bearing wear | Higher wear under continuous operation |
| Downtime | Fewer maintenance shutdowns | More maintenance-related stoppages |
| Operating Noise | Smoother running condition | May increase over time |
| Suitable Application | Large mining and aggregate plants | Small and medium production lines |
| Continuous Operation | Suitable for long-term operation | Suitable for intermittent operation |
| Initial Cost | Higher | Lower |
For production lines operating 16–24 hours per day, oil lubrication is often preferred because it provides continuous bearing cooling and requires less frequent maintenance. Grease lubrication remains a practical choice for smaller plants with lower operating hours and simpler maintenance requirements.
Projects Show
1,000 TPH Iron Ore Screening Plant – South Africa
A South African iron ore processing plant required a screening system for continuous operation. The existing screen experienced bearing overheating and frequent maintenance, affecting production stability.
Zhongyi supplied an FYK Oil-Lubricated Vibrating Screen. The oil circulation system helps control bearing temperature during long operating hours and reduces lubrication-related maintenance.
The screen has been integrated into the ore processing line and operates under high-capacity production conditions.
Capacity: 1,000 TPH
Material: Iron Ore
Feed Size: ≤300 mm
Equipment: FYK Oil-Lubricated Vibrating Screen
Application: Ore Screening
Request a Customized Solution
Partner with Xinzhongyi for expert support and tailored solutions designed to match your ore and production needs.

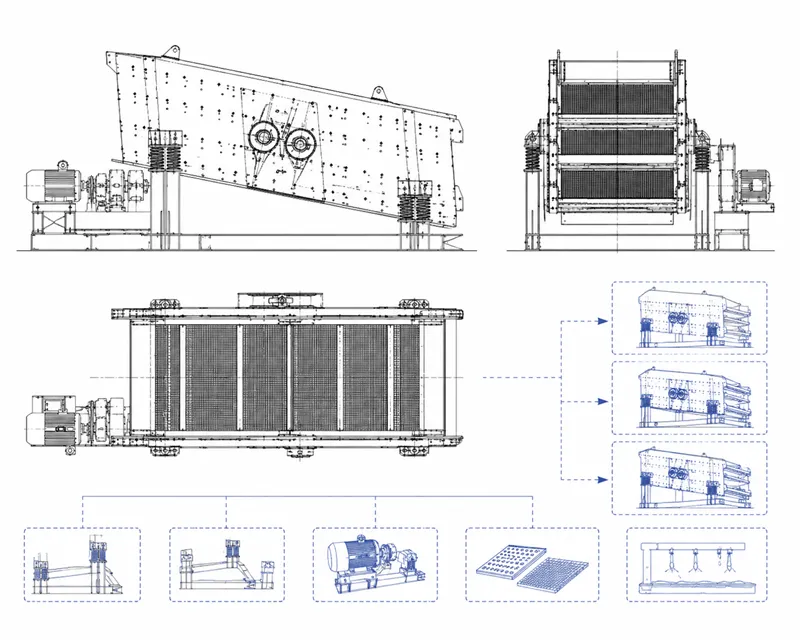

Custom Oil Lubricated Mining Vibrating Screen Solution
To receive an accurate quotation and suitable screen configuration, please provide your project details. Our engineering team will recommend the appropriate model based on your material and production requirements.
Please Provide the Following Information:
Why Choose Zhongyi as Your Vibrating Screen Manufacturer?
Zhongyi has been manufacturing mining and aggregate equipment since 2010. The company operates three production bases covering more than 300 acres, providing strong manufacturing capacity for mining, quarry, and recycling projects worldwide.
Our Oil-Lubricated Mining Vibrating Screens are designed for high-capacity and continuous operation. Advanced CNC machining equipment, welding robots, and strict production standards help ensure stable performance and long service life under demanding working conditions.
All equipment is manufactured under the ISO9001 quality management system and undergoes strict inspection before delivery. In addition to individual machines, Zhongyi provides complete crushing, screening, and conveying solutions with customized equipment selection and plant layout support.
FAQs
What materials can an Oil Lubricated Mining Vibrating Screen handle?
The screen is suitable for aggregates, iron ore, copper ore, gold ore, limestone, coal, and other bulk materials. It is commonly used in quarry plants, mining operations, and large crushing and screening lines.
What is the advantage of oil lubrication over grease lubrication?
Oil lubrication continuously cools and lubricates the bearings during operation. It helps reduce bearing temperature, supports longer running hours, and requires less frequent maintenance than grease-lubricated systems.
What capacity range is available?
Capacity depends on screen size, deck configuration, and material characteristics. Standard models are available for applications ranging from less than 100 T/H to more than 1,000 T/H in large production plants.
How many screening decks can be configured?
Single-deck, double-deck, and multi-deck designs are available. The number of decks depends on how many finished product sizes need to be separated during the screening process.
Is the screen suitable for 24-hour operation?
Yes. Oil-lubricated vibrating screens are widely used in continuous production environments. The circulating oil system helps remove heat from the bearings during long operating periods.
What factors should be considered when selecting a model?
Key factors include material type, processing capacity, feed size, required product sizes, operating hours, and site conditions. These parameters determine the most suitable screen size and configuration.
What parts require regular maintenance?
Routine maintenance mainly includes checking the oil circulation system, screen panels, fasteners, vibration components, and drive system. Regular inspection helps maintain stable operation and reduce unexpected downtime.
Can Zhongyi provide customized vibrating screens?
Yes. Zhongyi provides customized solutions based on material characteristics, capacity requirements, plant layout, and operating conditions. Complete crushing, screening, and conveying systems are also available.
