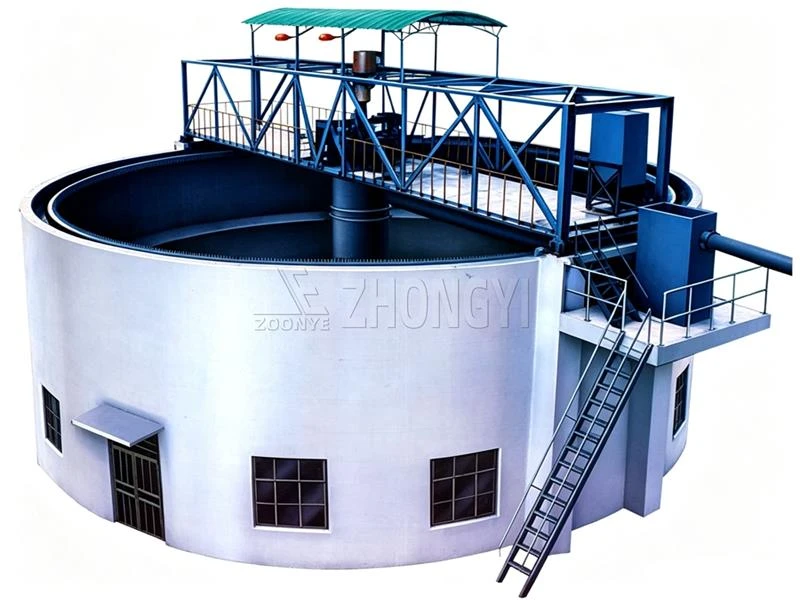

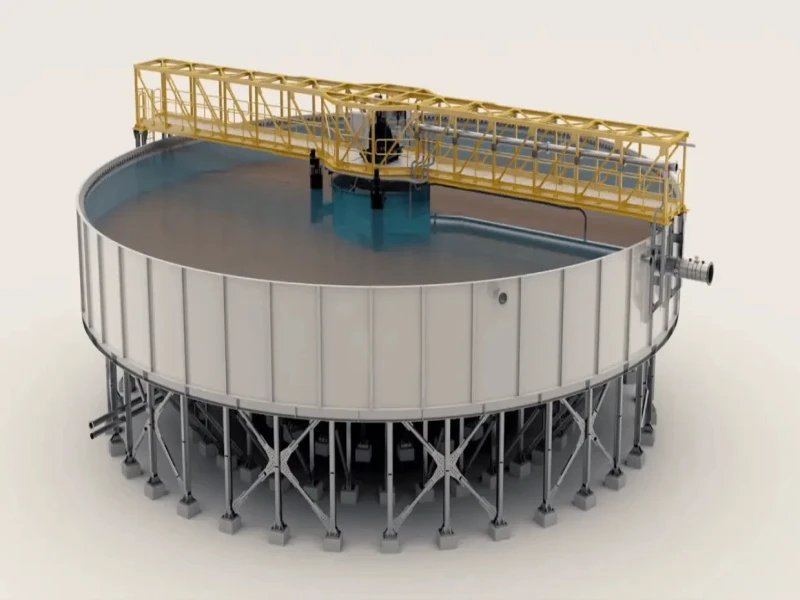

What Is a Mining Thickener?
A mining thickener is a key mineral processing equipment used for solid-liquid separation in mining operations. It concentrates slurry by separating solid particles from water through gravity settling, increasing underflow density and recovering clarified overflow water. As a mineral processing thickener, it is commonly applied in concentrate thickening and tailings treatment circuits for metals, minerals, and other mining materials.
During operation, slurry enters the thickener tank through the feedwell, where solid particles settle to the bottom while clarified water overflows from the upper section. The rake system collects and compresses the settled solids before discharge, producing concentrated underflow slurry for further processing or disposal. This slurry thickening process helps reduce water consumption and improves downstream handling efficiency. Zhongyi Mining provides customized mining equipment solutions based on ore characteristics, processing capacity, and project requirements.
Work Principle
A mineral processing thickener separates solids from slurry through gravity settling. The slurry enters the thickener through the feedwell, where solid particles settle in the tank, rake arms collect and compress the settled solids, and clarified water overflows for recovery and reuse.

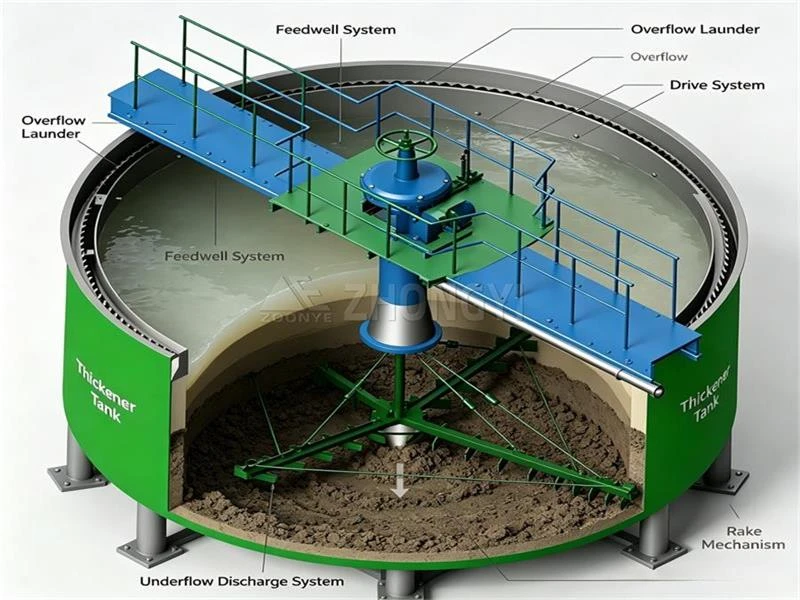

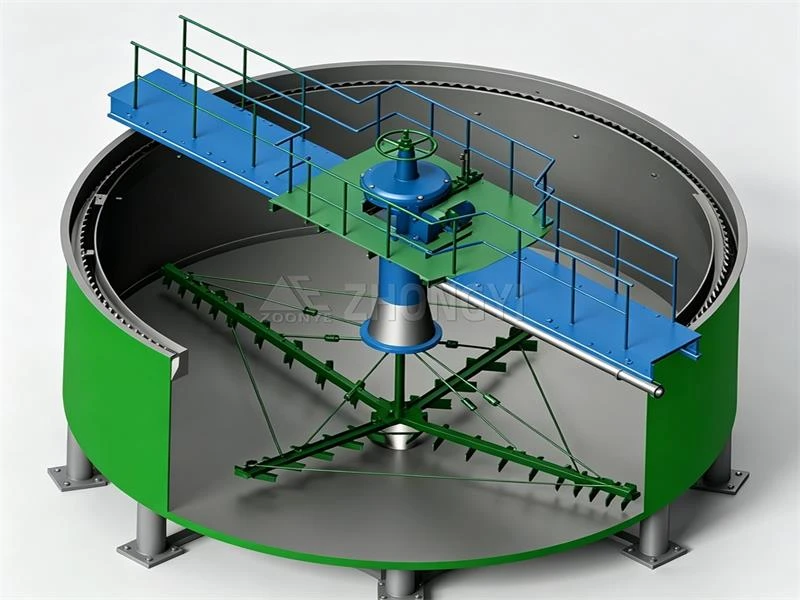

Main Components
A tailings thickener consists of a tank, feedwell, rake mechanism, drive system, and discharge units. These components work together for solid-liquid separation, slurry thickening, and process water recovery in mineral processing plants.
Thickener Tank
The circular tank provides the main settling area for solid-liquid separation. Settled solids collect at the bottom, while clarified water moves upward to the overflow section.
Feedwell System
The feedwell distributes slurry evenly below the surface, reducing turbulence and maintaining stable settling conditions in the thickener tank.

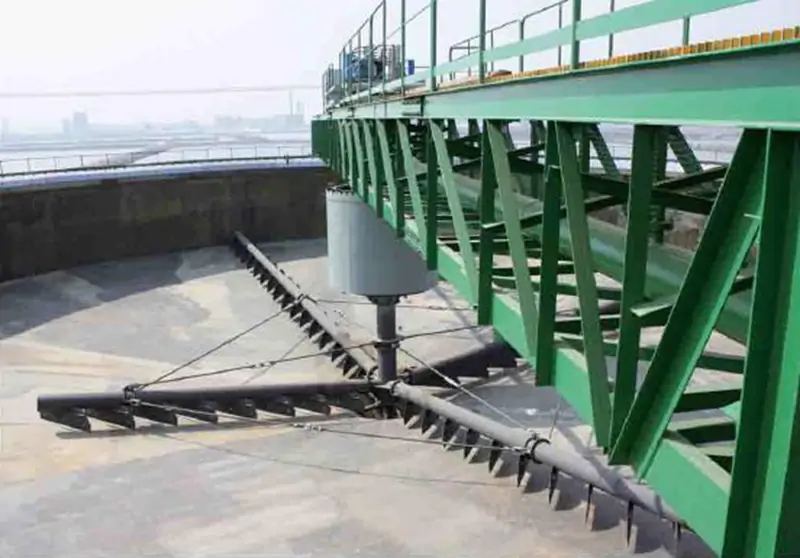

Rake Mechanism
Rake arms move settled solids toward the center discharge point and compress the slurry to increase underflow density without disturbing the clarification zone.
Drive System
The drive system powers rake rotation during operation. Center drive and peripheral drive designs are selected according to tank size and processing requirements.
Overflow Launder
The overflow launder collects clarified water with low suspended solids content and returns it to the processing circuit for reuse.
Underflow Discharge System
The discharge system removes high-density underflow slurry from the tank bottom for filtration, concentrate handling, or tailings treatment.

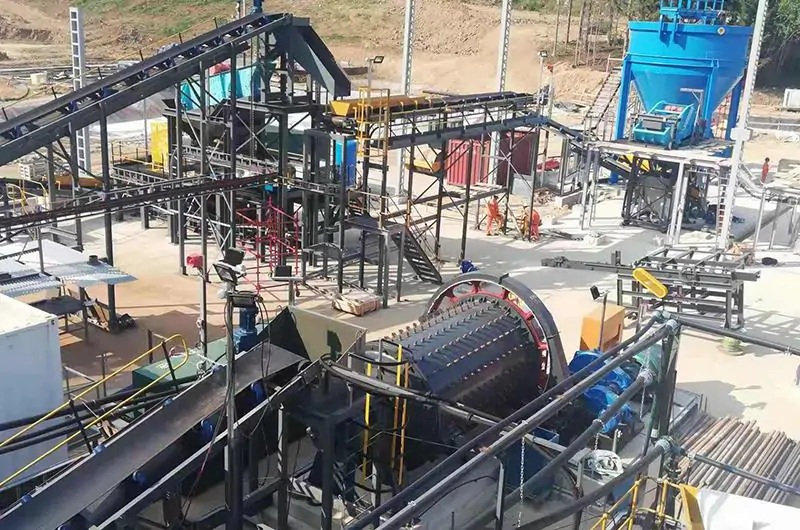

Mineral Processing Flotation Production Line
Specifications
Mining thickeners are designed with different tank sizes, settling areas, and drive configurations to match various processing capacities. The standard range covers small to large-scale mineral processing applications, with specifications customized according to ore conditions and plant requirements.
Core Technical Specifications
| Model | Tank Diameter (m) | Tank Depth (m) | Settling Area (m²) | Rake Speed (r/min) | Motor Model | Motor Power (kW) | Capacity (t/d) | Weight of Tank (kg) | Total Weight (t) |
| NZS1 | 1.8 | 1.8 | 2.55 | 0.5 | Y90L-6 | 1.1 | 1.3–5.6 | — | 1.3 |
| NZS2.5 | 2.5 | 1.8 | 4.9 | 0.33 | Y90L-6 | 1.1 | 5–10.8 | 1095 | 2.4 |
| NZS3 | 3.6 | 1.8 | 10.2 | 0.33 | Y90L-6 | 1.1 | 5–22.4 | 1730 | 3 |
| NZS6 | 6 | 2.95 | 28 | 0.3 | Y90L-4 | 1.5 | 14–62 | 4032 | 8.7 |
| NZS8 | 8 | 3.318 | 50.2 | 0.27 | Y132S-6 | 3 | 30–100 | 11065 | 17 |
| NZS9 | 9 | 3 | 63.5 | 0.25 | Y132S-6 | 3 | 32–150 | 12188 | 22.7 |
| NZS12 | 12 | 3.6 | 113 | 0.19 | Y132S-6 | 3 | ≤250 | 24060 | 33.1 |
Note
Final thickener specifications depend on ore properties, slurry concentration, processing capacity, and plant layout.
Advantages
Mining thickener improve mineral processing by increasing slurry concentration, recovering process water, and supporting efficient tailings treatment. As essential slurry thickener equipment, they provide high underflow density, stable operation, and customized solutions for different mineral processing applications.
Applications
Mining thickeners are installed in mineral processing circuits after flotation, magnetic separation, and tailings systems. They are mainly used for concentrate thickening, tailings dewatering, and process water recovery through solid-liquid separation.
Factors Affecting Tailings Thickener Performance
Tailings Thickener performance depends on slurry characteristics, feed conditions, and operating parameters. Particle size, concentration, ore properties, and flocculant selection directly affect settling efficiency, overflow clarity, and underflow density.

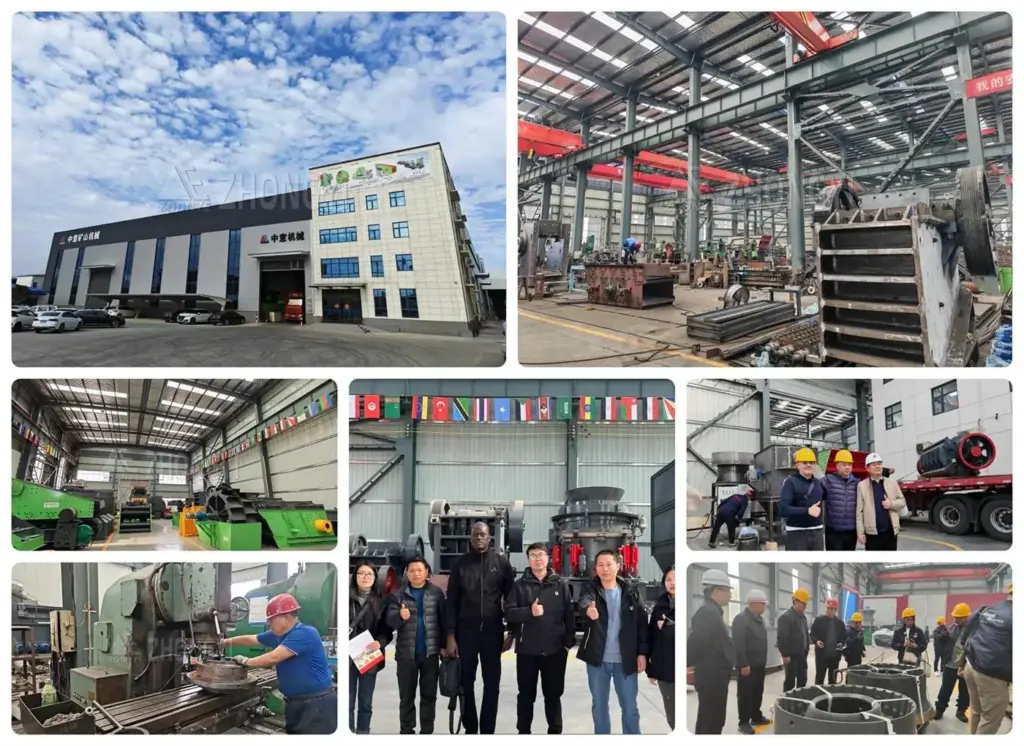

Why Choose Zhongyi?
Zhongyi Mining has been manufacturing mining and mineral processing equipment since 2010, with over 16 years of experience in equipment production and engineering services. We provide mining thickener solutions for concentrate thickening, tailings dewatering, and process water recovery. With ISO9001 certification, advanced manufacturing facilities, and mineral processing expertise, we ensure stable equipment quality and reliable project delivery.
Our engineering team provides customized thickener solutions based on slurry properties, processing capacity, and plant requirements. From equipment sizing and structural design to manufacturing, installation guidance, and commissioning support, Zhongyi Mining helps customers achieve efficient solid-liquid separation and stable operation in different mining applications.
Get the Right Thickener Solution for Your Plant
Tell us your processing capacity and slurry conditions. Our engineering team will recommend a customized thickener system for your mineral processing operation.
Customize Solutions
Zhongyi Mining designs and manufactures customized mineral processing thickener according to slurry characteristics, processing capacity, and plant conditions. We provide support for thickener selection, sizing calculation, structural design, and process integration to match concentrate thickening, tailings dewatering, and water recovery requirements.
Please Provide the Following Information:
FAQs
How do I choose the right mining thickener for my project?
The selection of a mining thickener depends on slurry properties, processing capacity, feed concentration, particle size, and required underflow density. Project conditions such as installation space and downstream equipment should also be considered. Zhongyi Mining can recommend a suitable thickener design based on specific process requirements.
What capacity can a mining thickener handle?
Mining thickener capacity depends on tank diameter, settling area, slurry characteristics, and processing requirements. Different models are available for small, medium, and large-scale mineral processing plants. The final capacity is determined through material testing and process calculation to match actual production conditions.
What materials can be processed by a mining thickener?
Mining thickeners are widely used for mineral slurries from gold, copper, iron ore, lead-zinc, coal, and other mining operations. They are mainly applied for concentrate thickening, tailings dewatering, and process water recovery in mineral processing plants.
What underflow concentration can a mining thickener achieve?
The achievable underflow concentration depends on ore type, particle size, slurry properties, and thickener design. In many applications, mining thickeners can increase solids concentration to approximately 40–70%. Deep cone and high rate thickeners can achieve higher density underflow when required.
What information is needed for a customized mining thickener?
To design a suitable mining thickener, customers should provide material type, processing capacity, feed slurry concentration, particle size distribution, target underflow density, and project conditions. Based on this information, Zhongyi Mining can recommend the appropriate equipment configuration.
How does a mining thickener improve water recovery?
A mining thickener separates solids from water through gravity settling. The clarified overflow can be recycled back into the processing plant, reducing fresh water consumption and improving the overall efficiency of mineral processing operations.
What support does Zhongyi Mining provide after purchasing a thickener?
Zhongyi Mining provides technical support throughout the project, including equipment manufacturing, installation guidance, commissioning assistance, and operation recommendations. Our team helps ensure the thickener is properly integrated into the mineral processing system.
Why choose Zhongyi Mining as a mining thickener manufacturer?
Zhongyi Mining has been manufacturing mining and mineral processing equipment since 2010. With engineering experience, advanced manufacturing facilities, and customized design capability, we provide reliable thickener solutions for concentrate processing, tailings treatment, and water recovery applications.
