What Is a Rotary Vacuum Drum Filter?
A Rotary Vacuum Drum Filter (RDVF), also known as a Rotary Drum Vacuum Filter, is a continuous solid-liquid separation machine that removes liquid from slurry under vacuum. During drum rotation, filtration, cake washing, dewatering, drying, and discharge are completed in a continuous cycle, making it suitable for high-capacity industrial filtration processes.
The equipment features continuous operation, stable filtration performance, and automatic cake discharge, making it suitable for mining, mineral processing, wastewater treatment, chemical, coal, and other industrial applications. Zhongyi Mining provides customized rotary drum vacuum filter solutions according to material properties, capacity requirements, and project conditions, with support covering equipment design, manufacturing, installation, and commissioning.
Working Principle

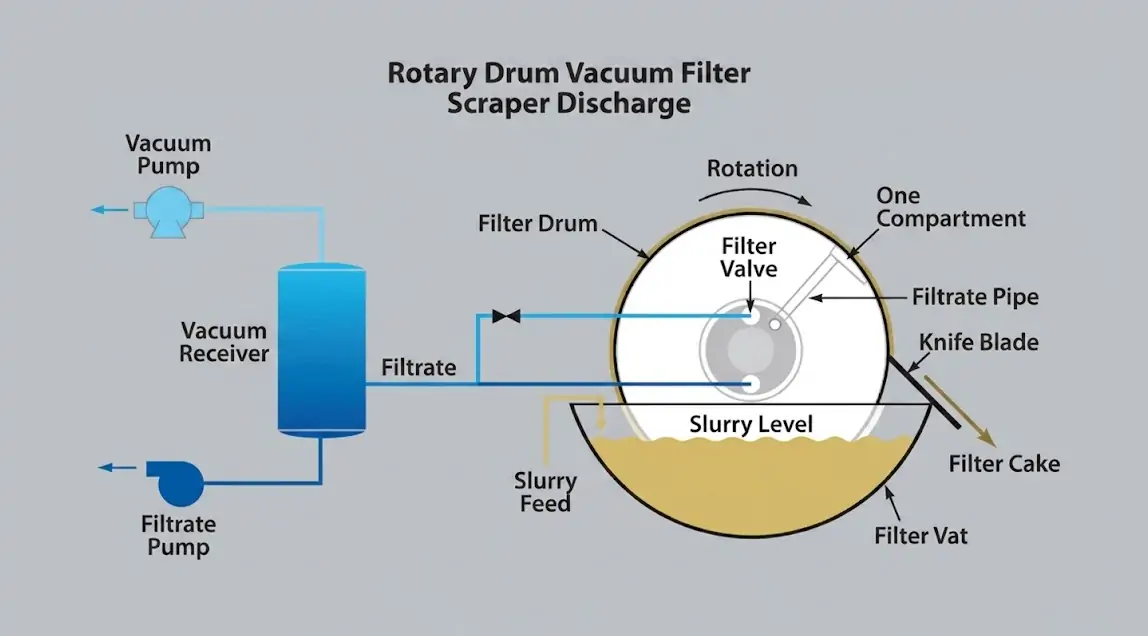

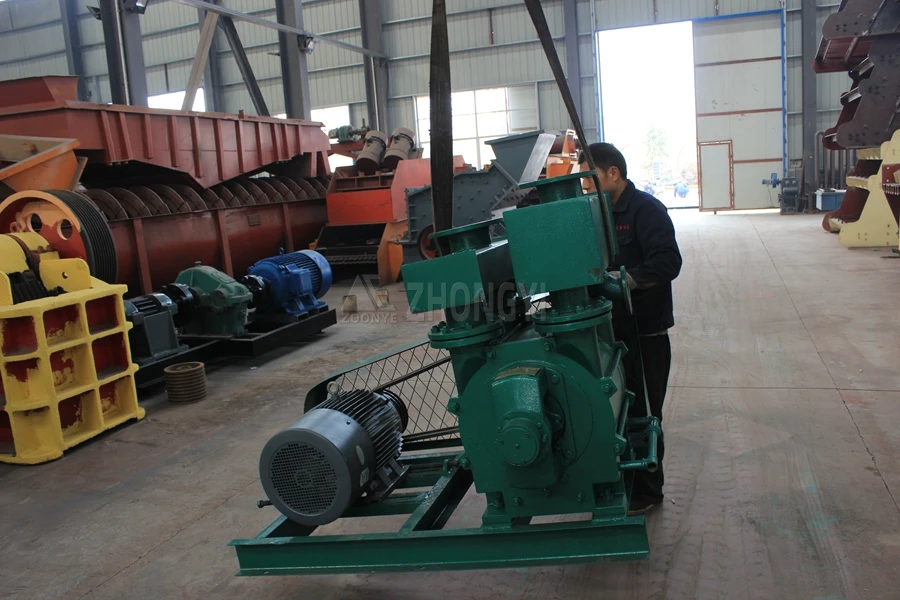

A Vacuum Drum Filter separates solids from slurry through a continuous vacuum filtration process. The main components include a rotating drum, filter cloth, vacuum system, distribution valve, and discharge mechanism. During operation, the drum rotates partially immersed in the slurry tank, and vacuum pressure draws liquid through the filter cloth while solid particles remain on the drum surface to form a filter cake.
The filtration process includes slurry feeding, vacuum filtration, cake formation, washing and drying, and filter cake discharge. Different discharge systems are selected according to material properties, including scraper discharge for general applications, roll discharge for sticky cakes, string discharge for fragile thin cakes, and belt discharge for wet cakes requiring filter cloth washing. This continuous process provides stable solid-liquid separation for mining, chemical, wastewater, and industrial applications.

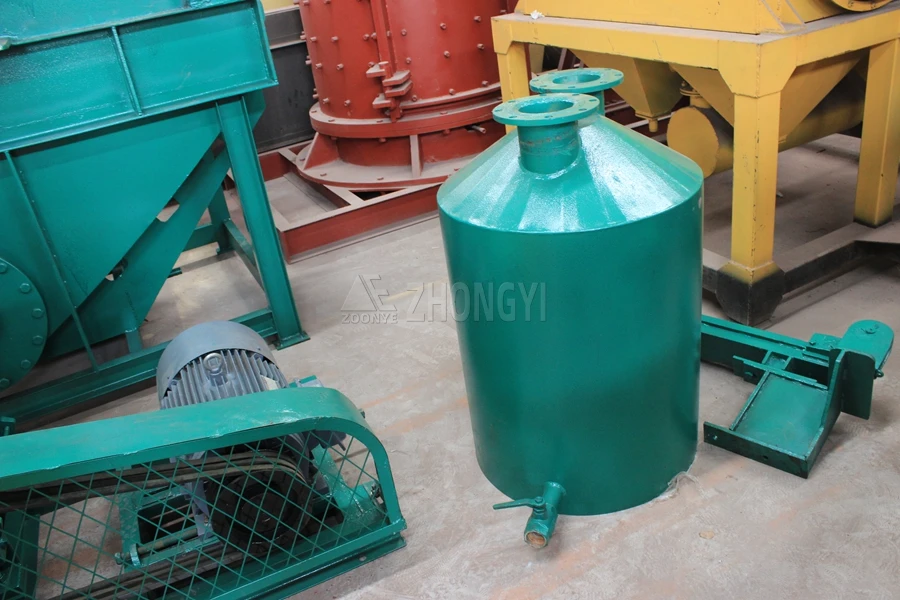

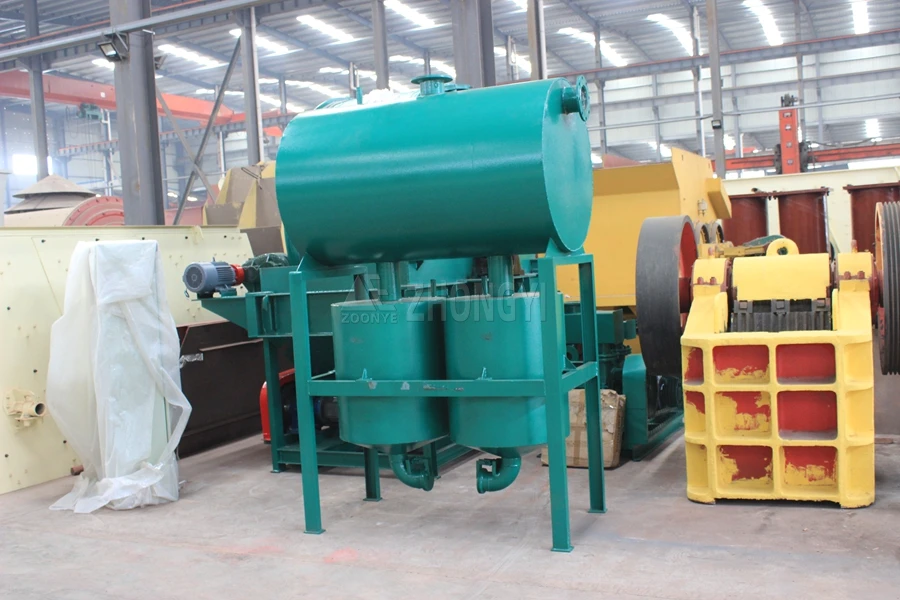

Main Components of Vacuum Drum Filter
A Rotary Vacuum Drum Filter achieves continuous solid-liquid separation through the coordinated operation of the rotating drum, filter cloth, distribution valve, slurry tank, and discharge system. Zhongyi Mining designs and manufactures vacuum drum filter with optimized component structures to ensure stable filtration performance, reliable operation, and customized solutions for different industrial applications.
Rotating Drum
The main filtration unit, covered with filter cloth and divided into filter chambers. It rotates through filtration, washing, drying, and discharge zones.
Distribution Valve
Controls vacuum and air flow in each filter chamber to maintain continuous filtration cycles.
Filter Cloth and Fixing System
Separates solids from liquids by allowing liquid to pass through while retaining solid particles to form filter cake.
Slurry Tank
Stores slurry and maintains uniform material suspension during filtration.
Cake Discharge System
Removes filter cake from the drum surface through scraper or air blowback discharge methods.
Specifications
Rotary Vacuum Drum Filter performance depends on slurry properties, filtration capacity, drum size, filtration area, vacuum system, and discharge configuration. The following specifications provide key parameters for equipment selection in mineral processing and industrial filtration applications.
| Parameter Category | Specification | Typical Range |
| Structure Size | Drum Diameter | 2.3 – 10.8 m |
| Filtration Area | 3 – 80 m² | |
| Number of Filter Chambers | 12 – 36 chambers | |
| Operating Conditions | Drum Rotation Speed | 0.1 – 3 rpm (Adjustable) |
| Operating Vacuum Pressure | 0.045 – 0.065 MPa | |
| Drum Immersion Depth | Approx. 30% – 40% of filtration area | |
| Filtration Performance | Filtration Capacity | 600 – 1000 kg/(m²·h) |
| Filter Cake Thickness | 20 – 40 mm (Standard); <10 mm for difficult-to-filter slurry |
Note: Final configuration varies with slurry properties, capacity, and filtration requirements. Zhongyi Mining customizes drum size, filtration area, and system parameters for stable filtration performance.
Advantages

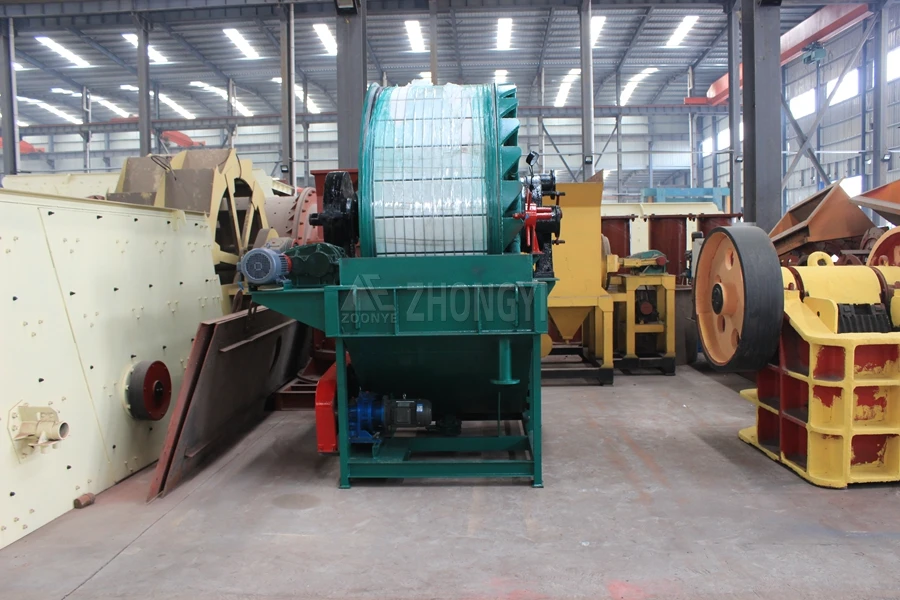

Rotary Vacuum Drum Filter Types
Zhongyi Mining supply a full lineup of industrial rotary vacuum drum filters tailored to mineral dewatering, tailings treatment and industrial slurry separation scenarios. Our core offering covers mainstream models including scraper discharge external rotary vacuum drum filters (the standard mining unit shown above), rope discharge, pre-coat and ceramic rotary vacuum drum filters, with customizable drum diameters from 2.3 m to 10.8 m and filtration areas ranging 3–80 m² to match small, medium and large processing plants.
Scraper Discharge External Rotary Vacuum Drum Filter
This is the most mainstream rotary vacuum drum filter for mineral processing. Filter cloth wraps the outer drum surface; the drum rotates half-submerged in slurry tank. A fixed scraper blade strips thick solid filter cake after vacuum dewatering. Our mining rotary vacuum drum filter belongs to this category, with drum diameter 2.3–10.8m and filtration area 3–80m².
- Advantages: Low manufacturing & maintenance cost, stable continuous operation, large filtration area range, easy filter cloth replacement, high throughput for medium-coarse mineral slurry.
- Disadvantages: Not fit for ultra-thin, sticky filter cake; scraper may wear filter cloth long-term.
- Best For: Iron ore, copper concentrate, coal slurry, tailings treatment, large-scale mine solid-liquid separation.

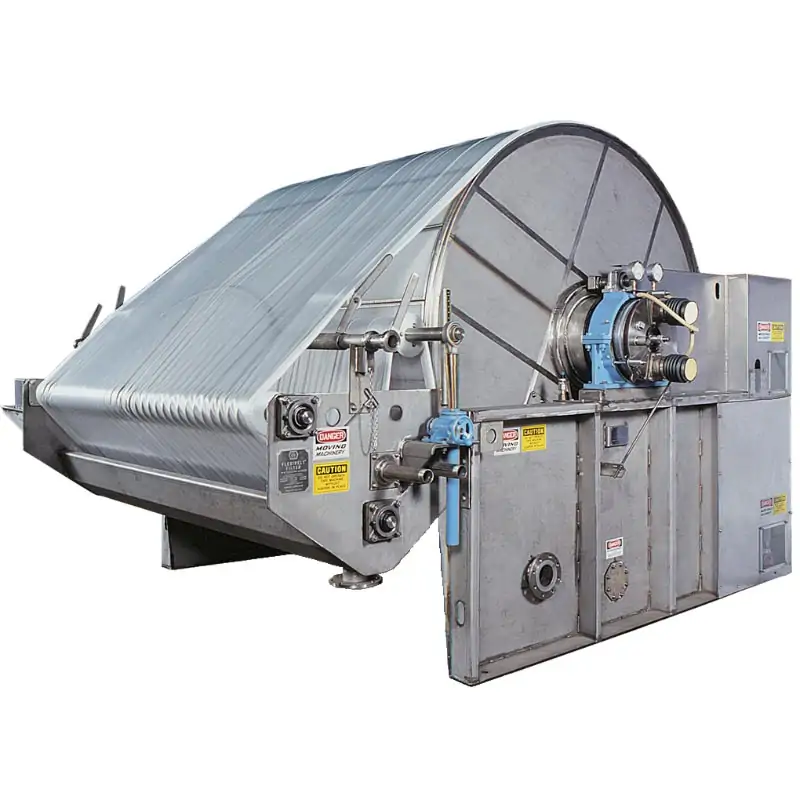

String/Rope Discharge Rotary Vacuum Drum Filter
Instead of scrapers, endless plastic ropes wrap around the drum surface to lift thin sticky filter cake off filter cloth. Vacuum suction removes water, then ropes carry cake to discharge point without hard scraping.
- Advantages:Minimal filter cloth abrasion, handles thin, adhesive sludge that scraper types cannot peel cleanly.
- Disadvantages:Ropes need regular replacement, lower single-machine processing capacity, higher daily upkeep labor.
- Best For:Clay slurry, fine chemical sludge, low-concentration flotation pulp, clients who need to protect expensive filter cloth.

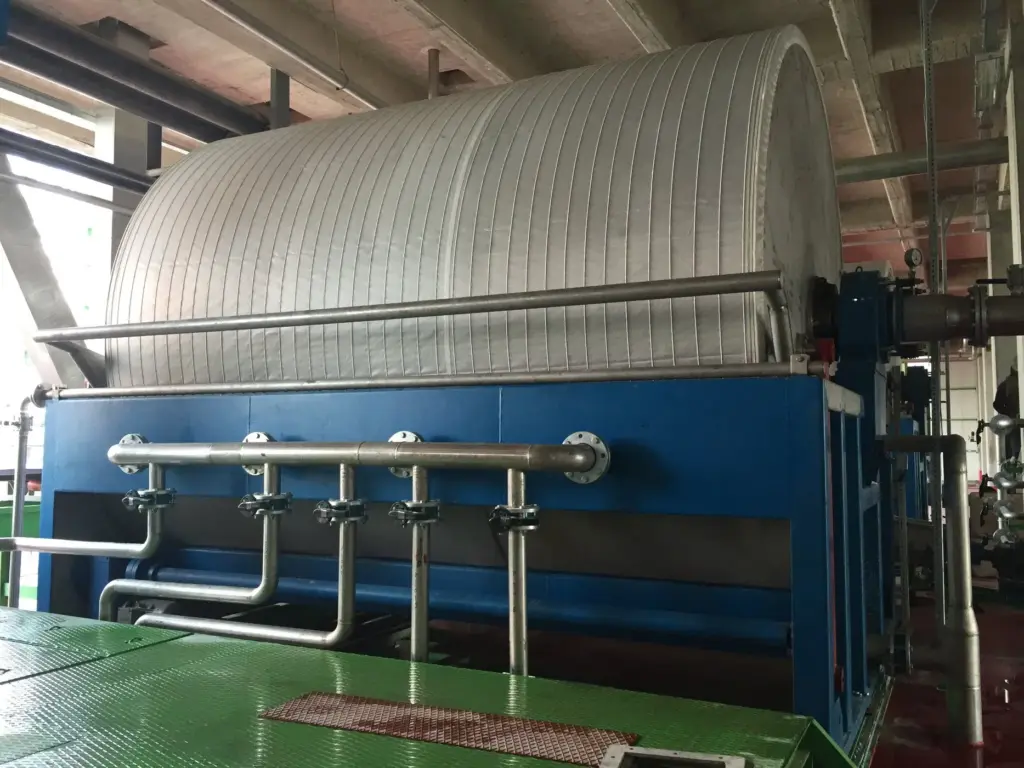

Pre-Coat Rotary Vacuum Drum Filter
Before filtration, a pre-coat layer of diatomite/perlite is laid evenly on the drum filter cloth. It intercepts micro-fine particles that penetrate ordinary filter cloth. Widely searched by chemical & wastewater plant buyers.
- Advantages:Excellent filtration effect for ultrafine suspended solids, produces clear filtrate, works for low-solid-content liquid.
- Disadvantages:Extra pre-coat material consumption, longer preparation time, not for high-concentration mineral slurry with coarse grains.
Best For:Chemical solvent filtration, pharmaceutical slurry, industrial sewage with tiny particles, edible oil refining.

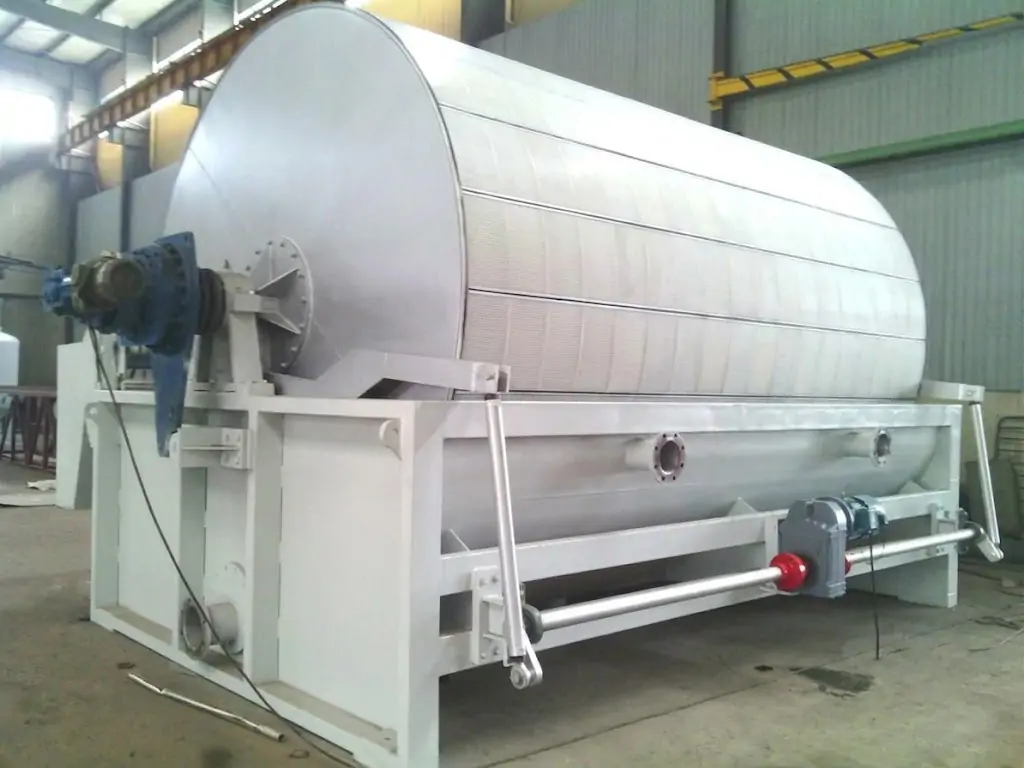

Ceramic Rotary Vacuum Drum Filter (High-end mineral concentrate type)
Replace traditional textile filter cloth with porous ceramic plates as filtering medium. Rely on capillary vacuum force to separate mineral water; a special scraper removes dry concentrate cake. High-intent search term for metal mineral mines.
- Advantages:Extremely low cake moisture, energy-saving, corrosion-resistant, long service life of ceramic plates, no filter cloth replacement cost.
- Disadvantages:High initial equipment investment, narrow filtration area range, cannot process large granular tailings.
- Best For:Gold, lead-zinc, tungsten fine concentrate dewatering, medium & high-value metal mineral concentrators pursuing low moisture rate.

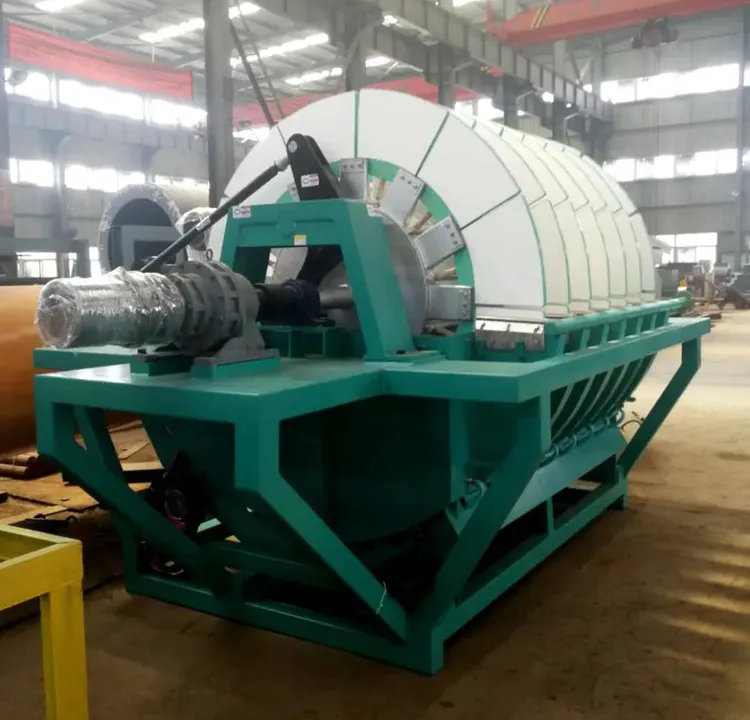

Belt Discharge Rotary Vacuum Drum Filter
Equipped with an integrated movable filter belt attached to the drum surface. The belt transports formed filter cake away from the drum automatically, separating cake and filter cloth completely.
- Advantages:Zero damage to filter media, smooth discharge for soft, fragile filter cake, easy automatic cleaning.
- Disadvantages:Complex mechanical structure, higher failure rate under heavy mine slurry load.
- Best For:Food pulp, light chemical fiber slurry, low-abrasion industrial sludge, non-mining light industry filtration.
Rotary Vacuum Drum Filter Selection Guide
Selecting a rotary drum vacuum filter requires matching the equipment with material properties, filtration capacity, and final product requirements. Proper selection ensures stable filtration performance and reliable operation.
Material Characteristics
Consider particle size, solid concentration, settling characteristics, viscosity, and corrosiveness. Different materials require suitable filter cloth, filtration configuration, and construction materials.
Required Filtration Capacity
Processing capacity determines the required filtration area, drum size, and vacuum system capacity. Higher throughput requires larger filtration surfaces and optimized drum configurations.
Filter Cake Requirements
Cake moisture, washing requirements, and discharge methods affect equipment selection. Different configurations are available for applications requiring higher purity or lower moisture content.
Operating Environment
Temperature and corrosive conditions determine material selection, sealing design, and equipment configuration. Zhongyi Mining provides suitable solutions for different operating conditions.
Applications

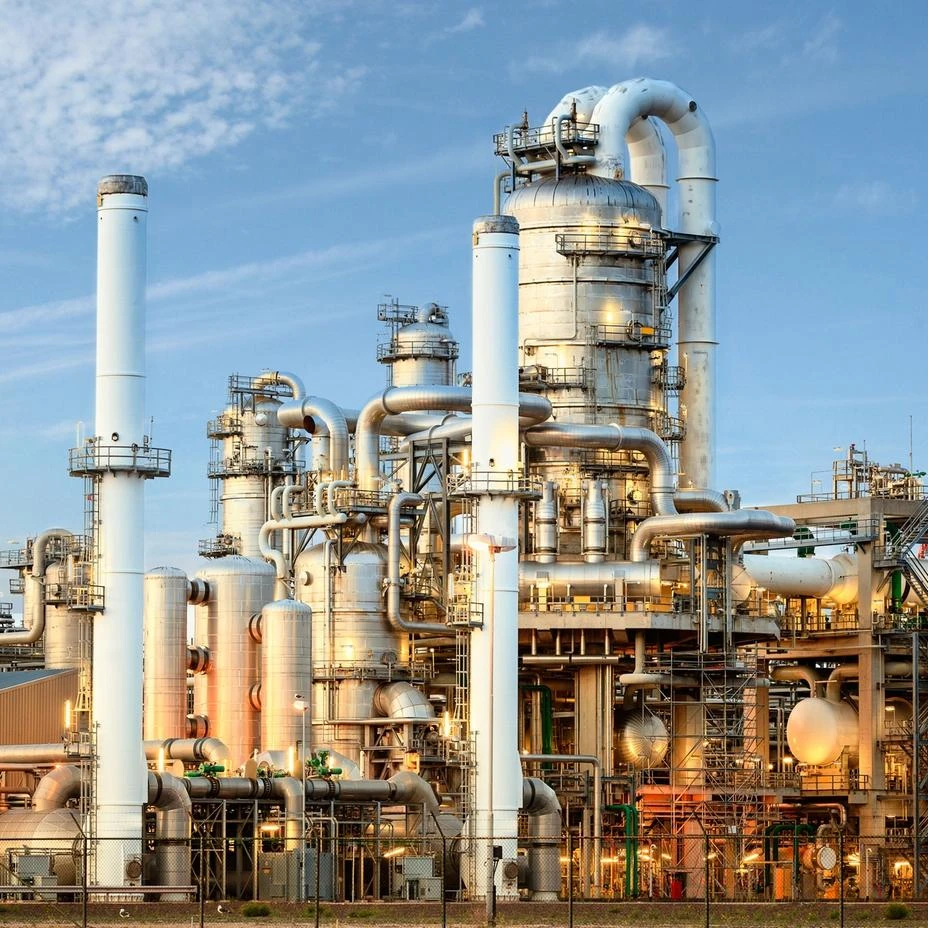

The vacuum drum filter is used for continuous solid-liquid separation, slurry dewatering, and material recovery. It is widely applied in mining, metallurgy, chemical processing, wastewater treatment, and other industries requiring continuous filtration.

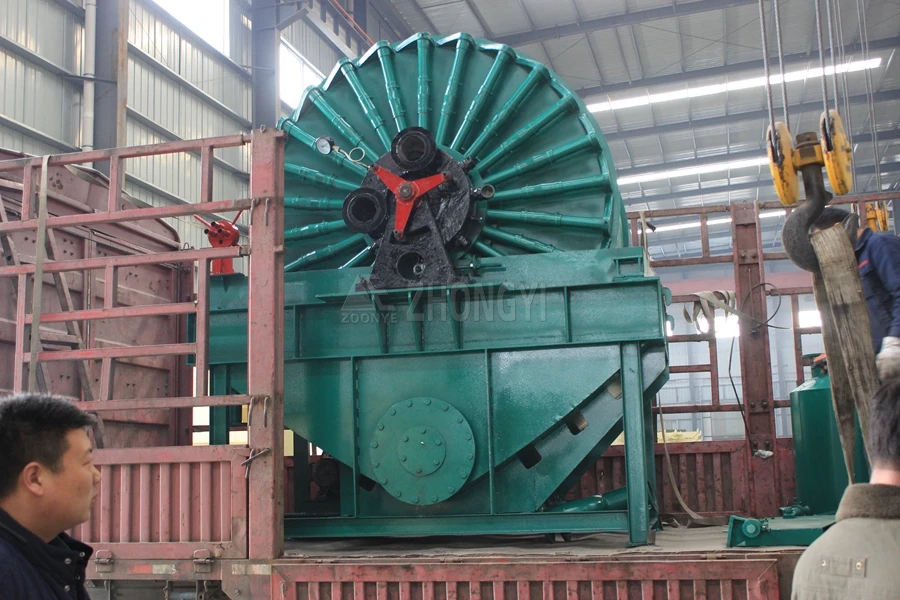

Customer Site
Why Choose Xinzhongyi?
Zhongyi Mining rotary vacuum drum filters are designed for continuous solid-liquid separation in mining, metallurgy, wastewater, and industrial filtration applications. Since 2010, China Zhongyi Mining Machinery Co., Ltd has focused on mining equipment manufacturing and mineral processing solutions, with practical experience in slurry treatment, concentrate dewatering, and tailings processing projects.
As a direct manufacturer, we provide complete vacuum drum filter solutions, including equipment selection, filtration process design, drum configuration, filter cloth selection, and discharge system optimization. Our engineers customize each unit according to material characteristics, processing capacity, and operating conditions.
With 3 manufacturing bases, advanced CNC machining centers, welding robots, and strict quality control procedures, Zhongyi Mining ensures reliable equipment performance from material inspection and fabrication to final testing. We provide complete project support including installation guidance, commissioning, technical service, and spare parts supply for global customers.
Request a Customized Solution
Tell us your material, capacity, and filtration requirements. Our engineers will recommend a Rotary Vacuum Drum Filter solution tailored to your process.
Custom Rotary Vacuum Drum Filter Solutions
Zhongyi Mining provides customized Rotary Vacuum Drum Filter solutions based on slurry properties, capacity requirements, and operating conditions. We optimize drum size, filter cloth, vacuum system, and discharge configuration, with complete support from design and manufacturing to installation and commissioning.
FAQs
What is a Rotary Vacuum Drum Filter?
A Rotary Vacuum Drum Filter is a continuous solid-liquid separation machine that uses vacuum pressure to separate liquid from slurry. The rotating drum covered with filter cloth collects solid particles, forms filter cake, and completes filtration, drying, washing, and discharge during continuous operation. It is widely used in mining, metallurgy, chemical, and industrial filtration processes.
How does a Rotary Vacuum Drum Filter work?
The equipment works by rotating the drum through a slurry tank while applying vacuum pressure inside the filter chambers. Liquid passes through the filter cloth, and solid particles remain on the drum surface to form filter cake. The cake is then dried and removed through scraper, roller, string, or belt discharge systems.
What materials can be processed by a Rotary Vacuum Drum Filter?
Rotary Vacuum Drum Filters are mainly used for slurry materials requiring continuous dewatering and filtration. Typical applications include iron ore concentrate, copper concentrate, tailings, coal slurry, chemical slurry, industrial sludge, and other solid-liquid separation processes.
What factors should be considered when selecting a Rotary Vacuum Drum Filter?
Selection depends on material characteristics, processing capacity, and filtration requirements. Important factors include particle size, solid concentration, slurry viscosity, corrosiveness, required cake moisture, washing requirements, and operating conditions. Zhongyi Mining provides customized configurations based on actual project requirements.
How does Zhongyi Mining customize Rotary Vacuum Drum Filter solutions?
Zhongyi Mining designs filtration solutions based on slurry properties, capacity requirements, and operating conditions. We customize drum size, filter cloth, vacuum system, and discharge configuration, and provide support from equipment manufacturing and testing to installation guidance and commissioning.
What information is required before selecting a Rotary Vacuum Drum Filter?
To select the suitable equipment, customers should provide material type, particle size, solid concentration, slurry viscosity, processing capacity, cake moisture requirement, washing requirements, temperature, and installation conditions. These parameters help determine the correct filtration area, configuration, and operating performance.
