Introduction
A Stone Crusher Plant is an integrated production line designed to convert raw stones into high-quality aggregates through a series of crushing, screening, and conveying processes. It is widely used in construction, mining, highways, railways, and concrete production industries. This solution is characterized by high automation, flexible configuration, and stable output, making it suitable for projects of different scales and materials.

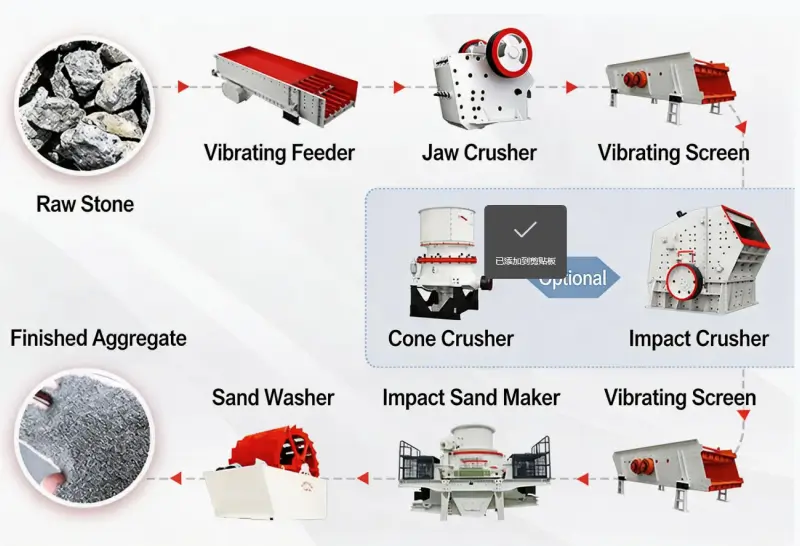

The stone crushing production line primarily consists of a vibrating feeder, a jaw crusher (primary crushing), a cone crusher or impact crusher (secondary and tertiary crushing), a vibrating screen, and belt conveyors. Depending on production requirements, a sand-making machine can be added to perform shaping and fine crushing functions. The entire production line features a compact structure and stable operation, supporting multi-stage crushing and closed-circuit screening to ensure excellent particle shape and reasonable gradation of the final product. Additionally, it can be equipped with dust collection systems and automated control systems to enhance environmental performance and production efficiency.
Zhongyi Solution
Different materials require different crushing strategies. Zhongyi designs targeted solutions to ensure efficiency, durability, and product quality.
Hard Rock Crushing (Granite, Basalt)
Hard rock processing requires strong crushing force and wear-resistant equipment.
- Recommended configuration: Jaw crusher + Cone crusher
- Advantages: High crushing efficiency for hard materials, reduced wear through laminated crushing, stable operation under heavy load
Medium Hard Materials (Limestone, Dolomite)
For medium hardness materials, the focus is on output and particle shape.
- Recommended configuration: Jaw crusher + Impact crusher
- Advantages: High reduction ratio, excellent cubic particle shape, lower investment cost
River Stone & Pebbles
River stones are hard and often mixed with soil or impurities, requiring pre-treatment.
- Recommended configuration: Feeder (with pre-screening) + Cone crusher + Vibrating screen
- Optional: Sand making machine & washing system
- Advantages: Improved crushing efficiency, clean finished aggregates, better grading control
Construction Waste Recycling
Recycled materials require flexible and impurity-resistant systems.
- Recommended configuration: Mobile crushing plant + Impact crusher
- Advantages: Magnetic separator, handles mixed materials efficiently, reduces environmental impact, suitable for urban projects
Production Line Equipment
The efficient operation of a stone crushing plant depends on the coordinated performance of multiple core pieces of equipment. Zhongyi provides comprehensive, systematic solutions by scientifically matching each piece of equipment.
Typical recommended equipment includes vibrating feeders for controlled feeding, jaw crushers for primary size reduction, cone or impact crushers for secondary and tertiary crushing, and multi-layer vibrating screens for precise classification. For advanced applications, sand making machines and dust control systems can be added to enhance product quality and environmental compliance.
Vibrating Grizzly Feeder
The vibrating grizzly feeder ensures continuous and uniform feeding of raw materials into the crusher while removing fine materials in advance.
- Stable and adjustable feeding speed
- Reduces load on primary crusher
- Improves overall efficiency
Parameters:
Feed size: ≤800 mm
Capacity: 80–600 TPH
Jaw Crusher (Primary Crushing)
The jaw crusher is used for coarse crushing, breaking large rocks into manageable sizes.
- Strong crushing force
- Simple structure and easy maintenance
- Suitable for all hardness levels
Parameters:
Feed size: ≤1000 mm
Output size: 100–300 mm
Capacity: 50–800 TPH
Cone Crusher (Secondary Crushing)
The cone crusher is ideal for medium and fine crushing, especially for hard materials.
- High efficiency and low wear
- Uniform particle size
- Suitable for continuous production
Parameters:
Feed size: ≤300 mm
Output size: 10–50 mm
Capacity: 100–500 TPH
European Impact Crusher
The European Impact Crusher is mainly used for shaping and secondary crushing of medium-soft materials.
- Produces high-quality cubic aggregates
- High reduction ratio and stable output
- Optimized rotor design for continuous operation
- Suitable for limestone, dolomite, and recycled concrete materials
Parameters:
Feed size: ≤800 mm
Capacity: 30–800 TPH
Vibrating Screen
The linear motion vibrating screen separates materials into different size fractions and ensures product quality.
- Multi-layer design
- High screening efficiency
- Supports closed-circuit crushing
Parameters:
Layers: 2–4
Capacity: 80–500 TPH
Output sizes: customizabl
Belt Conveyor
The belt conveyor connects all equipment, ensuring smooth material transfer across the plant.
- Continuous operation
- Flexible layout design
- Low maintenance cost
Parameters:
Width: 500–1200 mm
Length: customized
Contact Zhongyi Mining Team
Zhongyi provides complete stone crushing plant solutions, from customized production line design and high-quality equipment manufacturing to global project delivery and full technical support, ensuring long-term performance and maximum return on investment.
Our experienced team offers free solution design, equipment quotations, and plant layout planning to meet your specific project needs.

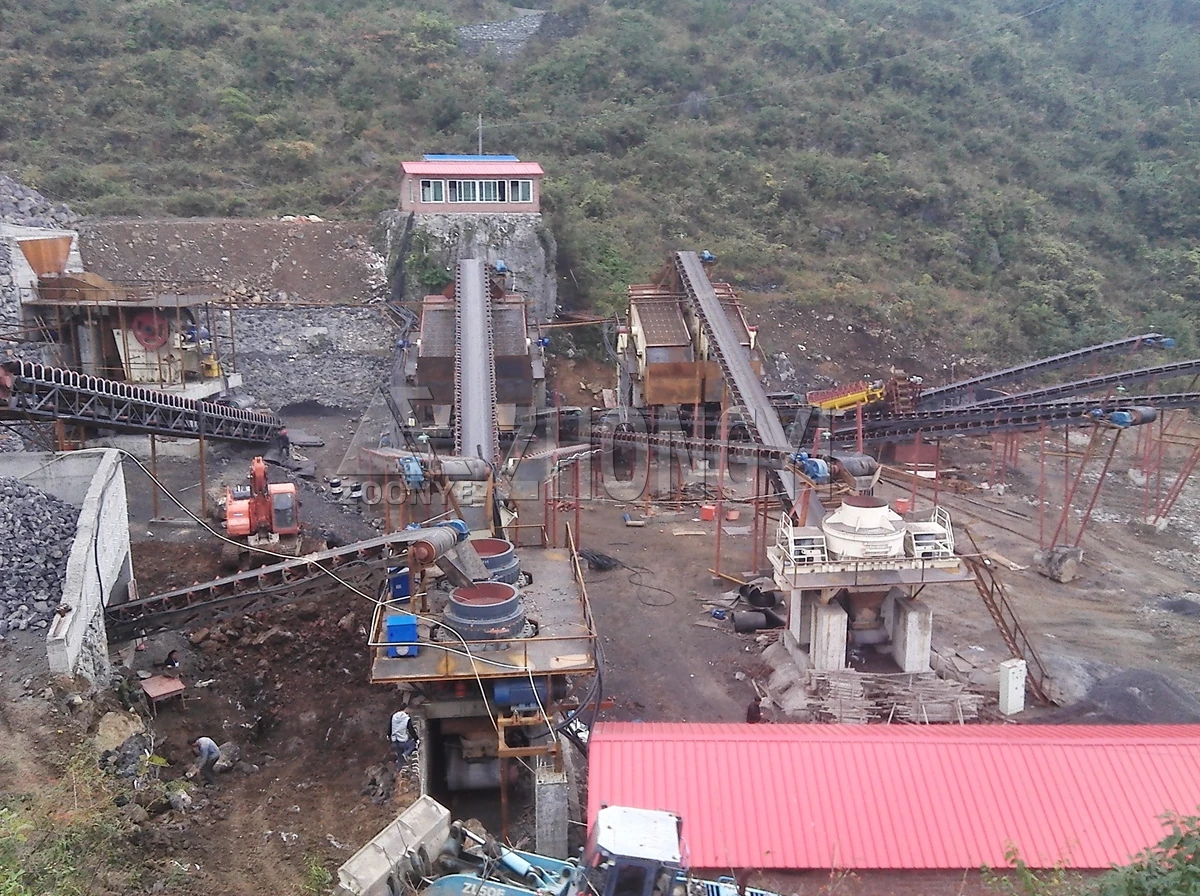

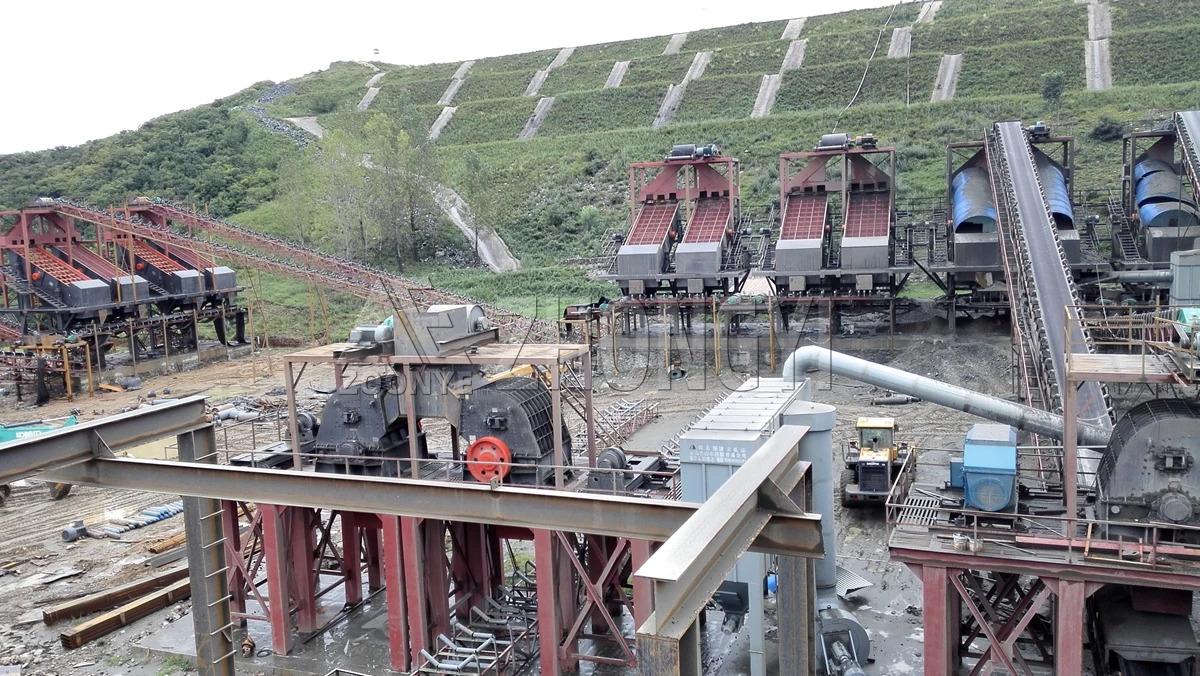

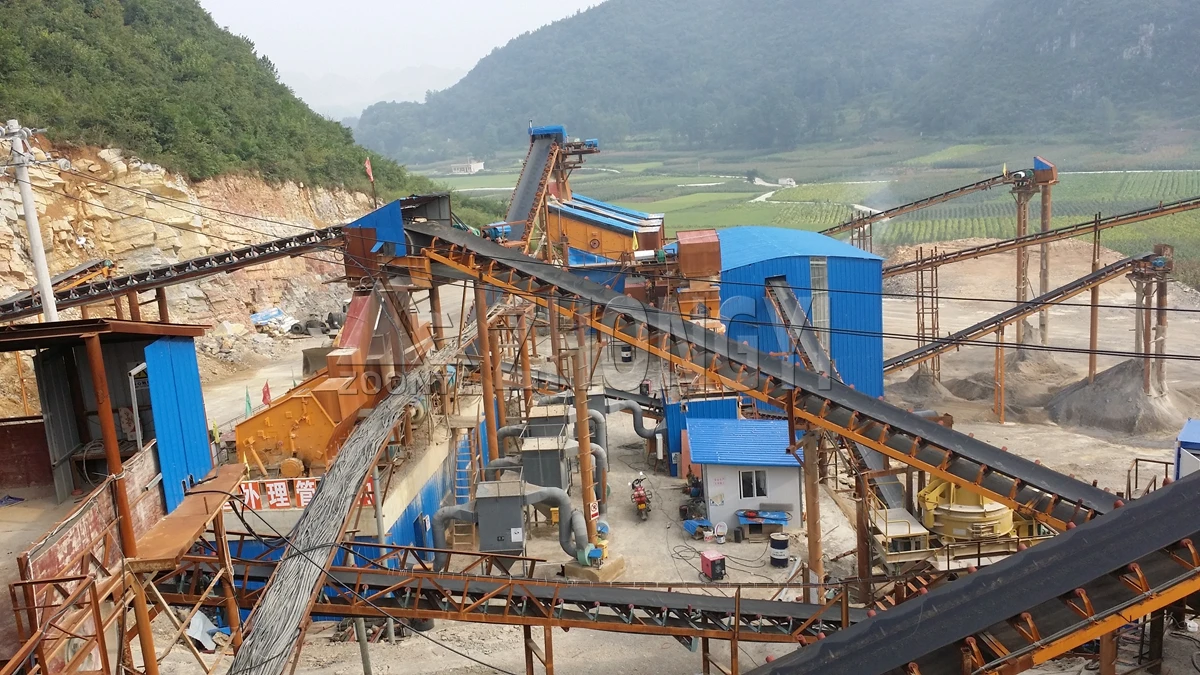

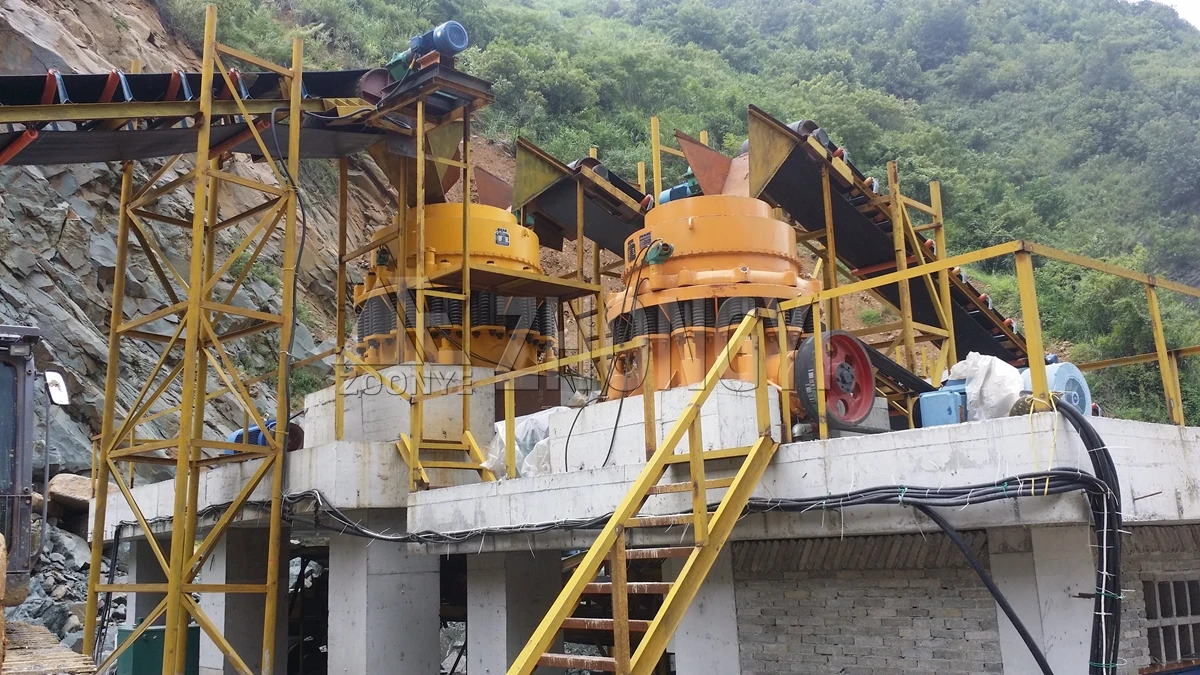

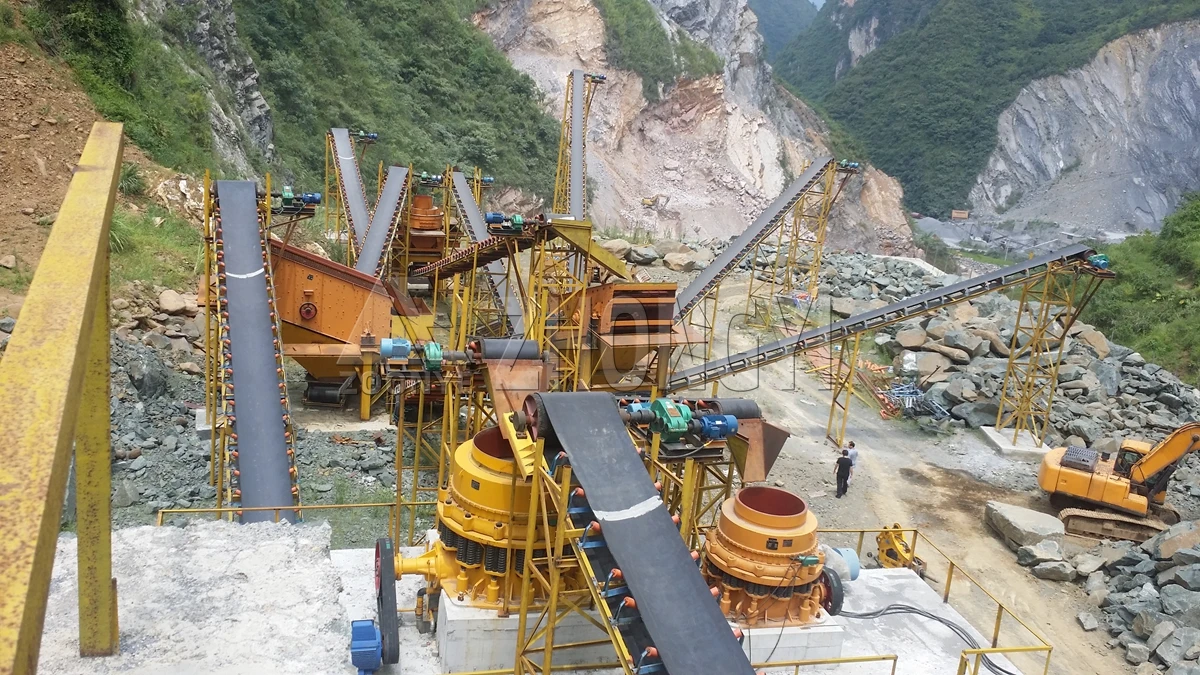

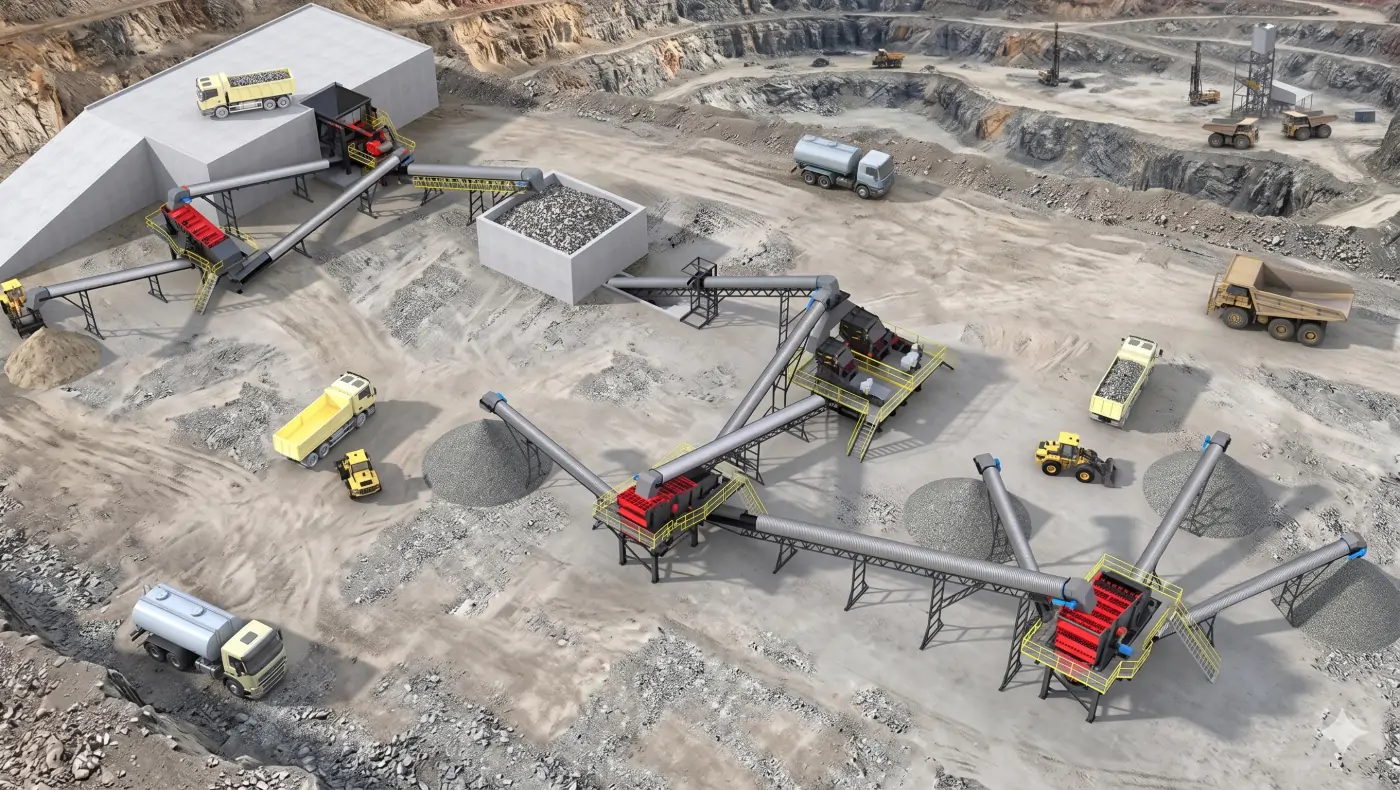

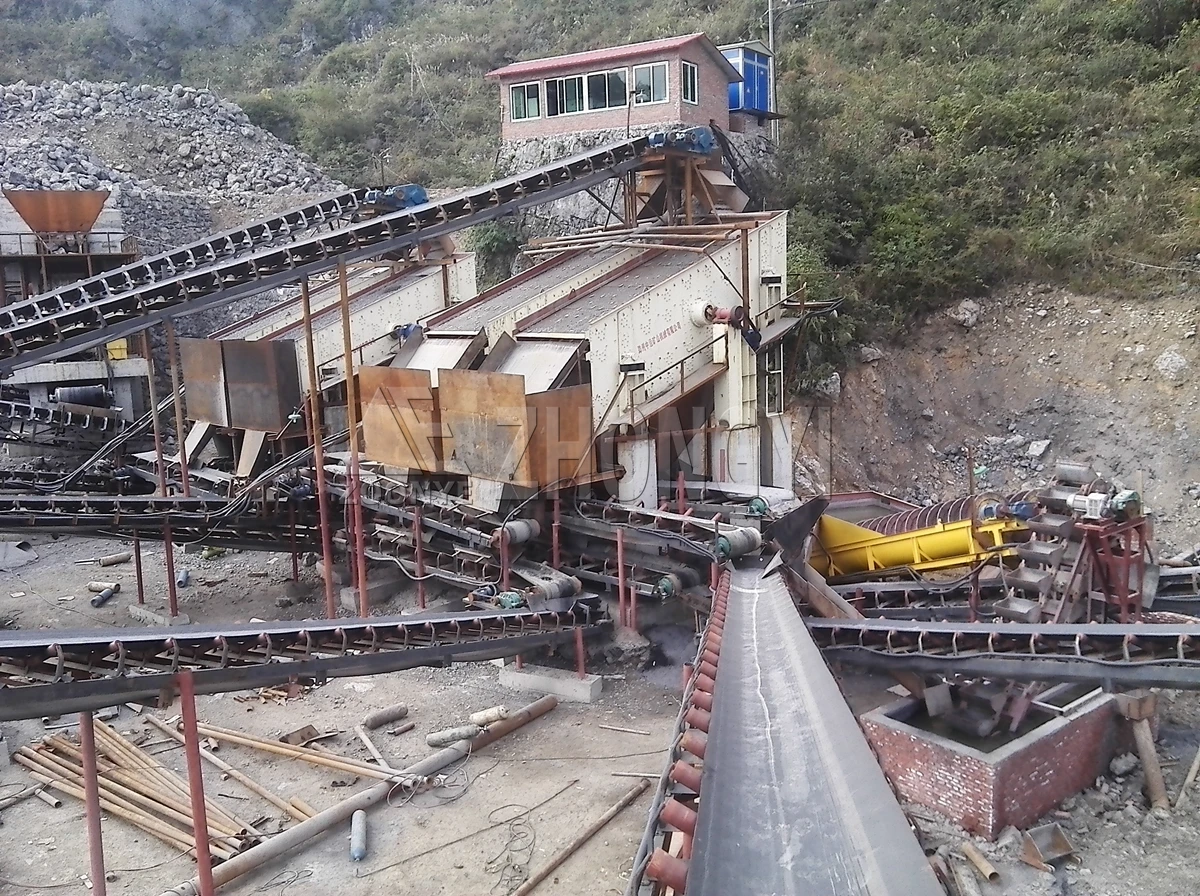

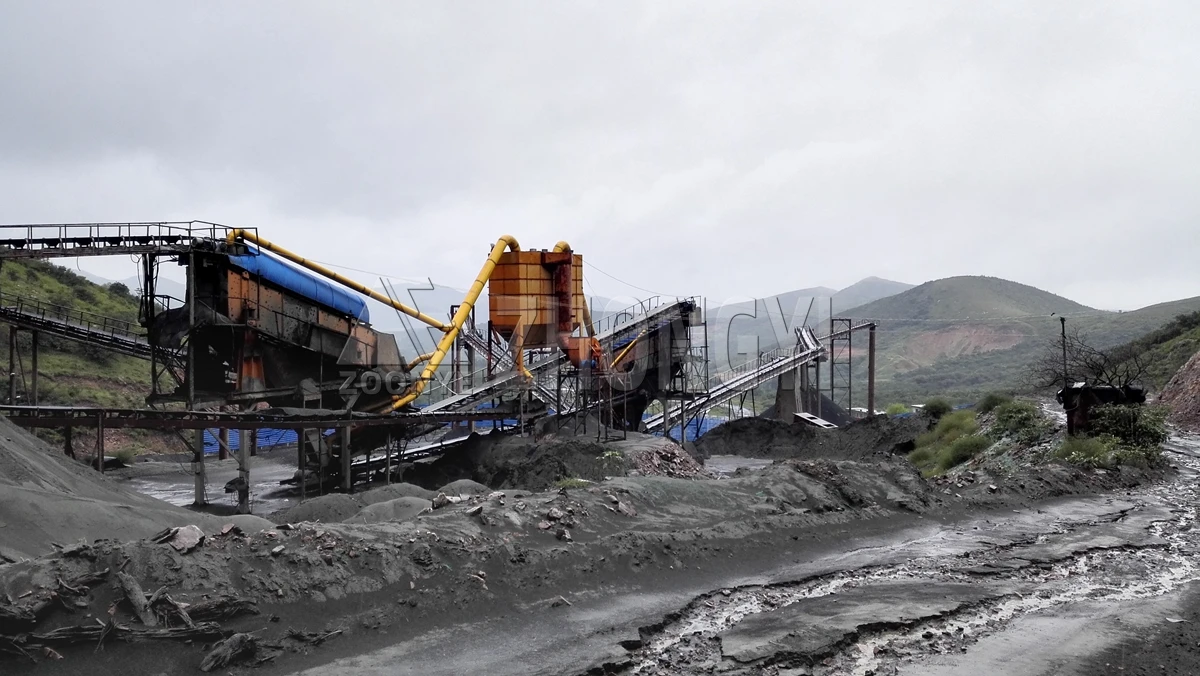

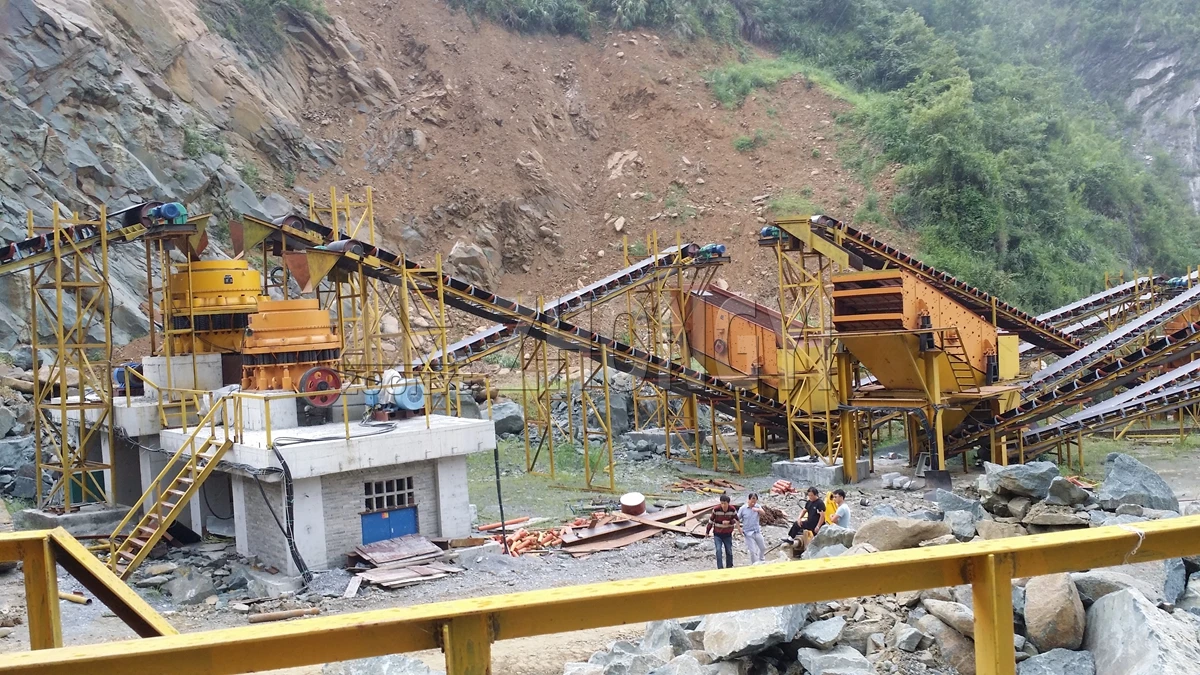

Project Site
Need help with your project needs?
Contact Zhongyi Mining today to get expert guidance and tailored mining solutions.
