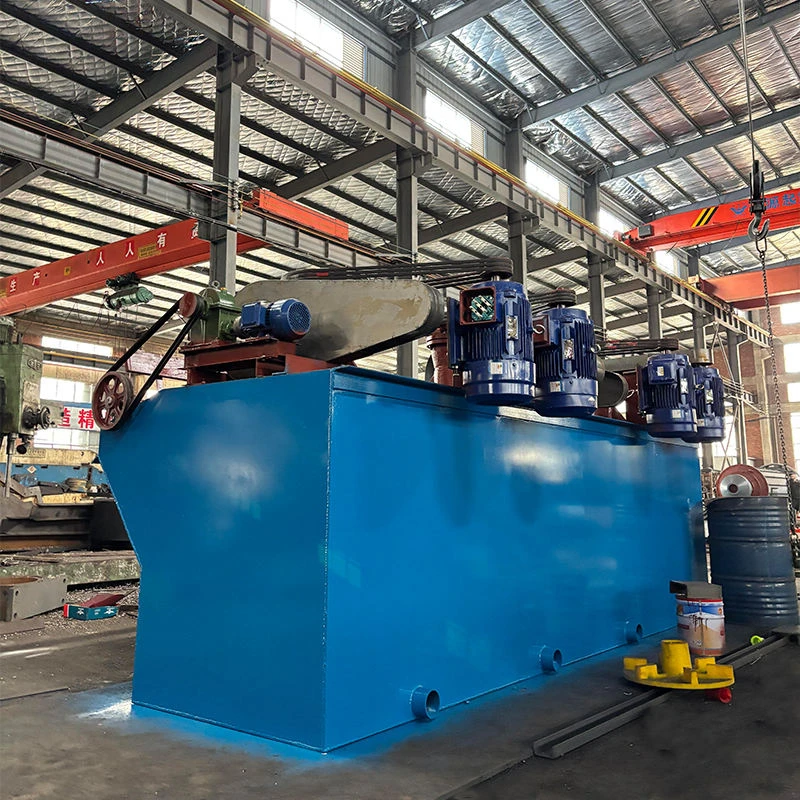

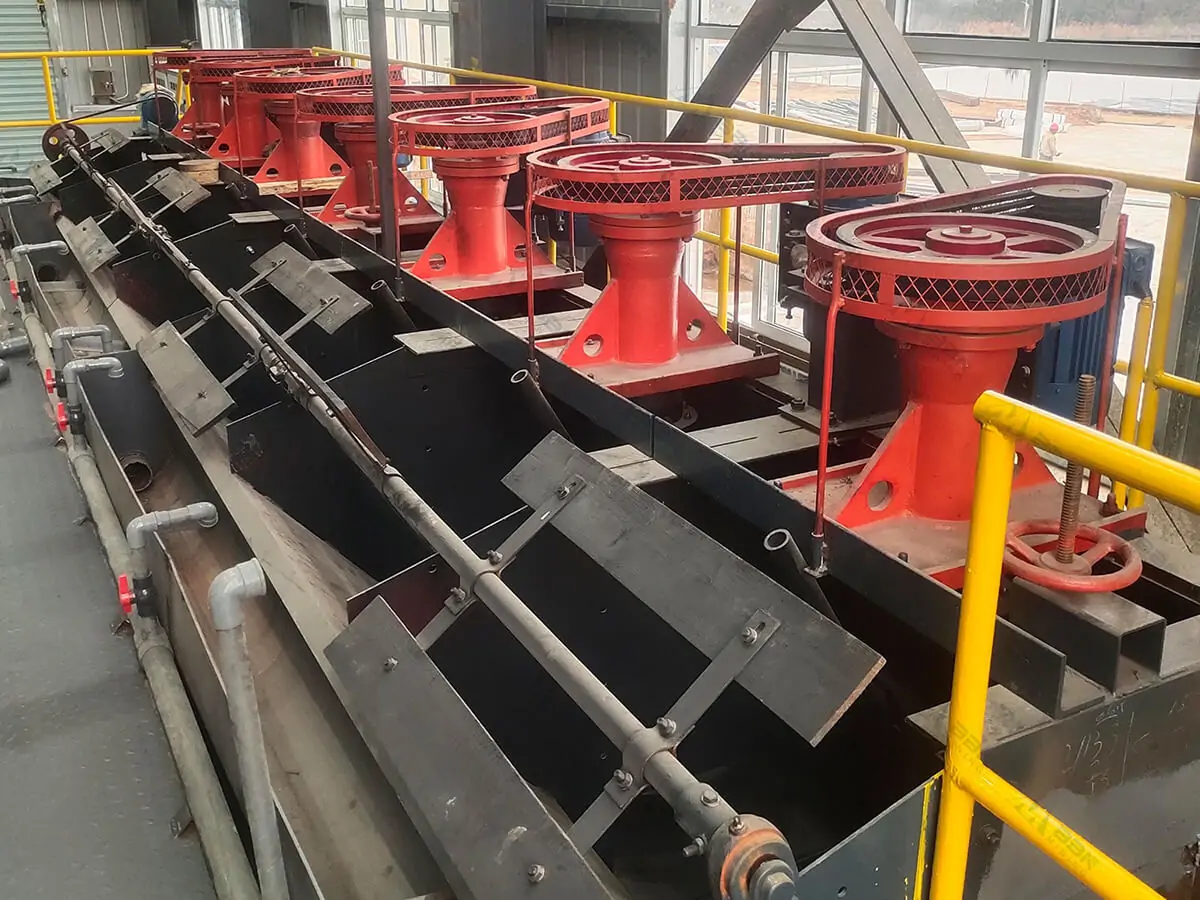

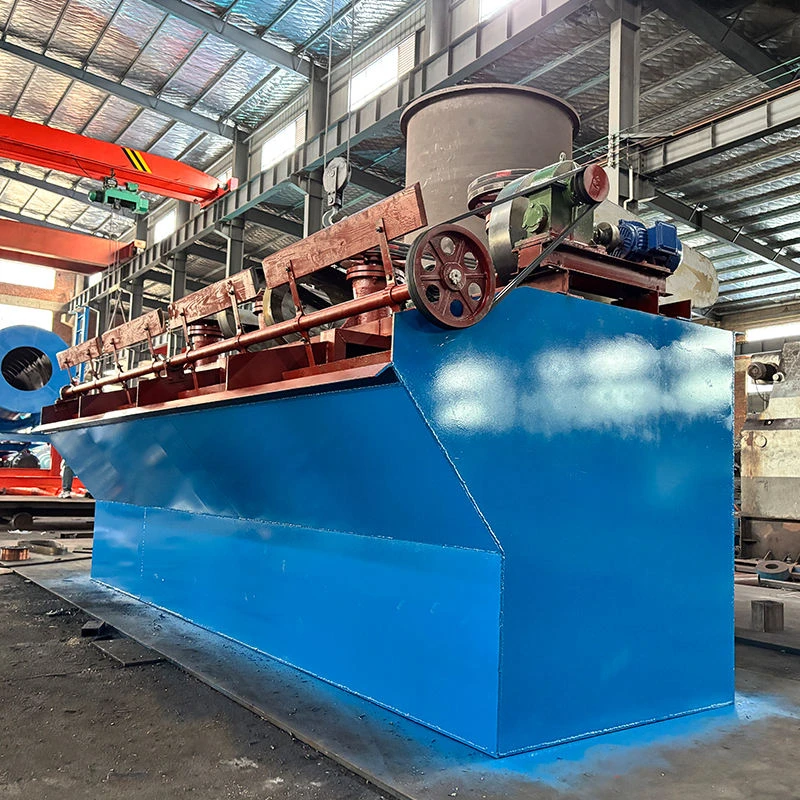

What Is XJK Flotation Machine?
XJK Flotation Machine is a mechanical flotation machine designed for mineral separation in beneficiation plants. Also known as an XJK Flotation Cell, it uses mechanical agitation and self-suction aeration to promote the attachment of valuable minerals to bubbles and separate them from gangue minerals during the flotation process.
As a widely used mineral processing flotation machine, the XJK series integrates slurry mixing, air absorption, and froth collection functions in a single unit. It is commonly applied in flotation circuits for copper, gold, lead-zinc, nickel, molybdenum, and other metallic ores, as well as non-metallic minerals such as graphite and fluorite. With a simple structure, reliable operation, and flexible configuration, XJK Flotation Machine provides a stable and cost-effective solution for different mining projects.
How Does XJK Flotation Machine Work?
The XJK Flotation Machine operates through mechanical agitation, air self-suction, and froth separation. The rotating impeller generates a negative pressure zone within the flotation cell, drawing air and ore slurry into the mixing chamber. The impeller disperses the air into fine bubbles and evenly mixes them with the slurry, enabling valuable mineral particles to attach to the bubbles and rise to the surface for concentrate recovery.
Slurry Mixing and Agitation
The ore slurry enters the XJK Flotation Cell and is thoroughly mixed by the rotating impeller. The impeller and stator work together to enhance slurry circulation and agitation, ensuring effective mixing of ore particles, air bubbles, and flotation reagents. This creates stable conditions for the selective separation of valuable minerals.
Air Self-Suction and Bubble Formation
Driven by the motor, the impeller of the Mechanical Flotation Machine rotates at high speed and creates a negative pressure zone between the impeller and stator. This enables the XJK Flotation Cell to automatically draw air into the flotation cell without requiring an external air supply. The rotating impeller then disperses the air into fine bubbles and distributes them evenly throughout the slurry, providing effective conditions for mineral flotation.
Mineral-Bubble Attachment and Froth Recovery
During the flotation process, hydrophobic valuable mineral particles selectively attach to the air bubbles and rise to the slurry surface, forming a mineralized froth layer. The scraper mechanism collects the froth layer as concentrate, while the remaining slurry continues through the flotation circuit for further separation.

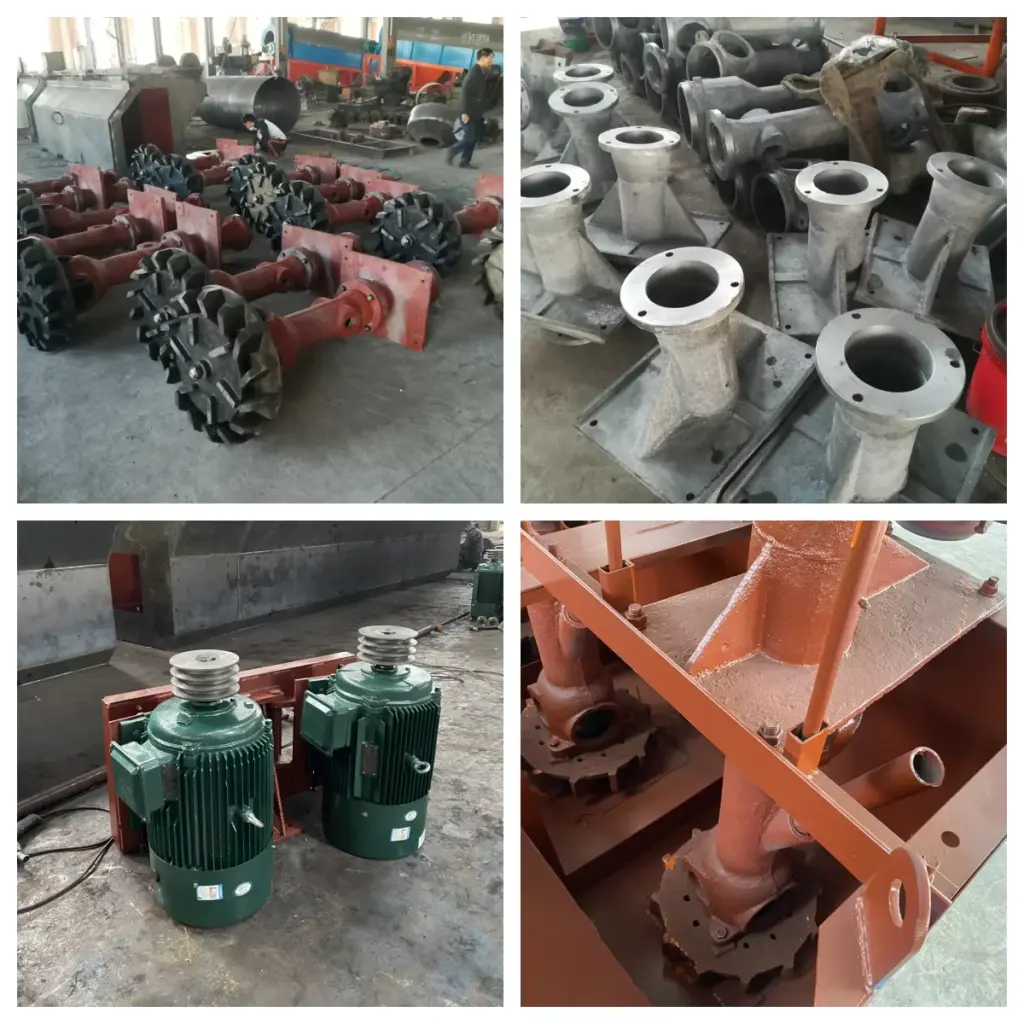

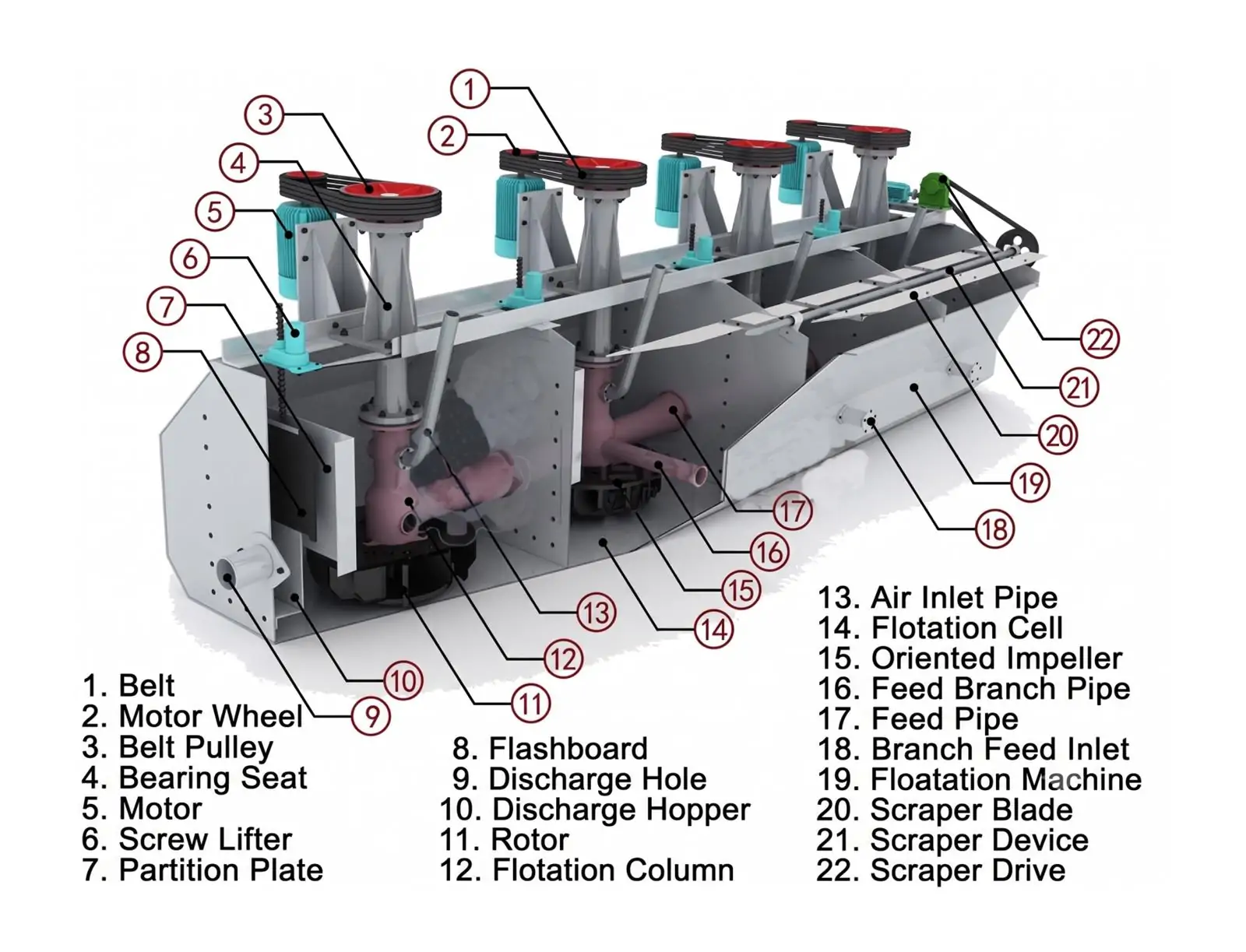

Main Components of XJK Flotation Machine
The XJK Flotation Machine consists of several key components that work together to achieve slurry agitation, air dispersion, mineral-bubble attachment, and froth recovery. These components ensure stable flotation performance, efficient mineral separation, and reliable operation in various mineral processing applications.
Flotation Cell
The flotation cell is the main structure of the XJK Flotation Machine, providing a chamber for holding ore slurry and maintaining the required retention time during the flotation process. It supports the installation of key components such as the impeller and stator, ensuring sufficient contact between mineral particles, flotation reagents, and air bubbles for effective mineral separation.
Impeller (Rotor)
The impeller is the core working component of the XJK Flotation Machine. Driven by the shaft, it rotates at high speed to agitate the slurry, create a negative pressure zone for air self-suction, and disperse air into fine bubbles. The effective agitation and circulation improve the contact between mineral particles and bubbles, which is essential for efficient mineral flotation.
Stator
The stator works together with the impeller to guide slurry circulation and optimize bubble dispersion inside the flotation cell. By stabilizing the slurry flow pattern and improving the distribution of air bubbles, the stator helps create more consistent mineral-bubble contact and maintain stable flotation performance.
Drive System
The drive system consists of the motor, transmission assembly, and shaft, providing stable power to rotate the impeller during operation. A reliable drive system ensures consistent impeller speed, continuous flotation performance, and stable operation under different mineral processing conditions.
Air Self-Suction System
The XJK Flotation Machine features a self-suction aeration system that uses the pressure difference created during impeller rotation to automatically draw air into the flotation cell. Without the need for an external air blower, the system simplifies the flotation circuit and provides a stable air supply for effective bubble formation and mineral separation.
Froth Recovery System
The froth recovery system collects the mineralized froth layer formed on the slurry surface during flotation. The scraper mechanism continuously removes the froth and transfers it as concentrate, ensuring efficient collection of recovered minerals and stable operation of the flotation process.
Specifications
The XJK Flotation Machine is available in multiple models to meet different flotation capacity requirements. The specifications below show the main technical parameters, including cell volume, processing capacity, impeller size, speed, and motor power.
Core Technical Specifications
| Model | Cell Volume (m³) | Impeller Diameter (mm) | Capacity (m³/min) | Impeller Speed (r/min) | Scraper Speed (r/min) | Impeller Motor Model | Impeller Motor Power (kW) | Scraper Motor Model | Scraper Motor Power (kW) | Dimensions (L×W×H) (mm) | Weight (t/cell) |
| XJK-0.35 | 0.35 | 300 | 0.18–0.40 | 470 | 17.5 | Y90L-4 | 1.5 | Y80 | 0.55 | 3012×1350 | 0.45 |
| XJ | 0.62 | 350 | 0.30–0.90 | 400 | 16 | Y132S-6 | 3 | Y90S-4 | 1.1 | 37 | 0.85 |
| XJK-1.1 | 1.1 | 500 | 0.60–1.60 | 330 | 26 | Y132M₂-6 | 5.5 | Y90S-4 | 1 | 4679×1820×1942 | 0.24 |
| XJK-2.8 | 2.8 | 600 | 1.50–3.50 | 2 | 26 | Y160L-6 | 11 | Y90S-4 | 1.1 | 7750×1600×1100 | 0.43 |
Advantage
The XJK Flotation Machine features a proven mechanical agitation design that provides stable slurry mixing, effective air dispersion, and consistent flotation performance. Its practical structure allows flexible application in mineral processing plants with different ore characteristics and operating requirements.
Applications
The XJK Flotation Machine is designed for the flotation separation of metallic and non-metallic ores. It is used in mineral processing plants to recover valuable minerals from sulfide ores, precious metal ores, and non-metallic minerals through froth flotation.
XJK Flotation Machine vs SF and BF Flotation Cells
XJK, SF, and BF flotation cells have different impeller structures, aeration characteristics, and slurry circulation performance. The XJK Flotation Machine features a simple design and reliable operation, while SF and BF models provide enhanced air dispersion and circulation for flotation plants with higher capacity or more demanding process conditions.
Practical Equipment Comparison
| Comparison | XJK Flotation Machine | SF Flotation Cell | BF Flotation Cell |
| Structure | Simple impeller structure with self-suction air and slurry mixing | Double-sided blade impeller for stronger slurry circulation | Double-cone impeller for improved circulation and lower turbulence |
| Flotation Performance | Stable agitation and suitable air dispersion for conventional flotation operations | Better air suction and bubble dispersion | Stronger slurry circulation and improved flotation efficiency |
| Energy & Maintenance | Simple design, easy maintenance, relatively higher energy consumption | Lower energy consumption with moderate wear | Lower wear and better energy efficiency |
| Application Range | Small and medium-sized plants, conventional metal ore flotation | Medium and large plants requiring stronger aeration performance | Medium and large plants requiring stable circulation and continuous operation |
Installation and Maintenance of XJK Flotation Machine
The XJK Flotation Machine features a simple structure that allows convenient installation, inspection, and maintenance. Regular checks of key components help maintain stable operation and reduce downtime.
Installation Requirements
The XJK Flotation Machine should be installed on a stable, level foundation with proper alignment of the main components. Before operation, key parts such as the impeller, stator, shaft, and scraper mechanism should be inspected to confirm smooth rotation. A trial run helps verify lubrication and operating conditions before slurry processing.
Routine Maintenance
Routine maintenance focuses on the impeller, stator, bearings, drive system, and other wear parts. Regular inspection and lubrication help maintain normal slurry mixing and air suction, while timely replacement of worn components reduces downtime during operation.
How to Choose the Right XJK Flotation Machine for Mining Projects?
The selection of an XJK Flotation Machine depends on ore characteristics, processing capacity, and flotation process requirements. Proper matching of equipment specifications with plant conditions helps achieve stable operation and reliable mineral separation.
Ore Characteristics
Ore properties, including mineral composition, grade, particle size, and flotation behavior, should be considered when selecting an XJK Flotation Machine. Different ore conditions may require different agitation levels and flotation settings for stable separation.
Processing Capacity
The selection of XJK Flotation Machine should be based on the required throughput, slurry volume, and flotation time. Proper matching of cell size and quantity helps meet the production requirements of different processing plants.
Flotation Circuit Requirements
The machine configuration depends on its application stage, including roughing, cleaning, and scavenging. Roughing requires higher processing capacity, while cleaning focuses on stable operation and concentrate quality.
Operating Cost and Maintenance Requirements
Selection should also consider energy consumption, wear parts, maintenance requirements, and spare parts supply. Easy inspection and replacement of key components help reduce downtime and improve long-term operating efficiency.
Why Choose Zhongyi?
Zhongyi Mining Machinery (Zhengzhou Zhongyi Mining Machinery Co., Ltd.) is a manufacturer and supplier of mineral processing equipment, providing XJK Flotation Machines for metal and non-metal beneficiation projects. With extensive experience in mining equipment manufacturing, the company supports the design, production, and supply of flotation equipment based on different ore characteristics, processing capacities, and plant requirements.
Production follows strict quality control procedures covering equipment fabrication, assembly, and performance inspection. Supported by experienced engineers and professional technical teams, Zhongyi provides equipment selection guidance, customized configurations, installation support, and spare parts service for mining projects. The company is committed to delivering reliable flotation solutions that meet the operational requirements of mineral processing plants.
Request a Customized Solution
Partner with Zhongyi for an XJK Flotation Machine designed to provide reliable slurry mixing, effective air dispersion, and stable froth flotation performance for metallic and non-metallic ore beneficiation projects.
Customized XJK Flotation Machine Solutions
Zhongyi Mining provides customized XJK Flotation Machine solutions based on different mineral processing requirements and plant conditions. Our engineering team supports equipment selection, configuration optimization, and integrated solutions for various beneficiation projects, including complete Mineral Processing Plant Solutions and Flotation Plant Solutions. Contact us to discuss your project requirements and receive a suitable flotation solution.
Please Provide the Following Information:
FAQs
What ores can be processed by the XJK Flotation Machine?
The XJK Flotation Machine is suitable for the flotation separation of various metallic and non-metallic ores. Common applications include copper ore, gold ore, lead-zinc ore, nickel ore, molybdenum ore, fluorite, graphite, and phosphate minerals. The actual flotation performance depends on ore properties, mineral composition, particle size, and the selected flotation process.
How do I choose the right XJK Flotation Machine model?
Selecting an XJK Flotation Machine requires considering ore characteristics, required processing capacity, flotation circuit design, and plant conditions. The appropriate model is determined by factors such as slurry volume, required retention time, and the number of flotation cells needed. A suitable configuration helps maintain stable operation and meet the production requirements of the beneficiation plant.
What is the processing capacity of an XJK Flotation Machine?
The processing capacity of an XJK Flotation Machine varies depending on the model, cell volume, ore properties, and flotation conditions. Multiple flotation cells can be arranged in series or parallel to meet different plant capacities. For accurate selection, the required throughput, slurry concentration, and flotation process requirements should be evaluated before equipment configuration.
Does the XJK Flotation Machine require an external air blower?
No. The XJK Flotation Machine adopts a self-suction aeration design. The rotating impeller generates negative pressure to automatically draw air into the flotation cell and disperse it into fine bubbles. This design simplifies the flotation system by reducing the need for additional air supply equipment while maintaining effective mineral-bubble contact during flotation.
What factors affect XJK Flotation Machine performance?
The performance of an XJK Flotation Machine is affected by ore characteristics, slurry concentration, reagent conditions, impeller operation, and flotation circuit design. Proper equipment selection and operating adjustment are important for maintaining stable slurry mixing, bubble distribution, and mineral recovery performance throughout the flotation process.
How often does the XJK Flotation Machine require maintenance?
Maintenance frequency depends on operating conditions, ore abrasiveness, and working hours. Regular inspection should focus on the impeller, stator, bearings, drive system, and other wear components. Timely lubrication, clearance adjustment, and replacement of worn parts help reduce unexpected downtime and maintain consistent flotation performance.
What is the difference between XJK, SF, and BF flotation machines?
XJK, SF, and BF flotation machines differ mainly in impeller structure, air dispersion performance, slurry circulation, and application requirements. XJK features a simple structure and reliable operation, while SF and BF models provide improved aeration and circulation capabilities. The suitable choice depends on plant scale, ore characteristics, and flotation process requirements.
Can the XJK Flotation Machine be integrated into a complete beneficiation plant?
Yes. The XJK Flotation Machine can be integrated with other mineral processing equipment, including crushing, grinding, classification, concentrate dewatering, and tailings treatment systems. Zhongyi Mining provides equipment configuration and technical support according to project requirements to help build suitable flotation circuits for different mining applications.
