What is a Mobile Impact Crusher?
A Mobile Impact Crusher, also known as a mobile impact crushing plant or portable impact crusher, is a mobile crushing unit designed for medium to fine crushing of soft to medium-hard materials. It adopts the impact crushing principle, where materials are broken by high-speed rotor impact and collision with impact plates. The processing capacity ranges from 80–350 t/h depending on configuration.
In a complete crushing line, the mobile impact crusher usually works after a primary jaw crusher for secondary crushing. Upstream equipment includes vibrating feeders and jaw crushers for initial size reduction, while downstream systems such as vibrating screens, belt conveyors, and magnetic separators are used for classification and material recovery. It is widely used in construction waste recycling, aggregate production, and road base material processing.
Working Principle
The equipment operates on the impact crushing principle. Material is fed continuously into the crushing chamber and accelerated by a high-speed rotor. Under strong rotational force, particles collide with blow bars and are thrown against impact plates for repeated breaking. This process continues until the material reaches the required gradation and exits through the discharge opening.
In a mobile configuration, the crusher is integrated with feeder, conveyor, and optional screening units on a tracked or wheeled chassis. Oversized material can be returned to the crushing chamber through a closed-loop system, ensuring stable product size control and continuous on-site operation without fixed installation.
Types of Mobile Impact Crushers
Zhongyi offers several mobile impact crusher configurations to meet different site conditions and material processing needs. The equipment is available in tracked, wheeled, and integrated crushing–screening versions, suitable for secondary and fine crushing in aggregate production, demolition waste recycling, and road construction projects.
Depending on the project, we can configure standalone impact crushers or complete closed-circuit mobile lines with screening and return systems. Rotor type, chassis form, and layout can be adjusted based on feed material and final size requirements, making the equipment suitable for both fixed-site and frequently moving operations.

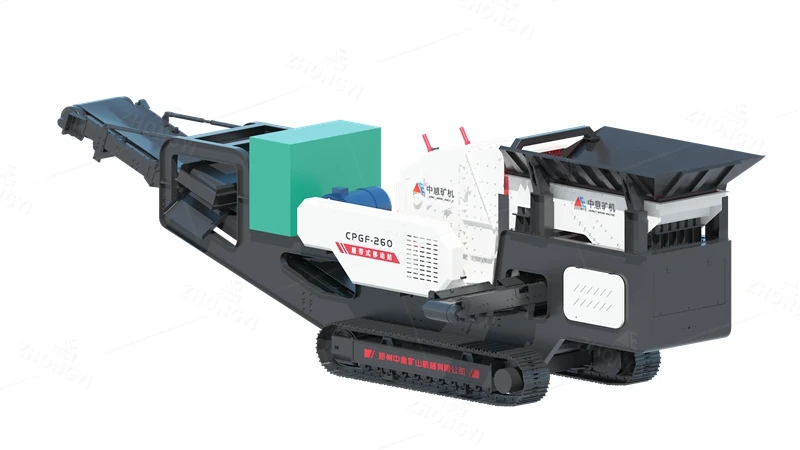

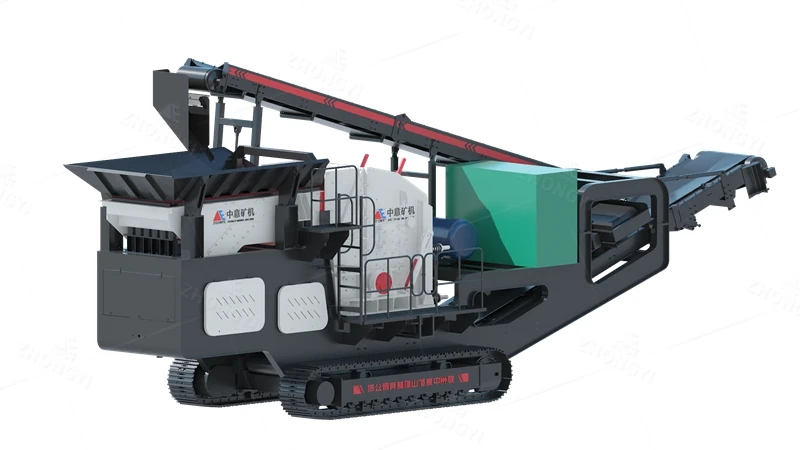

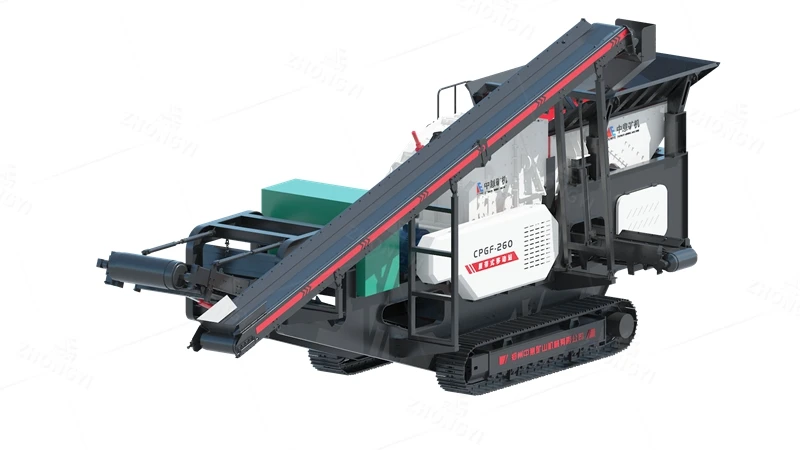

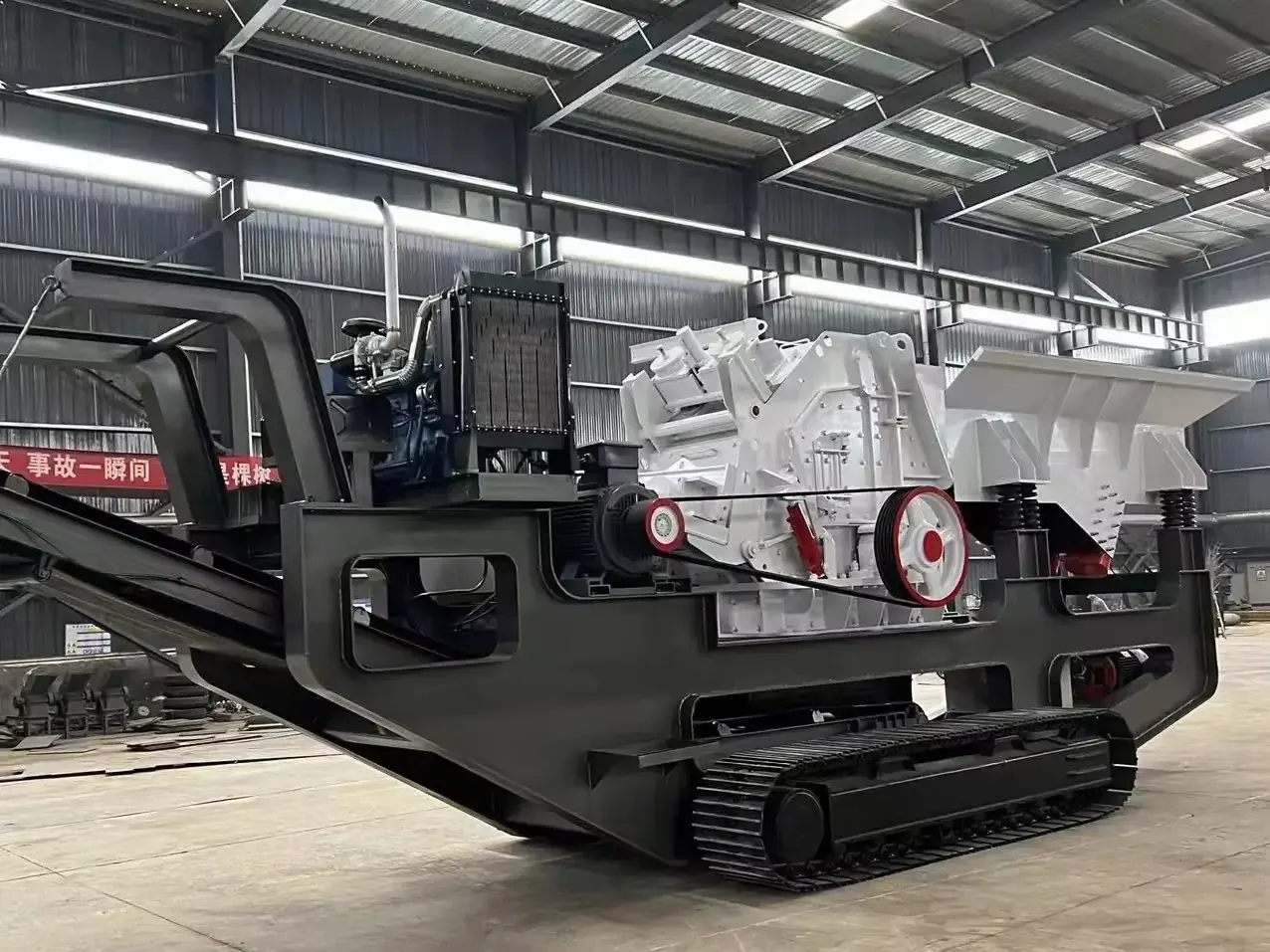

Tracked Mobile Impact Crusher

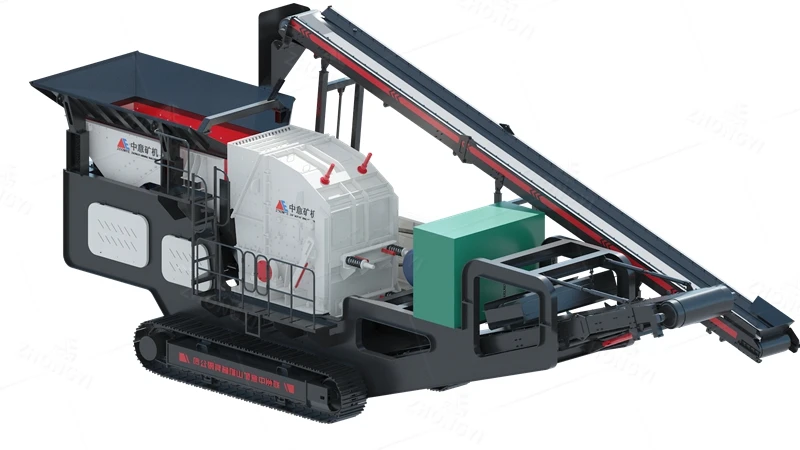

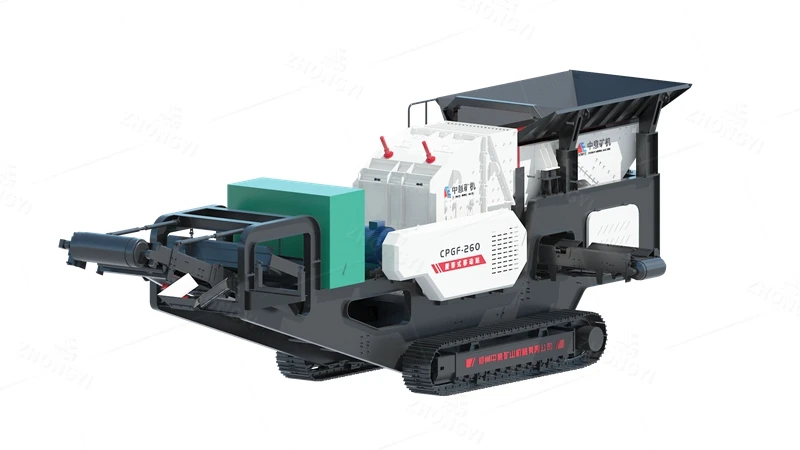

Tracked mobile impact crusher is a self-propelled unit designed for direct operation in mining sites, demolition areas, and uneven terrain. It integrates feeding, impact crushing, and conveying on a crawler chassis, allowing quick deployment without foundation work. Typical feed size is up to 500–800 mm, with a capacity of 80–350 t/h and adjustable output size of 20–100 mm.

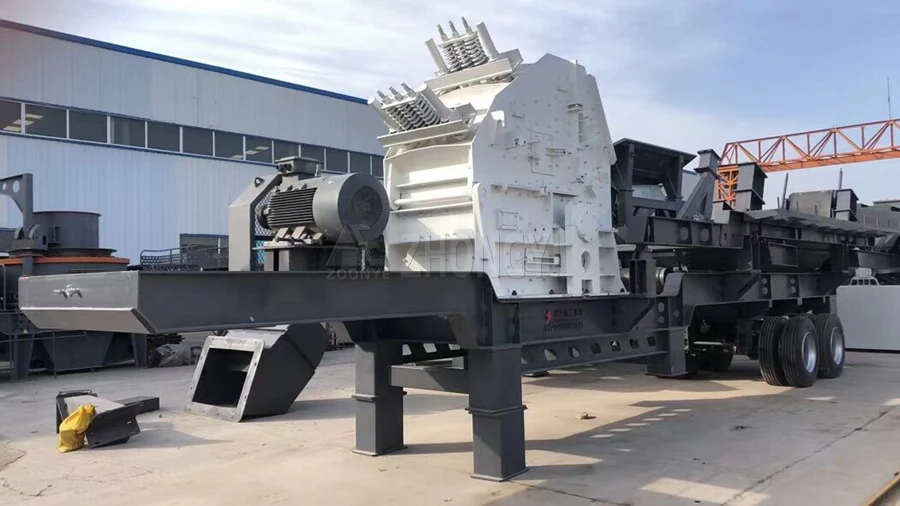

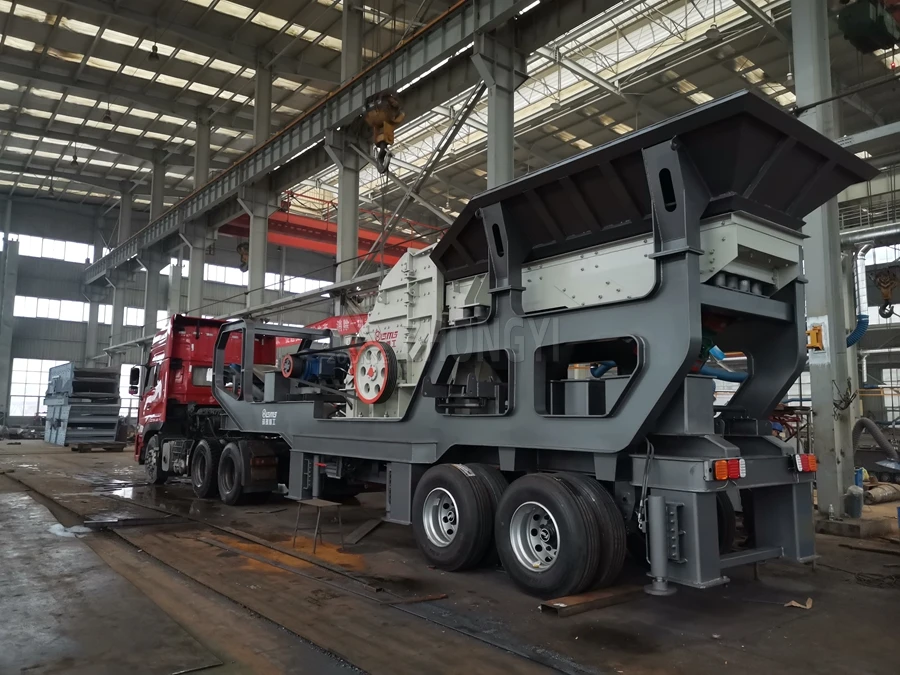

Wheeled Mobile Impact Crusher

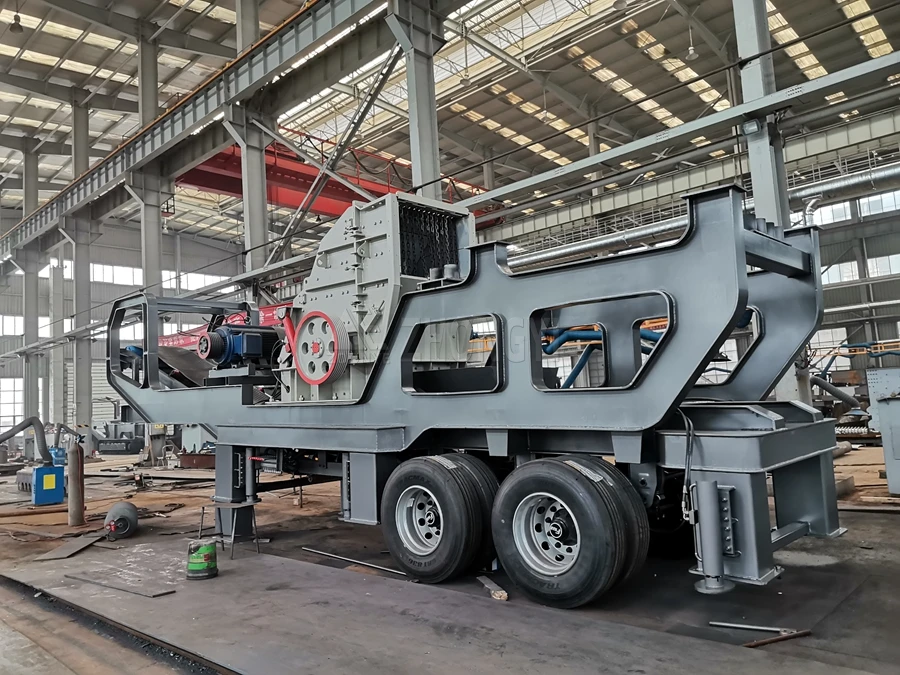

Wheeled mobile impact crusher is a trailer-mounted system designed for projects that require frequent relocation between fixed sites with road access. It offers fast transport and relatively lower operating cost, making it suitable for construction and aggregate production. Feed size is generally ≤500–700 mm, with capacity ranging from 60–300 t/h and output size of 20–100 mm.

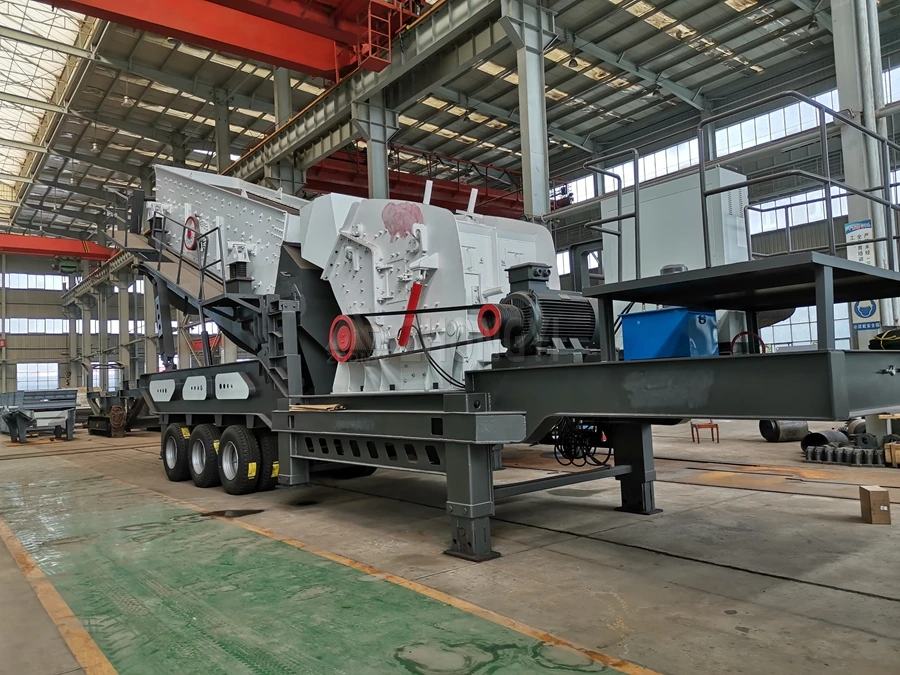

Integrated Mobile Impact Crushing & Screening Plant
Integrated mobile impact crushing and screening plant combines impact crushing, screening, and material recirculation into one closed-circuit system. It is commonly used where finished aggregate grading is required in a single operation. The system handles feed sizes up to 400–700 mm, with capacity of 80–320 t/h and multi-grade output from 0–100 mm depending on screen configuration.
Specifications
The following specifications provide a general reference for mobile impact crushers. Actual configurations may vary depending on material type, capacity requirements, and site conditions
| Model | Capacity (t/h) | Feeding Size (mm / in) | Output Size (mm / in) | Power (kW / HP) |
| MI-100 | 80–150 | ≤500 mm / 19.7 in | 20–80 mm / 0.8–3.1 in | 132 kW / 175 HP |
| MI-150 | 120–250 | ≤600 mm / 23.6 in | 20–100 mm / 0.8–4 in | 200 kW / 270 HP |
| MI-200 | 200–350 | ≤700 mm / 27.6 in | 30–120 mm / 1.2–4.7 in | 250 kW / 335 HP |
| MI-250 | 300–500 | ≤800 mm / 31.5 in | 30–150 mm / 1.2–6 in | 315 kW / 420 HP |
These models cover a range of production needs, from medium-scale operations to large mobile crushing projects. For specific configurations and project-based recommendations, you can contact Zhongyi Mining, where our professional team can provide practical support based on your requirements.
Advantages of Mobile Impact Crusher
This on-site crushing equipment is designed to combine mobility with efficient crushing, making it suitable for a wide range of on-site applications. Its key features focus on flexibility, performance, and ease of use.

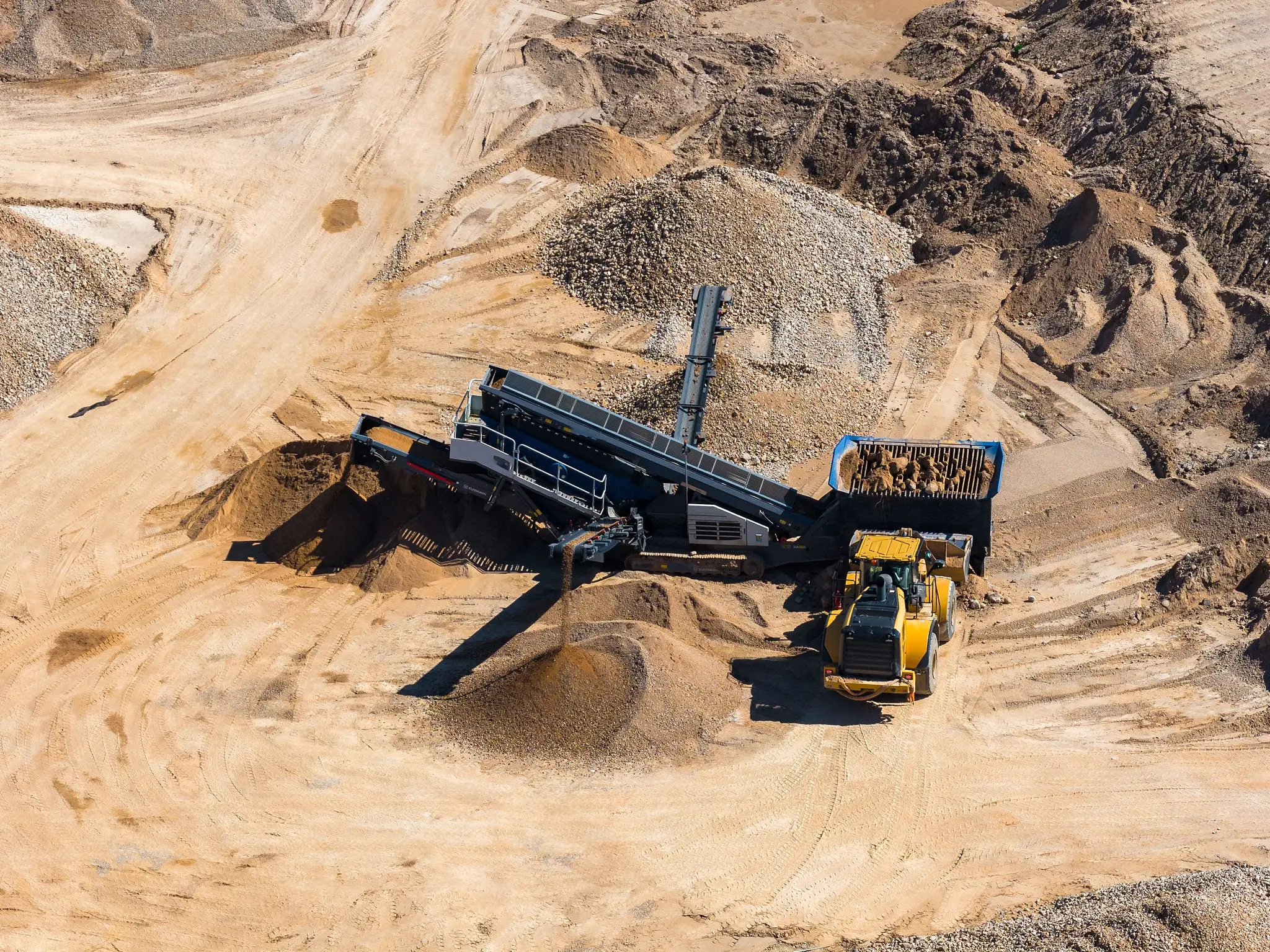

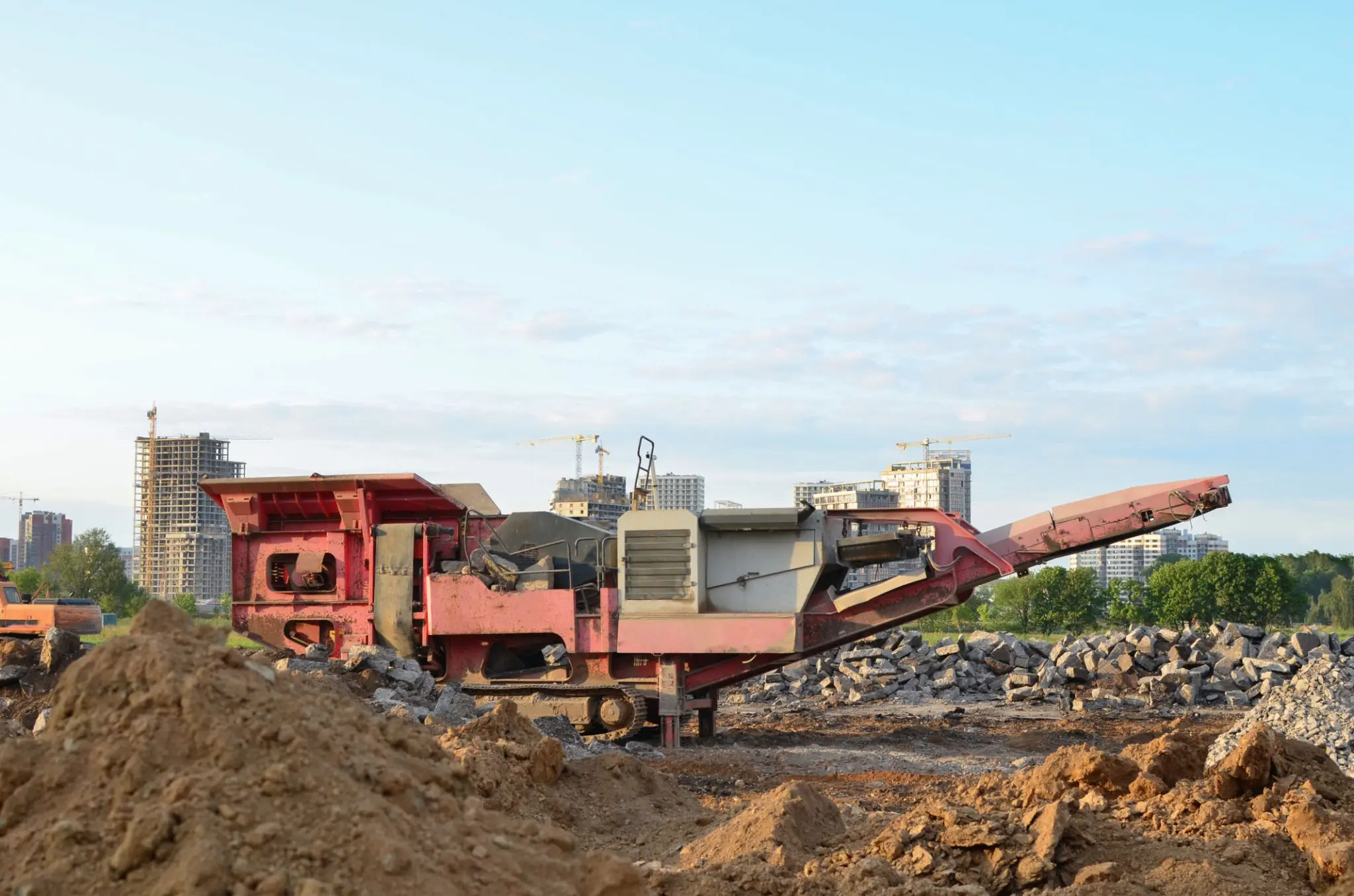

Applications

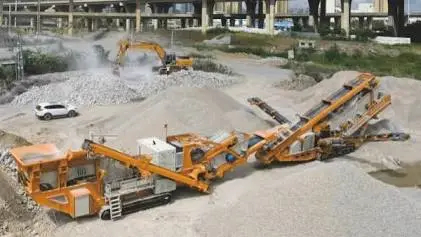

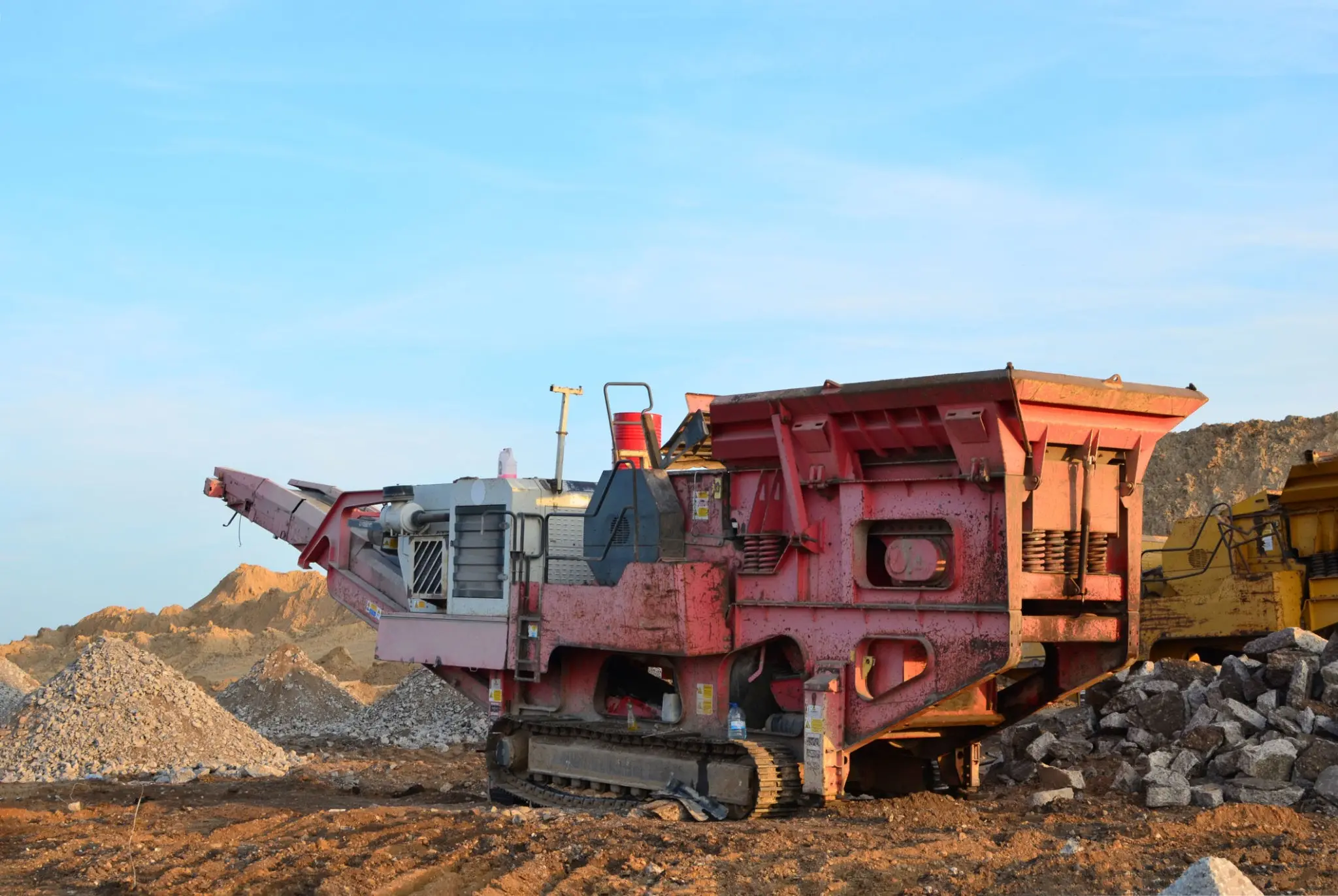

Mobile impact crushing plants are designed to handle a wide range of materials under different working conditions, making them suitable for both fixed and temporary projects. With their flexible mobility and efficient crushing performance, they are widely used in global projects where on-site processing is required.
These solutions have been widely used in projects across Africa, the Middle East, and Southeast Asia, adapting to different materials, climates, and site conditions.
Projects Show
Mobile Impact Crusher vs Mobile Jaw Crusher
Mobile impact crushers and mobile jaw crushers are both widely used in mobile crushing operations, but they are designed for different stages and material characteristics. Jaw crushers are typically used for primary crushing of large, hard materials, while impact crushers are used for secondary or fine crushing where product shape and grading are more important. Choosing between them depends on feed size, material hardness, and final product requirements.
| Item | Mobile Jaw Crusher | Mobile Impact Crusher |
|---|---|---|
| Crushing stage | Primary crushing | Secondary / fine crushing |
| Crushing method | Compression (squeezing between jaw plates) | Impact (high-speed rotor striking) |
| Feed size | Up to 600–1000 mm | Up to 400–800 mm |
| Output size | 60–150 mm (coarse) | 20–100 mm (finer) |
| Finished product shape | Angular, slightly rough | More cubical, better grading |
| Suitable materials | Hard and abrasive rock, large boulders | Medium-hard to soft materials, recycled concrete |
| Typical applications | Primary reduction in mining & quarrying | Aggregate shaping, construction waste recycling |
| Wear parts consumption | Relatively lower | Higher due to impact force |
| Mobility use case | Heavy-duty primary site processing | Flexible secondary on-site processing |
In practice, both machines are often used together in a complete mobile crushing line, with jaw crusher for primary reduction and impact crusher for shaping and final sizing.
Request a Customized Solution
Partner with Zhongyi for expert technical support, customized solutions, and reliable equipment tailored to your ore characteristics and production requirements.
Custom Mobile Impact Crusher
To receive a precise and tailored quotation for your Mobile Impact Crusher, please complete our inquiry form with your project details. Our engineering team will provide a customized solution and competitive price based on your specific requirements.
Provide the Following Information:
Mobile Impact Crusher Manufacturer and Supplier
Zhongyi has 16+ years in mining equipment manufacturing, we design and supply Mobile Impact Crushers for mining, quarrying, and construction projects worldwide. Our machines are built to international standards, delivering stable performance, strong durability, and reliable operation in demanding site conditions.
As a manufacturer and supplier, we focus on practical crushing solutions that help improve output and control operating costs. Each Mobile Impact Crusher is engineered with proven impact crushing technology, a robust frame structure, and flexible configuration options to match different project needs.
From solution design and production to installation guidance and after-sales support, we provide end-to-end service to keep projects running smoothly. Whether you need a single unit or a complete crushing line, we can configure solutions based on your material type, capacity requirements, and site conditions.
FAQ
What is a mobile impact crusher used for?
A mobile impact crusher is used for on-site crushing of materials such as limestone, concrete, and construction waste. It is widely applied in recycling, quarry, and infrastructure projects across regions like Africa, the Middle East, and Southeast Asia.
How does a mobile impact crusher work?
A mobile impact crusher works by feeding materials into a high-speed rotor, where they are broken by impact force. The crushed materials are then screened and discharged, allowing continuous processing in one integrated system.
What materials are suitable for a portable impact crushing plant?
Mobile impact crushers are suitable for medium-hard materials such as limestone, concrete, and asphalt. They are especially effective in applications where good particle shape is required, such as aggregate production and recycling projects.
What is the typical capacity of this mobile crushing equipment?
The capacity typically ranges from 80 t/h to 500 t/h, depending on the model, material type, and configuration. Larger units are used in mining and quarry projects, while smaller ones are suitable for recycling and urban applications.
What is the difference between tracked and wheeled mobile crushers?
Tracked mobile crushers are designed for rough terrain and on-site movement, while wheeled models are easier to transport between locations. The choice depends on site conditions and project duration.
How to choose the right mobile impact crusher?
Selection depends on material type, required capacity, mobility needs, and site conditions. A proper configuration helps improve efficiency and reduce operating costs in the long term.
What is the price of a mobile impact crusher?
Prices generally range from USD 80,000 to USD 500,000+, depending on capacity, configuration, and mobility type. Customized solutions may vary based on project requirements.
Do you provide installation and after-sales support?
Yes, at Zhongyi Mining, we provide installation guidance, technical support, and spare parts service. This helps ensure stable operation, especially for overseas projects.
