Introduction
Mobile aggregate screening plants are used to separate stone, sand, gravel, recycled materials, and ores into different size fractions directly at the job site. They can work as a standalone screening unit or be installed behind a crusher as part of a crushing and screening line. It is widely used in quarry, mining, construction, and recycling projects where material classification is required.
What is a Mobile Aggregate Screening Plant?
A mobile aggregate screening plant, also known as a mobile screening plant or portable screening plant, is a mobile system used to separate stone, sand, gravel, recycled materials, and ores into different size fractions on site. It is usually installed after a jaw crusher, cone crusher, or impact crusher as part of a crushing and screening line.
Depending on the screen configuration, the plant can handle materials up to 300 mm and produce multiple finished product sizes in a single operation. It is widely used in quarry, mining, construction, and recycling projects where flexible screening and easy relocation are required.

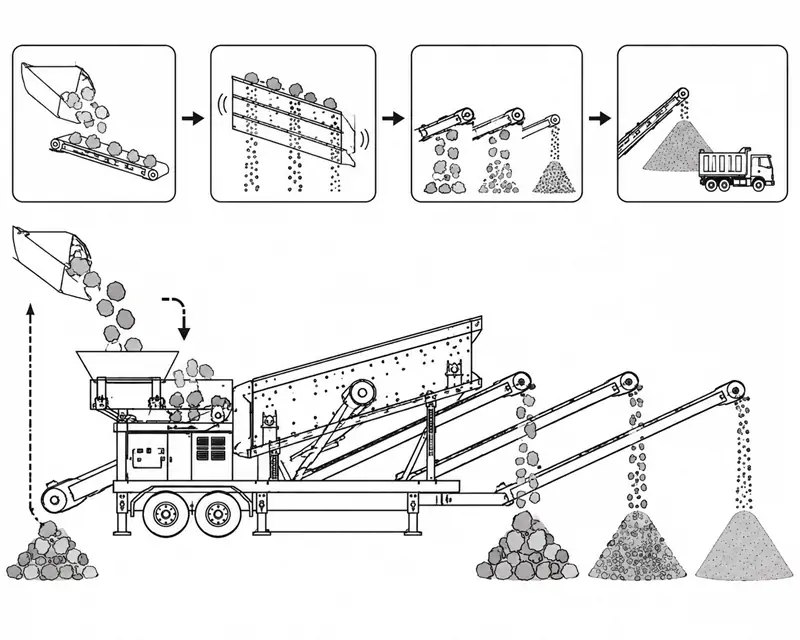

Working Principle
A mobile aggregate screening plant separates material into different size fractions through one or more vibrating screen decks. Material enters the screen, passes through different mesh openings, and is discharged through separate conveyors according to particle size.
Material Feeding
Material from a crusher, feeder, or stockpile is delivered onto the screen surface. A steady feed keeps material evenly distributed across the screening area.
Material Screening
As the screen vibrates, smaller particles pass through the mesh openings while larger particles remain on the screen surface. Different screen meshes produce different aggregate sizes.
Product Separation
Each material size is collected by an individual discharge conveyor. A single screening unit can normally produce two to four finished products at the same time.
Material Discharge
Finished materials are transferred to stockpiles, trucks, or downstream equipment. Oversized material can be sent back to the crusher in closed-circuit crushing and screening systems.
Advantages
A mobile aggregate screening plant is used to separate crushed material into different sizes directly on site. It can work alone or together with crushers to form a complete screening and crushing line. The main advantages are as follows.
Easy Site Movement
Tracked or wheeled chassis allows the unit to move between working areas without fixed installation. Suitable for projects with changing working locations.
Less Material Handling Distance
Screening is carried out close to the crushing point or stockpile area, material does not need to be transported to a fixed plant.
Quick Setup
No foundation work required. The unit can be brought into operation shortly after arriving at the site.
Multiple Size Output
One screen unit can produce 2–4 different material sizes in one pass depending on screen configuration.
Wide Application Range
Works with aggregates, sand, gravel, construction waste, coal, and ore in quarry, mining, and recycling projects.
Lower Operating Load
Integrated structure with feeding, screening, and conveying in one system. Fewer transfer points and simpler on-site layout.
Applications

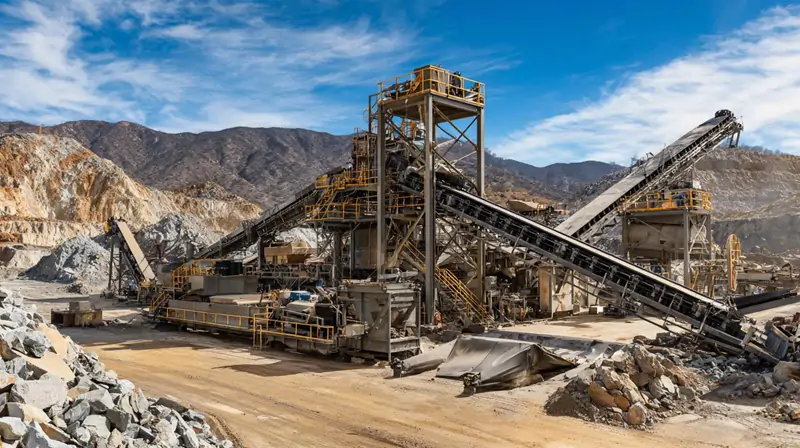

Mobile aggregate screening plants are used for material separation and grading at quarry, mining, construction, and recycling sites. They work close to the operation area so material can move directly through the process without extra handling.
Types of Mobile Aggregate Screening Plants
Zhongyi provides different mobile screening plant configurations for quarry, mining, construction, and aggregate production projects. Selection depends on site conditions, mobility requirements, and production scale.
Tracked Mobile Screening Plant
Built for rough and uneven terrain. The tracked chassis allows the unit to operate directly in the working area and move short distances within the site without external transport equipment.
Capacity: 80–400 tph
Common in quarries, open-pit mining, and earthwork operations.
Wheeled Mobile Screening Plant
Built for projects requiring transport between multiple job sites. The wheeled chassis is designed for road movement and fast setup after relocation.
Capacity: 80–300 tph
Common in road construction, railway projects, and temporary aggregate plants.
Heavy-Duty Mobile Screening Plant
Built for high-capacity continuous screening operations. Designed for stable output in large-scale production lines where throughput is the main requirement.
Capacity: 300–800 tph
Common in commercial aggregate plants and large quarry operations.
Mobile Aggregate Screening Plant vs Fixed Screening Plant
Mobile and fixed screening systems are often compared in mining and aggregate project planning.The choice depends on site conditions, production scale, and whether relocation or fixed installation is required.
Comparison: Mobile Screening Plant vs Fixed Screening Plant
| Item | Mobile Aggregate Screening Plant | Fixed Screening Plant |
|---|---|---|
| Working Principle | On-site screening with integrated mobile chassis system | Centralized screening in a stationary production line |
| Structure Design | Tracked or wheeled modular integrated units | Steel structure with concrete foundation |
| Processing Capacity | 80–800+ tph depending on configuration | 100–1000+ tph in stable long-term operation |
| Efficiency | Flexible operation with reduced relocation downtime | High stability in continuous large-scale production |
| Energy Consumption | Moderate, varies with configuration and power system | Lower per ton under stable continuous operation |
| Footprint | Compact layout, no permanent foundation required | Large fixed installation area required |
| Installation Requirement | Fast setup with minimal civil work | Requires foundation construction and longer installation time |
| Maintenance | Modular components, easier field replacement | Planned shutdown required for major maintenance |
| Investment Cost | Lower infrastructure cost, flexible deployment | Higher civil construction cost, lower long-term unit cost |
| Suitable Conditions | Projects with changing sites or limited infrastructure | Permanent production sites with stable raw material supply |
| Typical Applications | Quarry relocation, mobile mining operations, temporary aggregate production | Large fixed aggregate plants and long-term mining operations |
Selection Note
Mobile systems are used where site conditions or production locations change. Fixed systems are preferred for stable, high-volume operations. Zhongyi Mobile Aggregate Screening Plant is mainly applied in quarry and mining projects that require mobility and flexible deployment.
Request a Customized Solution
Contact Zhongyi for customized mobile aggregate screening plant solutions based on your project requirements.
Mobile Aggregate Screening Plant Parameters
The configuration of a Mobile Aggregate Screening Plant can be customized based on capacity, material size, product requirements, and site conditions. Zhongyi provides customized screening and mobility solutions for mining, quarrying, and construction. Detailed parameters are shown below.
| Type | Stable Capacity (tph) | Mobility Type | Max Feed Size (mm) | Screen Area (m²) | Screen Decks | Power (kW) | Best Application | Key Advantage |
|---|---|---|---|---|---|---|---|---|
| Tracked Mobile Screening Plant | 80–350 | Crawler (off-road) | ≤300 | 8–15 | 1–3 | 90–200 | Mining, quarrying, hard rock | High terrain adaptability, no foundation required |
| Wheeled Mobile Screening Plant | 60–250 | Tire (road transport) | ≤250 | 6–12 | 1–3 | 70–160 | Urban construction, aggregate plants | Fast relocation, lower transport cost |
| Heavy-Duty Mobile Screening System | 300–800+ | Semi-mobile / modular | ≤500 | 15–30 | 2–4 | 160–400 | Large-scale aggregate production | High throughput, expandable modular design |
Note: Parameters may vary depending on material properties, production requirements, and project layout.
Mobile Aggregate Screening Plant Project Case (Customized Solution)
In a Southeast Asia aggregate project, the customer needed to process mixed river stone and crushed rock under unstable feed conditions and frequent site relocation. The main challenges were inconsistent output size, long relocation time between working areas, and limited space for installing a fixed screening line. Zhongyi provided a customized mobile aggregate screening solution based on site layout, production requirements, and material characteristics, allowing on-site operation without foundation work and flexible movement with the production face.
The system can be configured according to project needs, ranging from standalone mobile screening units to complete mobile crushing and screening production lines.
Customizable options include:
- Mobile screening configuration (tracked / wheeled / heavy-duty)
- Capacity range and final product size requirements
- Screening deck configuration (1–3 decks, multiple fraction output)
- Feeding and conveying system layout
- Integration with crushing systems (jaw / cone / impact crusher)
- Power options (diesel / electric / hybrid)
- Dust suppression and enclosure system
- Mobile aggregate production line design (full Mobile Crushing and Screening Plant integration)
For projects with unclear requirements or complex site conditions, our engineering team can support layout design and equipment selection based on your material and production goals. Contact us for a tailored solution.
Why Choose Zhongyi
Zhongyi designs and manufactures mobile aggregate screening plants for mining, quarrying, and construction projects. With over 15 years of field experience, we focus on stable performance under real operating conditions.
Before selecting equipment, users often deal with unstable output, high relocation costs, limited installation space, and unclear configuration requirements. These factors directly affect production efficiency and operating cost. We help match capacity, material type, and site conditions to the right setup.
Our equipment has been delivered to more than 100 countries, including the USA, Middle East, and Africa, and is used in both temporary and long-term aggregate production projects. All systems are built under ISO and CE standards for consistent operation and safety.
We provide installation guidance, spare parts supply, and technical support throughout the project lifecycle. If you are not sure which configuration fits your project, you can contact us. We will help you select and customize the right solution based on your working conditions.
Request a Customized Solution
Contact Zhongyi for customized mobile aggregate screening plant solutions based on your project requirements.
Customization Requirements
Mobile aggregate screening plants can be configured based on material type, output size, site layout, and relocation needs. Many projects face unstable feed, limited space, or changing working locations, which require tailored solutions instead of standard setups. Zhongyi provides customized mobile crushing and screening line designs, including integrated mobile crushing and screening plant, to match real operating conditions. If you are unsure about selection, contact our team for a suitable solution based on your project.
Please fill in the details below so we can prepare a suitable solution for your project.
FAQ
What is a mobile aggregate screening plant used for?
A mobile aggregate screening plant is used to separate crushed stone, gravel, or recycled materials into different sizes directly on-site. It is commonly applied in mining, quarrying, and construction projects where material grading is required without building a fixed screening facility.
What capacity range is available for mobile screening plants?
Typical capacity ranges from 80 to 800+ tph depending on configuration, screen size, and material type. Tracked units are usually used for 80–400 tph, while heavy-duty systems can reach higher output in large-scale aggregate production lines.
What materials can be processed?
The plant can handle limestone, granite, basalt, river stone, and construction waste. Hardness and moisture content will affect screening efficiency and required configuration. Pre-crushed material generally improves screening stability and output consistency.
What is the difference between tracked and wheeled types?
Tracked units move within mining or quarry sites and handle uneven terrain. Wheeled units are designed for road transport between job sites. The choice depends on whether relocation is inside one site or between multiple projects.
How much space is required for installation?
Mobile screening plants require minimal installation space compared to fixed systems. A compact layout is enough for operation, and no concrete foundation is needed. Site layout mainly depends on feeding, stockpiling, and conveyor arrangement.
Can it be integrated with a crushing system?
Yes, it can be combined with jaw, cone, or impact crushers to form a complete mobile crushing and screening production line. This setup is commonly used in aggregate plants requiring multi-stage crushing and screening.
What are the main operating cost factors?
Operating costs mainly include fuel or electricity consumption, screen mesh wear parts, and routine maintenance. Material hardness and feed stability also influence energy use and replacement frequency of consumables.
How to choose the right configuration?
Selection depends on material type, required output size, capacity demand, and site mobility conditions. Zhongyi provides customized configuration and system design based on project requirements, ensuring the equipment matches actual production conditions.
