What is a mobile aggregate screening plants?

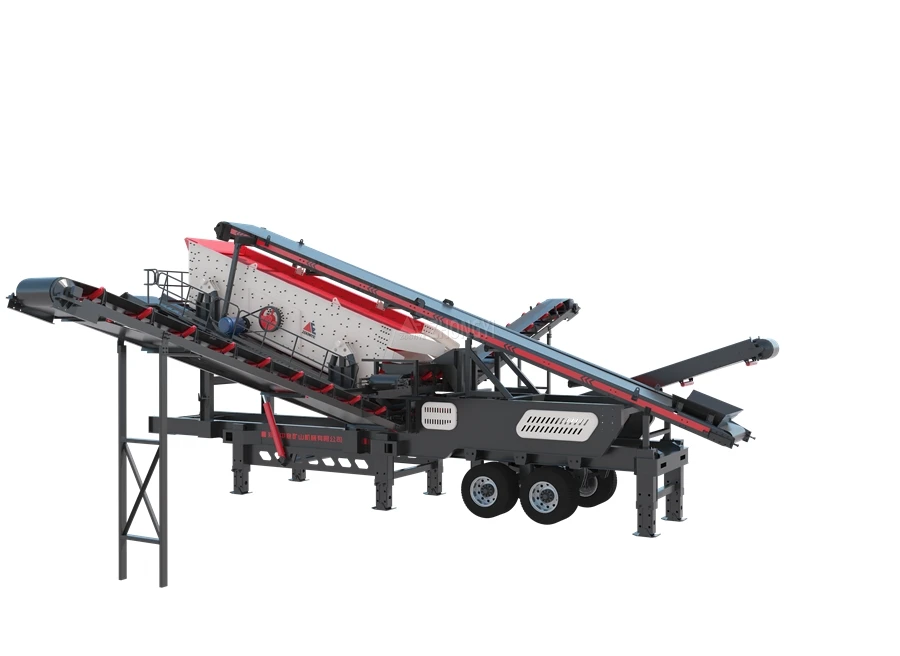

A wheeled mobile aggregate screening plants, also known as a rubber tyre mobile screening plant or portable screening plant, is a type of mobile aggregate screening plant designed for flexible on-site material classification. Mounted on a tyre chassis, it integrates feeding, vibrating screening, and conveying functions to process aggregates, ores, sand, gravel, and construction waste directly at the job site without the need for permanent installation.
In aggregate production, the wheeled mobile screening plant typically works with upstream equipment such as jaw crushers, impact crushers, cone crushers, and vibrating feeders to form a complete mobile crushing and screening solution. With typical capacities of 80–400 t/h, it provides fast relocation, efficient screening, and reliable aggregate processing for quarries, mining operations, infrastructure projects, and recycling applications.
Equipment Working Videos

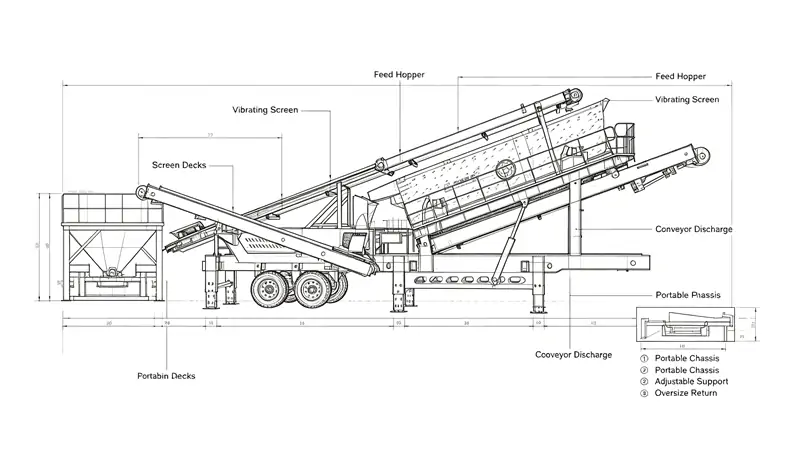

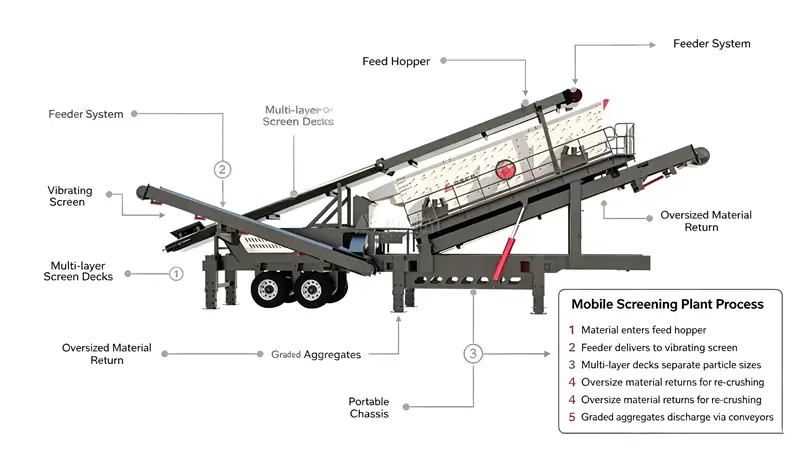

How Does a Wheeled Mobile Aggregate Screening Plant Work?
A wheeled mobile aggregate screening plant integrates feeding, vibrating screening, and conveying systems into a single tyre-mounted unit, allowing operators to classify materials directly at quarries, mining sites, and construction projects. The screening process starts when crushed stone, ores, or recycled materials are loaded into the hopper and evenly delivered to the vibrating screen through a feeder system.
The vibrating screen uses motors or exciter mechanisms to generate controlled vibration, causing materials to move across multi-layer screen decks. Different particle sizes pass through corresponding screen openings and are separated into specific aggregate grades, while oversized materials can be returned to crushers for further processing in a closed-loop crushing and screening system. Finished materials are then discharged by conveyors into separate stockpiles.
Compared with fixed screening systems, rubber tyre mobile screening plants are designed for fast transportation and flexible relocation between job sites. They can be combined with jaw crushers, impact crushers, cone crushers, and conveyors to build complete mobile crushing and screening solutions, making them suitable for quarrying, mining, road construction, and aggregate recycling applications.
Advantages
Wheeled mobile aggregate screening plants are designed to improve on-site screening efficiency through flexible mobility, quick deployment, and efficient material processing. Compared with fixed screening systems, they reduce the need for additional material transportation and permanent infrastructure, allowing operators to move between different job sites and respond quickly to changing project requirements. The following advantages highlight why rubber tyre mobile screening plants are widely used in quarrying, mining, construction, and recycling applications.
Applications
Wheeled mobile aggregate screening plants are widely used in quarrying, mining, construction, and recycling projects that require flexible material classification and frequent site relocation. With tyre-mounted mobility and efficient screening performance, they allow operators to process materials closer to the working area while reducing transportation requirements and improving project flexibility.
Specifications
The specifications of a wheeled mobile aggregate screening plant vary depending on the screening capacity, deck configuration, and project requirements. The following models represent common configurations for quarrying, mining, construction, and recycling applications, covering different production capacities and screening needs. Custom configurations are available based on material characteristics and site conditions.
| Model | Capacity (t/h) | Screen Size (mm) | Screen Decks | Engine Power (kW) | Weight (t) | Transport Dimensions (L×W×H mm) |
| FTM3S1848 | 80–150 | 1800 × 4800 | 2–3 | 55–75 | 16 | 10280 × 2830 × 4350 |
| FTM3S1860 | 100–200 | 1800 × 6000 | 2–3 | 75–90 | 18 | 11480 × 2830 × 4350 |
| FTM3S2160 | 150–300 | 2100 × 6000 | 2–4 | 90–132 | 19 | 11480 × 3150 × 4350 |
Note: Custom configurations are available based on your project requirements. Contact Zhongyi for detailed specifications.
How to Choose the Right mobile aggregate screening plants?
Choosing the right wheeled mobile aggregate screening plant depends on material characteristics, production capacity, site conditions, and relocation requirements. The following factors help select a suitable model for efficient and reliable operation.
Why Choose Us ?
With over 15 years of experience in mining and screening equipment manufacturing, Zhongyi specializes in providing reliable wheeled mobile aggregate screening plants for quarrying, mining, construction, and recycling applications. Our advanced production facilities, strict quality control system, and ISO and CE certifications ensure durable equipment, stable performance, and consistent quality.
With equipment exported to more than 100 countries, Zhongyi understands different working conditions and project requirements worldwide. We provide customized screening solutions, spare parts supply, installation guidance, and technical support to help customers achieve efficient operation and long-term value.
Request a Customized Solution
Partner with Zhongyi for a wheeled mobile aggregate screening plant designed for fast relocation, efficient on-site material classification, and stable screening performance. Our rubber tyre mobile screening solutions help customers reduce material handling, improve production flexibility, and meet changing requirements in quarrying, mining, construction, and recycling projects.
Request a Custom Mobile Aggregate Screening Solution
Every project has different material, capacity, and site requirements. Zhongyi provides customized wheeled mobile aggregate screening plant solutions based on your application, including screening configuration, mobility needs, processing capacity, and layout requirements. Our engineering team can design suitable solutions for individual screening units or complete aggregate processing systems to improve efficiency and meet specific project goals.
Please Provide the Following Information:
FAQs
What is a wheeled mobile aggregate screening plant?
A wheeled mobile aggregate screening plant is a tyre-mounted screening system that integrates feeding, vibrating screening, and conveying functions into one unit. It is designed for on-site classification of aggregates, ores, sand, gravel, and construction waste, allowing operators to process materials directly at different job sites without installing permanent screening facilities.
What materials can a wheeled mobile screening plant process?
A wheeled mobile screening plant can process various materials, including crushed stone, limestone, granite, sand, gravel, ores, and recycled construction waste. The screen configuration can be customized according to material characteristics, feed size, moisture content, and required final product sizes to achieve efficient separation and stable screening performance.

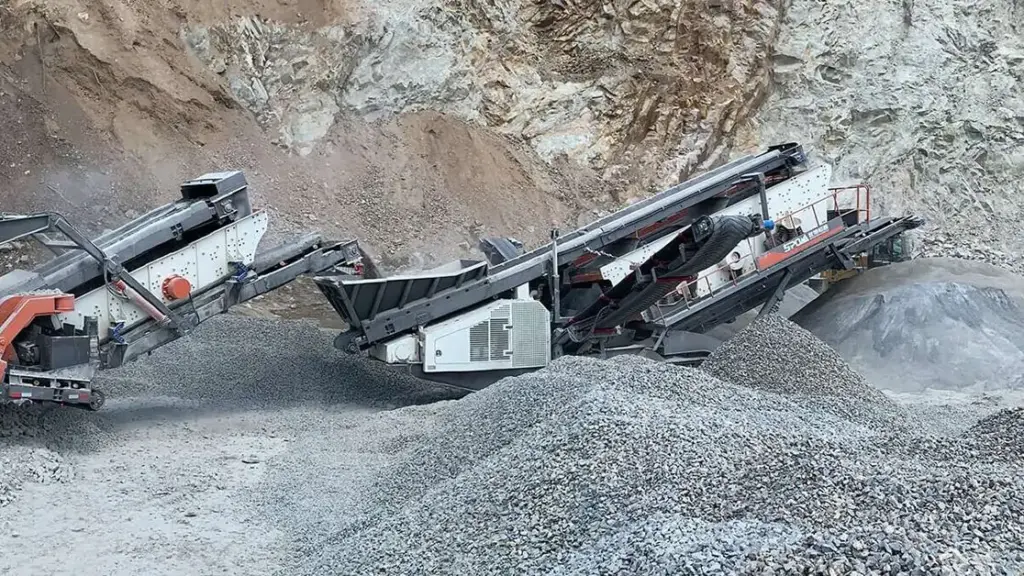

What is the difference between wheeled and tracked mobile screening plants?
Wheeled and tracked mobile screening plants are designed for different working conditions. Wheeled models are suitable for projects requiring frequent relocation and road transportation, while tracked models perform better on rough terrain and remote sites. The right choice depends on site accessibility, movement frequency, and overall project requirements.
What capacity can a wheeled mobile aggregate screening plant achieve?
The processing capacity depends on the model, screen size, material characteristics, and required output sizes. Zhongyi wheeled mobile aggregate screening plants typically provide capacities of around 80–300 t/h, with customized configurations available for larger production requirements and different aggregate processing applications.
Can a wheeled mobile screening plant work with crushers?
Yes. A wheeled mobile screening plant is commonly integrated with jaw crushers, impact crushers, cone crushers, feeders, and conveyors to form a complete mobile crushing and screening system. This combination allows operators to crush, classify, and produce multiple aggregate sizes efficiently at the same project site.
How quickly can a wheeled mobile screening plant be deployed?
A wheeled mobile screening plant is designed for fast transportation and quick setup compared with fixed screening systems. After being transported to the job site, the equipment can be positioned and prepared for operation in a short time, helping reduce installation delays and improve project flexibility.
What factors should I consider before buying a wheeled mobile screening plant?
Before purchasing a wheeled mobile screening plant, consider material type, feed size, required capacity, final product sizes, transportation conditions, and site layout. The correct screen configuration and equipment model should match your production goals to ensure efficient operation and avoid unnecessary investment.
Can Zhongyi customize a wheeled mobile aggregate screening plant?
Yes. Zhongyi provides customized wheeled mobile aggregate screening plant solutions based on material characteristics, production capacity, screening requirements, and working conditions. Our engineering team can recommend suitable configurations for individual screening units or complete aggregate processing systems to meet different project requirements.
