What Is a Tracked Impact Crusher?

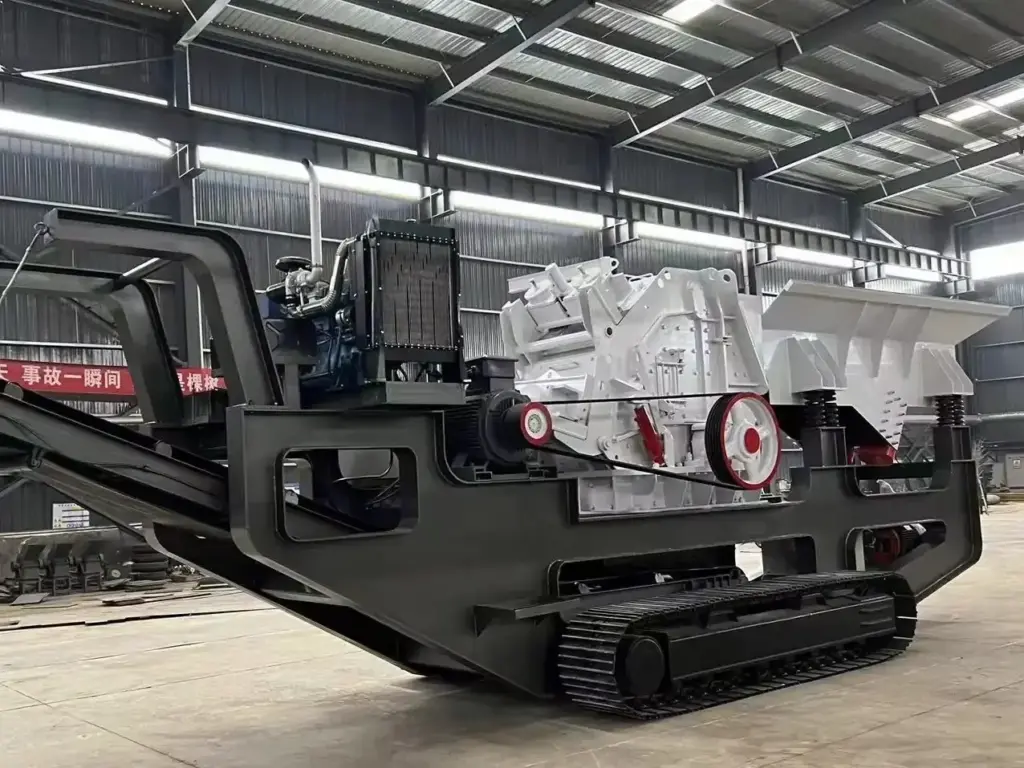

Tracked impact crusher, also known as a crawler mobile impact crusher, is a type of tracked mobile crusher designed for on-site crushing of limestone, concrete, aggregates, and construction waste. Mounted on a crawler chassis, it combines feeding, impact crushing, conveying, and intelligent control systems into one compact unit, allowing operators to process materials directly at the working site without fixed foundations or complex installation.
Unlike traditional stationary crushers, this mobile crushing plant can be quickly relocated between different production areas, making it suitable for quarrying, mining, demolition waste recycling, and aggregate production projects. A typical tracked impact crusher consists of a vibrating feeder, impact crusher, discharge conveyor, and control system, with capacity commonly ranging from 100–400 t/h depending on configuration. In complete crushing solutions, it can work together with jaw crushers for primary crushing, cone crushers for secondary or fine crushing, and European-style impact crushers for efficient aggregate shaping, providing flexible options for different material characteristics and production requirements.
Equipment Working Videos
How Does a Tracked Impact Crusher Work?

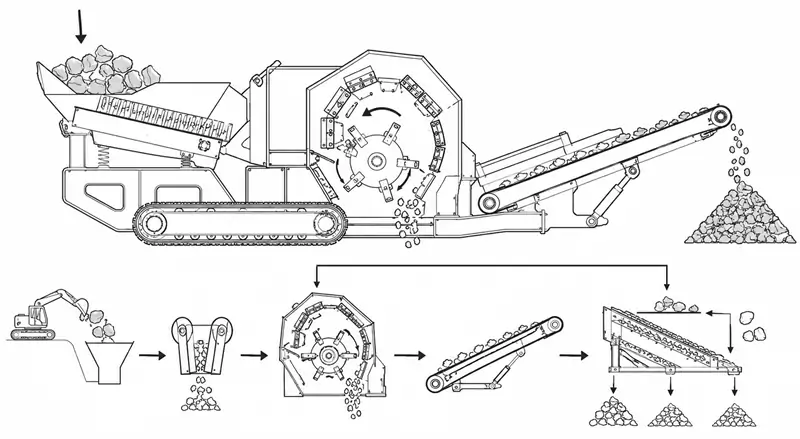

A tracked impact crusher works by using impact force to reduce rock, concrete, and other construction materials into smaller aggregate sizes. Material is fed into the hopper and regulated by a vibrating feeder before entering the impact chamber. Inside the chamber, a high-speed rotor equipped with blow bars strikes the material with strong impact energy, causing it to break against the impact plates. This multi-stage impact process helps achieve efficient size reduction and improved particle shape.
The crushing performance of a tracked mobile crusher depends on several factors, including rotor speed, blow bar condition, feed size, and impact plate adjustment. By controlling these parameters, operators can optimize crushing efficiency and maintain stable product quality for different applications such as quarry aggregates, limestone processing, and concrete recycling. The crushed material is then discharged through the onboard conveyor and can be transferred to a mobile screening system for further classification.
Mounted on a crawler chassis, the crusher can move directly between working areas without fixed foundations or complex installation. In a complete mobile crushing plant, a tracked impact crusher can operate independently or combine with feeders, screens, and conveyors to create a flexible production line. This makes it suitable for projects that require frequent relocation, on-site processing, and reduced material transportation costs.
Advantages of Tracked Impact Crusher
A tracked impact crusher combines crawler mobility, impact crushing performance, and integrated design in one unit. It is designed for quarrying, mining, and construction waste recycling applications where flexible deployment, efficient crushing, and reduced material handling are required.
Applications

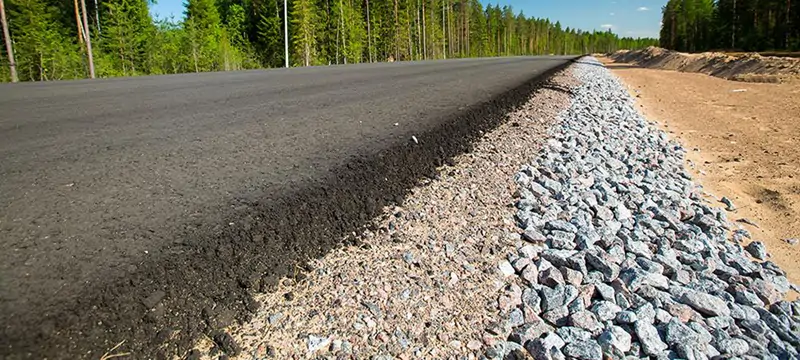

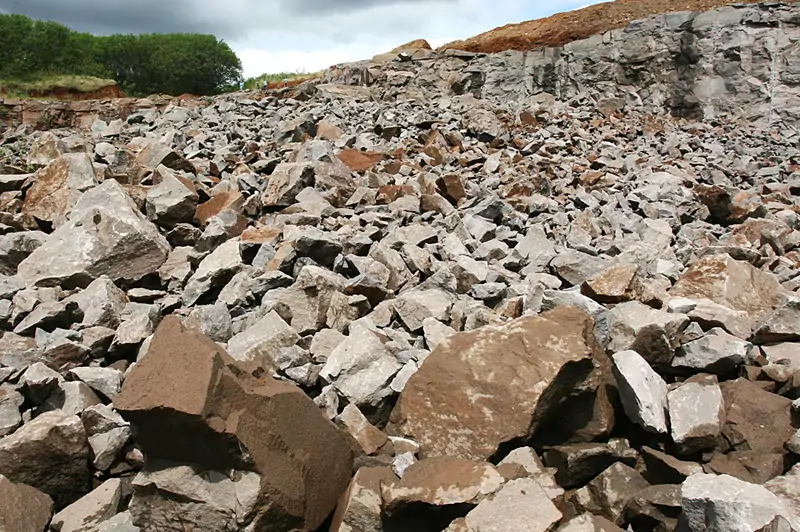

A tracked impact crusher is designed for on-site crushing and material processing in quarrying, mining, construction, and recycling projects. With a crawler-mounted chassis and integrated crushing system, it can move closer to the material source, reduce transportation distance, and provide flexible crushing solutions for projects with changing working conditions.
Specifications and Capacity Range
Tracked impact crushers are configured based on feed size, material hardness, required output, and production capacity. Different models are selected for quarrying, mining, and construction waste recycling projects. Zhongyi provides customized configurations to match specific site conditions and production requirements. The following specifications are for reference.
Core Technical Specifications
| Parameter | Range | Description |
|---|---|---|
| Processing Capacity | 80 – 450 tph | Varies with material type, feed size, and circuit design |
| Max Feed Size | ≤ 500 – 700 mm | Typically used after primary jaw crushing |
| Output Size | 0 – 60 mm | Adjusted by rotor speed and impact gap setting |
| Engine Power | 180 – 500 kW | Selected based on capacity and material hardness |
| Fuel Consumption | 18 – 45 L/h | Depends on load and working conditions |
| Operating Weight | 30 – 75 t | Includes main unit and integrated systems |
| Transport Dimensions | 11,500 – 19,500 × 3,000 × 3,800 mm | Varies by model configuration |
Note
Specifications may vary depending on material conditions, crushing circuit design, and optional system configurations. Final selection should be based on actual project requirements.
Tracked Impact Crusher vs Tracked Jaw Crusher vs Tracked Cone Crusher
In mobile crushing projects, these three equipment types are commonly evaluated during early-stage selection. The choice depends on feed size, material hardness, required output shape, and whether the process focuses on primary reduction or final aggregate quality. Zhongyi supplies all three configurations for quarrying, mining, and recycling applications.Below is a comparison of their main differences in real working conditions.
Practical Equipment Comparison
| Item | Tracked Impact Crusher | Tracked Jaw Crusher | Tracked Cone Crusher |
|---|---|---|---|
| Crushing Stage | Secondary / shaping | Primary crushing | Secondary / tertiary crushing |
| Working Principle | High-speed rotor impact | Compression between jaw plates | Layered compression in crushing chamber |
| Feed Size | Medium feed | Large feed (up to 700–800 mm) | Pre-crushed material |
| Output Characteristics | Cubic, well-shaped aggregate | Coarse, irregular particles | Well-graded, stable output |
| Capacity Range | 80–450 tph | 100–600 tph | 80–500 tph |
| Suitable Materials | Limestone, construction waste, mixed feed | Hard rock, blasted stone | Hard and abrasive rock |
| Mobility Use Case | Recycling sites, flexible layouts | Primary crushing stage in quarry | Secondary crushing lines |
| Wear Parts | Medium (blow bars, liners) | Lower wear rate | Medium to high wear |
| Main Role in Line | Shaping + reduction | Primary size reduction | Final grading control |
| Investment Logic | One-stage mobile shaping solution | Feed size reduction efficiency | Final product quality control |
Selection Guide
Tracked jaw crusher is typically used for primary crushing where large feed sizes need to be reduced. Tracked cone crusher is applied in secondary or tertiary stages where stable grading and higher aggregate quality are required. Tracked impact crusher is selected when both size reduction and aggregate shaping are required in a single mobile unit, especially in recycling and medium-hard rock applications.
Project Case
Project Case – Construction Waste Recycling Line, Southeast Asia
A 180–220 tph construction waste recycling project in Southeast Asia required on-site processing of concrete blocks and mixed demolition debris. The site conditions changed frequently, with limited space for fixed installation and strict requirements for reducing transport distance and disposal cost.
Zhongyi supplied a Tracked Impact Crusher production line configured with a vibrating feeder and discharge conveyor. The unit processed reinforced concrete and brick waste into 0–40 mm recycled aggregates for road base and backfill use. The system was deployed directly at demolition zones and relocated between working areas within the site.
Main configuration:
- Equipment: Tracked Impact Crusher (Zhongyi ECO series)
- Capacity: 180–220 tph
- Feed material: Construction waste (concrete, brick, mixed debris)
- Output size: 0–40 mm recycled aggregate
- Application: Road base material / site backfill
- Setup: Integrated mobile crushing line (see: Mobile Crushing Plant Solution)
After commissioning, the project reduced material transport distance by over 60% and stabilized continuous on-site recycling operations without fixed foundations.
Why Choose Zhongyi?
Zhongyi Mining Machinery (Zhengzhou Zhongyi Mining Machinery Co., Ltd.) is an experienced mobile crusher manufacturer specializing in tracked crushing and screening equipment for mining, quarrying, aggregate production, and recycling applications. Established in 2010, the company operates a 40,000+ m² manufacturing facility with advanced machining and fabrication equipment. From structural fabrication and component processing to assembly and testing, production is managed under ISO9001:2015 quality standards.
Zhongyi develops customized tracked impact crusher solutions according to material characteristics, production capacity, and site conditions. The product range covers standalone mobile crushers and complete mobile crushing plants integrating feeders, crushers, screens, and conveyors. These systems are designed for processing applications such as limestone, granite, basalt, concrete, and construction waste recycling.
With experience in international projects, Zhongyi provides support throughout the equipment lifecycle, including project consultation, configuration selection, installation guidance, and spare parts supply. The company focuses on delivering reliable crawler crushing solutions with stable performance, flexible operation, and long-term value for mining and recycling customers.
Request a Customized Solution
Partner with Zhongyi for a tracked impact crusher designed for on-site crushing, efficient size reduction, and consistent aggregate shaping under quarry, mining, and construction waste recycling conditions.
Customize Tracked Impact Crusher
Tracked impact crushers are configured for projects requiring flexible on-site crushing and aggregate shaping under changing material and site conditions. Zhongyi provides customized solutions that can operate as standalone units or be integrated into mobile crushing lines with jaw crushers for primary crushing or cone crushers for secondary processing, covering quarry, mining, and construction waste recycling applications.
Please Provide the Following Information:
FAQs
What is a tracked impact crusher used for?
A tracked impact crusher is used for on-site crushing of limestone, concrete, construction waste, and medium-hard rocks. It is widely applied in quarrying, mining, recycling, and infrastructure projects where flexible mobility and high-quality aggregates are required. The crawler-mounted design allows operators to process materials closer to the source and reduce transportation costs.
What materials can a tracked impact crusher process?
A tracked impact crusher can process limestone, granite, basalt, concrete, asphalt, and other medium-hard materials. The actual feed size depends on the crusher model, upstream equipment, and material characteristics. It is commonly selected for applications requiring efficient reduction and well-shaped final aggregates.
Is a tracked impact crusher suitable for construction waste recycling?
Yes. It is widely used for recycling concrete, asphalt, and demolition waste. The impact crushing process helps produce cubic-shaped recycled aggregates for road base, backfilling, and other construction applications. Processing materials directly at demolition or recycling sites can reduce hauling requirements and improve overall project efficiency.
What is the typical capacity range of a tracked impact crusher?
The capacity of a tracked impact crusher depends on the model, material properties, feed size, and required output size. Typical production capacity ranges from around 80 to 450 tons per hour. Proper configuration of the feeder, crusher, and screening system helps achieve stable production performance.
How mobile is a tracked impact crusher?
A tracked impact crusher uses a crawler chassis for self-propelled movement between working areas. It can operate on uneven terrain and does not require additional towing equipment for short-distance relocation. This makes it suitable for quarries, demolition sites, and projects where production locations change frequently.
What maintenance does a tracked impact crusher require?
Regular maintenance mainly focuses on wear parts such as blow bars, impact plates, and liners. Inspection of the crushing chamber, hydraulic system, and conveyor components helps maintain stable operation. Replacement cycles depend on material abrasiveness, production hours, and operating conditions.
What equipment can work with a tracked impact crusher?
A tracked impact crusher can be integrated with feeders, mobile screens, conveyors, and other crushers to build complete crushing and screening systems. Depending on material hardness and production requirements, it can work with jaw crushers for primary crushing or screening equipment for closed-circuit aggregate production.
What customization options are available from Zhongyi?
Zhongyi provides customized tracked crushing solutions based on material type, capacity requirements, output size, and site conditions. Configuration options include different feeding systems, screening modules, conveyor layouts, power options, and complete mobile crushing plant designs for quarrying, mining, and recycling applications.
